72062 (264-6) - Toro Yard Tractor (SN: 059000001 - 059000227) (1995) Hydro Brake Parts Diagram

Yard Tractor

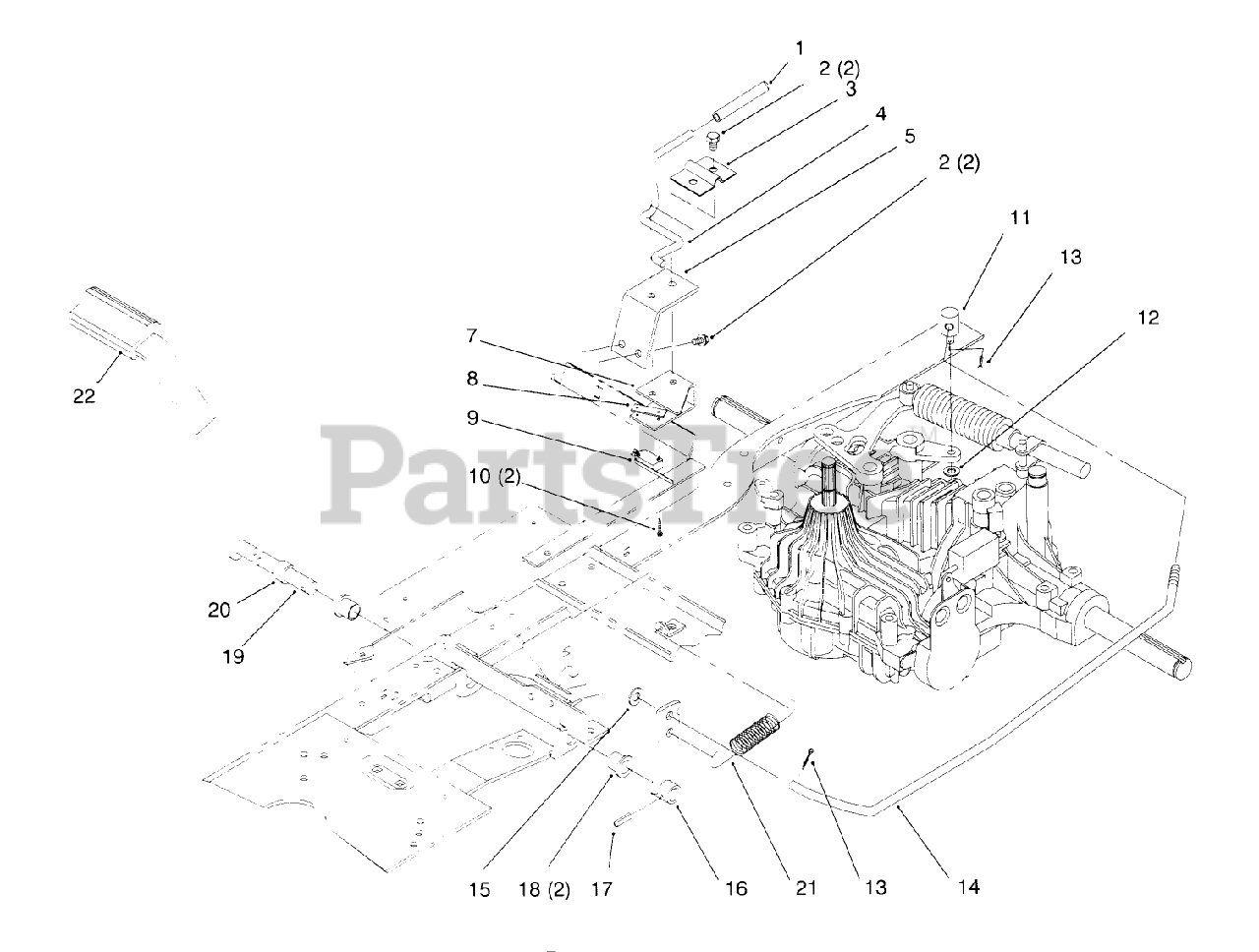

Hydro Brake Parts Diagram

  • Title

1

Toro 92-7009

GRIP - PARKING BRAKE

$

$

Not available

2

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

3

Toro 92-7000-03

BRACKET-PARKING BRAKE

$

$

Not available

4

Toro 93-3167

ROD - PARKING BRAKE

$

$

Not available

5

Toro 92-7004-03

SUPPORT-P. BRAKE

$18.99

$

Usually ships in 3-6 days

0

7

Toro 93-0520-03

BRACKET-BRAKE SWITCH

$

$

Not available

8

Toro 3290-354

NUT-SPEED

$11.99

$

Usually ships in 3-6 days

0

9

Toro 88-9930

SWITCH-MICRO

$43.99

$

Usually ships in 3-6 days

0

10

Toro 147665

See Supercession: 95-3003
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 92-6968

TRUNNION - BRAKE

$51.99

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 92-6988

DISCONTINUED

$

$

Not available

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 92-6948-03

See Supercession: 94-1722-03
(Superseded to 94-1722-03)

$

$

Not available

17

Toro 32121-69

PIN-SPRING

$2.49

$

In Stock, only 3 left!

0

18

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 4 left!

0

19

Toro 92-6951-03

See Supercession: 94-4233-03
(Superseded to 94-4233-03)

$

$

Not available

20

Toro 92-6982

SPACER-BRAKE

$

$

Not available

21

Toro 93-0540

DISCONTINUED

$

$

Not available

22

Toro 65-2920

PAD-PEDAL

$43.99

$

Usually ships in 3-6 days

0
