72063 (264-H) - Toro Yard Tractor (SN: 059000001 - 059000498) (1995) FRAME Parts Diagram

Yard Tractor

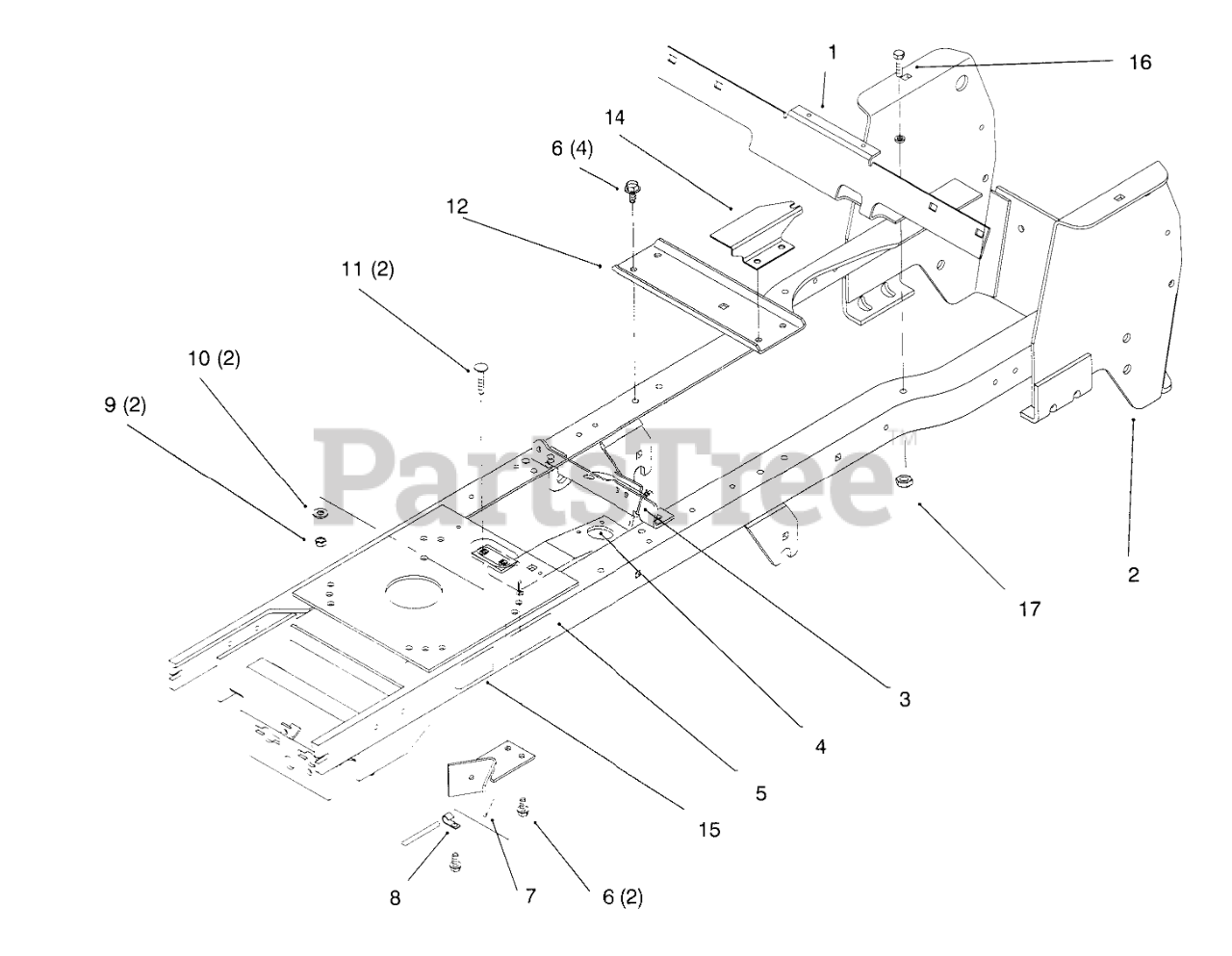

FRAME Parts Diagram

  • Title

1

Toro 92-6674-03

SUPPORT - FENDER
(Superseded to 100-1341-03)

$

$

Not available

2

Toro 93-0522

Frame W.a.
(Superseded to 99-6772-03)

$1585.99

$

Usually ships in 3-6 days

0

3

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

4

Toro 92-6992-03

STEERING BRKT WA

$

$

Not available

5

Toro 79-6730

Decal-Belt Install (Only On: 72042,72043)

$

$

Not available

5

Toro 79-7020

Decal-Belt Install (Only On: 72062,72063,72103)
(Superseded to 93-7324)

$

$

Not available

6

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

7

Toro 78-2491-03

WLDMT-PTO STOP

$49.99

$

Usually ships in 3-6 days

0

8

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

12

Toro 92-6868-03

BRACKET-IDLER PLATE

$41.99

$

Usually ships in 3-6 days

0

14

Toro 92-6964-03

BRACKET-HOC GAGE

$

$

Not available

15

Toro 322-5

Screw-HH (Only On: 72043,72063,72103)

$0.99

$

In Stock, Qty 20+

0

15

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.99

$

In Stock, only 1 left!

0

16

Toro 322-5

Screw-HH (Only On: 72043,72063,72103)

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

Nut-Lock (Only On: 72043,72063,72103)

$2.49

$

In Stock, Qty 20+

0
