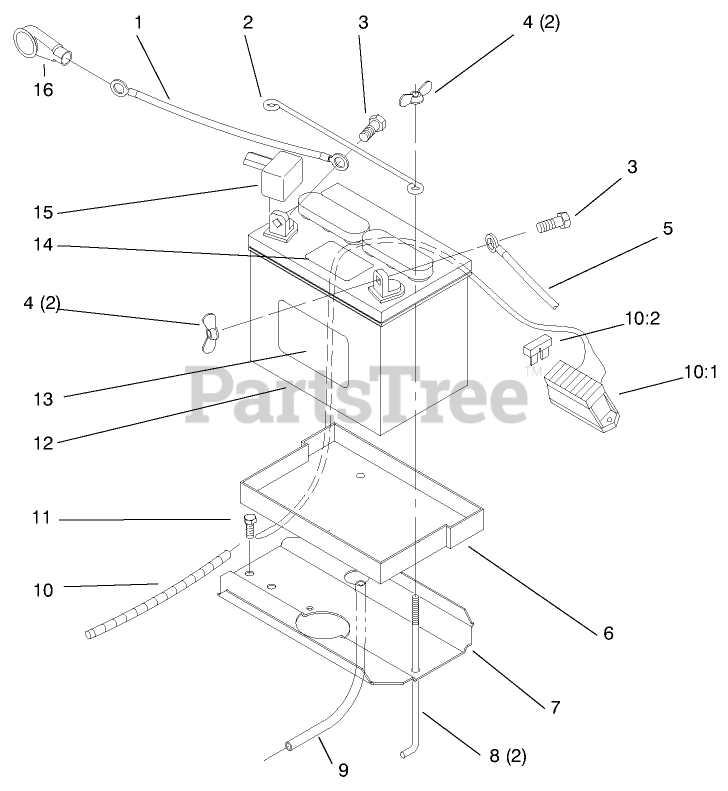

72064 (265-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) Battery Parts Diagram

Lawn & Garden Tractor

Battery Parts Diagram

  • Title

1

Toro 92-6990

WIRE -10" RED

$40.99

$

Usually ships in 3-6 days

0

2

Toro 117316

ROD-BATTERY HOLD DWN

$31.99

$

In Stock, only 1 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

5

Toro 111078

WIRE -BLACK

$28.99

$

Usually ships in 3-6 days

0

6

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 2 left!

0

7

Toro 78-6820-03

PLATE-BATTERY

$

$

Not available

8

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

9

Toro 114720

TUBE-21" BATTERY DRAIN

$8.49

$

Usually ships in 3-6 days

0

10

Toro 94-2862

HARNESS - WIRE 15H

$

$

Not available

10:1

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$21.99

$

In Stock, only 4 left!

0

10:2

Toro 110928

FUSE-BLADE, 5 AMP

$8.99

$

Usually ships in 3-6 days

0

10:2

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 5

0

10:2

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, only 2 left!

0

10:2

Toro NN10277

FUSE-30 AMP

$

$

Not available

11

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

12

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

13

Toro 93-6668

DECAL-BATTERY

$21.99

$

Usually ships in 3-6 days

0

14

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

15

Toro 28-8080

BOOT-TERMINAL

$26.99

$

Usually ships in 3-6 days

0
