72071 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) CRANKCASE Parts Diagram

Lawn & Garden Tractor

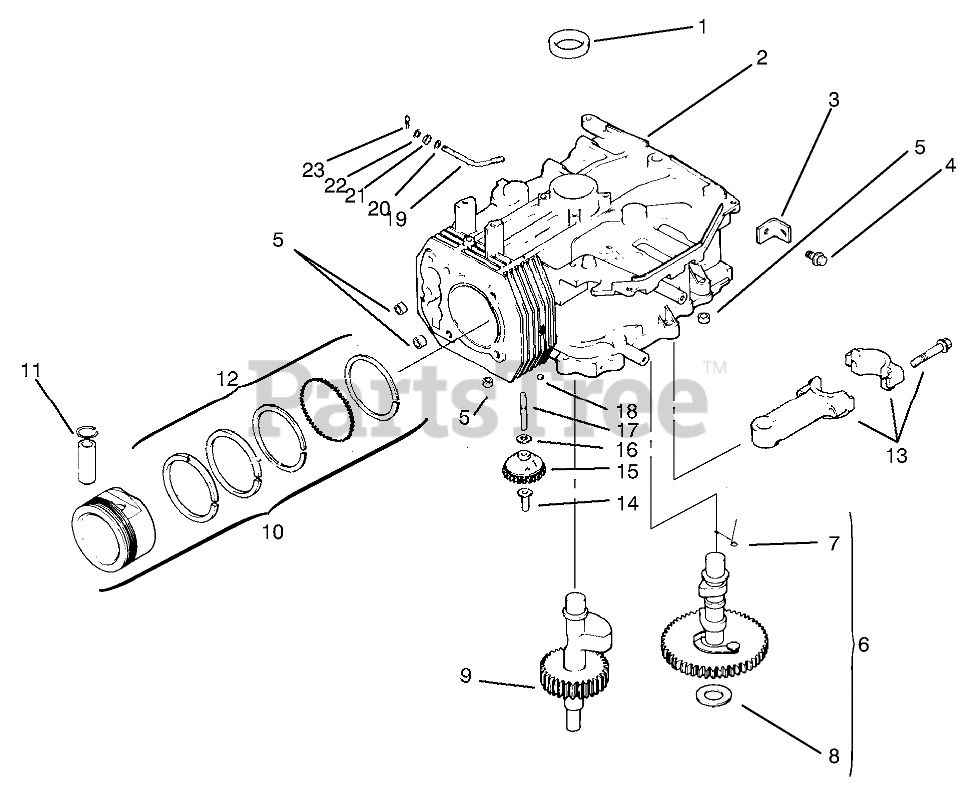

CRANKCASE Parts Diagram

  • Title

1

1203203

Seal-Crankshaft (Only On: 92003, 92043)

$

$

Not available

2

1252243

Block-Short (Only On: 92003)

Note: Not illustrated

$

$

Not available

2

Kohler 12 522 18

Block-Short (Only On: 92043)

$1932.99

$

Usually ships in 2-5 days

0

3

1244502

Strap-Lifting (Only On: 92003, 92043)

$

$

Not available

4

Kohler M-0839025

Screw M8x1.25x22 (Only On: 92003, 92043)
(Superseded to M-839025)

$2.49

$

In Stock, only 3 left!

0

5

1238003

Dowel-Locating (Only On: 92003, 92043)

$

$

Not available

6

1275549

Kit-Camshaft INC 7-8 (Only On: 92043)

$

$

Not available

6

1275550

Kit-Camshaft INC 7-8 (Only On: 92003)

$

$

Not available

7

1208918

Spring-Actuating (Only On: 92003, 92043)

Note: Included in a service kit or in an assembly

$

$

Not available

8

Kohler 12 422 07

Shim-Camshaft A/R (Only On: 92003, 92043)
(Superseded to 12 422 07-S)

Note: Included in a service kit or in an assembly

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 08

Shim-Camshaft A/R (Only On: 92003, 92043)
(Superseded to 12 422 08-S)

Note: Included in a service kit or in an assembly

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 09

Shim-Camshaft A/R (Only On: 92003, 92043)
(Superseded to 12 422 09-S)

Note: Included in a service kit or in an assembly

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 10

Shim-Camshaft A/R (Only On: 92003, 92043)
(Superseded to 12 422 10-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 11

Shim-Camshaft A/R (Only On: 92003, 92043)
(Superseded to 12 422 11-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 12

Shim-Camshaft A/R (Only On: 92003, 92043)
(Superseded to 12 422 12-S)

Note: Included in a service kit or in an assembly

$2.99

$

In Stock, only 1 left!

0

8

Kohler 12 422 13

Shim-Camshaft A/R (Only On: 92003, 92043)
(Superseded to 12 422 13-S)

Note: Included in a service kit or in an assembly

$2.99

$

Usually ships in 2-5 days

0

9

1214427

Shaft-Balance (Only On: 92003, 92043)

$

$

Not available

10

1287407

Piston ASM STD Incl 11-2 (Only On: 92003, 92043)

$

$

Not available

10

1287408

Piston ASM .25 Incl 11-2 (Only On: 92003, 92043)

$

$

Not available

10

1287409

Piston ASM .50 Incl 11-2 (Only On: 92003, 92043)

$

$

Not available

11

1201802

Retainer-Piston Pin (Only On: 92003, 92043)

$

$

Not available

12

1201807

Ring Set STD (Only On: 92003, 92043)

$

$

Not available

12

1201808

Ring Set .25 (Only On: 92003, 92043)

$

$

Not available

12

1201809

Ring Set .50 (Only On: 92003, 92043)

$

$

Not available

13

1206705

Rod Connecting STD (Only On: 92003, 92043)

$

$

Not available

13

1206706

Rod Connecting .25 (Only On: 92003, 92043)

$

$

Not available

14

Kohler 12 380 01

Pin-Governor Regulating (Only On: 92003, 92043)
(Superseded to 12 380 01-S)

$3.49

$

In Stock, Qty 16

0

15

1204305

Gear-Governor ASM (Only On: 92003, 92043)

$

$

Not available

16

Kohler M-0631005

Washer-Governor (Only On: 92003, 92043)
(Superseded to M-631005)

$2.49

$

In Stock, Qty 8

0

17

Kohler 12 144 02

Shaft-Governor Gear (Only On: 92003, 92043)
(Superseded to 12 144 02-S)

$4.49

$

In Stock, Qty 6

0

18

Kohler 52 139 09

Plug-Cup (Only On: 92003, 92043)
(Superseded to 52 139 09-S)

$4.99

$

In Stock, Qty 9

0

19

1275564

Kit-Governos Cross Incl 23 (Only On: 92003, 92043)

$

$

Not available

20

Kohler X-25-102

Washer-Flat (Only On: 92003, 92043)
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 10

0

21

1203201

Seal-Governor Shaft (Only On: 92003, 92043)

$

$

Not available

22

Kohler M-0631015

Washer-Governor Shaft (Only On: 92003, 92043)
(Superseded to M-631015)

$2.49

$

In Stock, Qty 10

0

23

1215405

Pin-Governor Hitch (Only On: 92003, 92043)

$

$

Not available

1272259

Gasket Set (Only On: 92043)

Note: Not illustrated

$

$

Not available

1275501

Gasket Set (Only On: 92003)

Note: Not illustrated

$

$

Not available
