72071 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) CYLINDER HEAD/VALVE/BREATHER Parts Diagram

Lawn & Garden Tractor

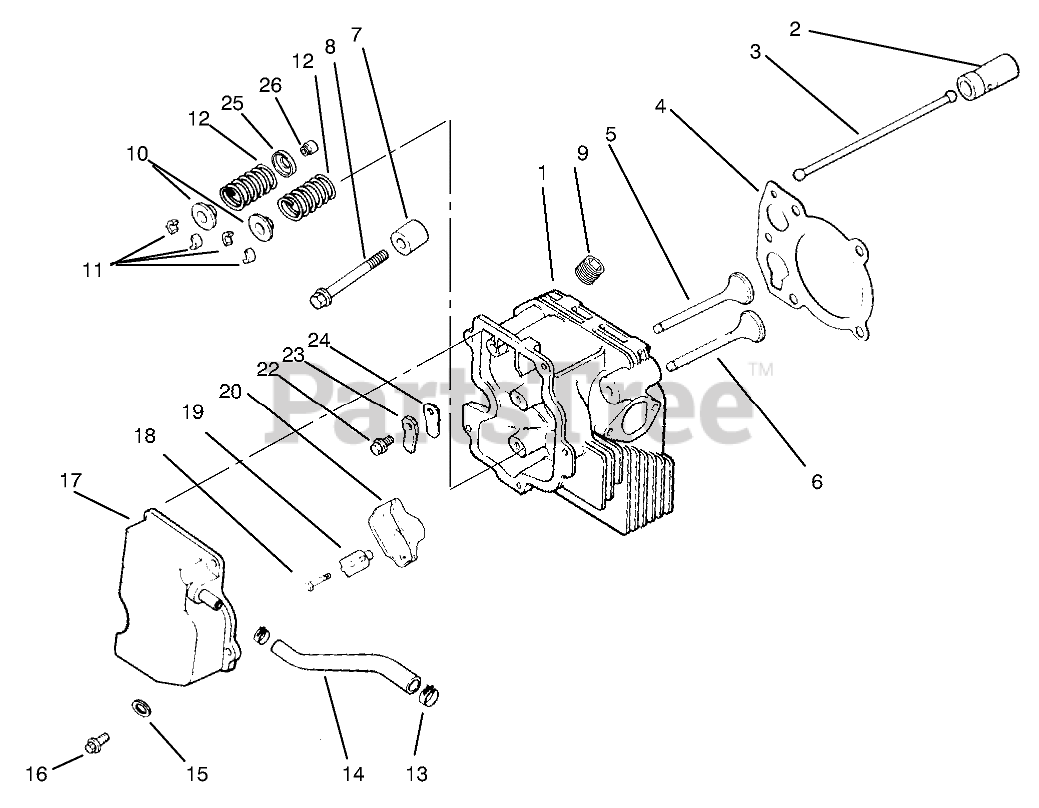

CYLINDER HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

1231815

Cylinder Head (Only On: 92003, 92043) On: 92003, 92043)

$

$

Not available

2

1235102

Lifter-Valve (Only On: 92003, 92043)

$

$

Not available

3

1241101

Rod-Push (Only On: 92003, 92043)

$

$

Not available

4

1204108

Gasket-Cylinder Head (Only On: 92003,

$

$

Not available

4

1204110

Gasket-Cylinder Head (Only On: 92043,

$

$

Not available

5

1201701

Valve-Intake STD (Only On: 92003, 92043)

$

$

Not available

5

1201702

Valve-Intake .25 (Only On: 92003, 92043)

$

$

Not available

6

1201601

Valve-Exhaust STD (Only On: 92003, 92043)

$

$

Not available

6

1201602

Valve-Exhaust .25 (Only On: 92003, 92043)

$

$

Not available

8

1211213

Spacer-Head Bolt Exhaust (Only On: 92003, 92043)

$

$

Not available

9

1208615

Screw M10x1.5x80 (Only On: 92003, 92043)

$

$

Not available

9

Kohler X-75-23

Plug (Only On: 92003, 92043)
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 3 left!

0

10

Kohler 12 173 01

Cap-Valve Spring (Only On: 92003, 92043)
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 7

0

11

Kohler 12 755 03

Kit-Retainer (Only On: 92003, 92043)
(Superseded to 12 755 03-S)

$5.99

$

In Stock, Qty 8

0

12

1208901

Spring-Valve (Only On: 92003, 92043)

$

$

Not available

13

Kohler X-426-9

Clamp-Hose (Only On: 92003, 92043)
(Superseded to X-426-9-S)

$4.99

$

In Stock, Qty 6

0

14

1232603

Hose-Breather (Only On: 92003, 92043)

$

$

Not available

15

1246805

Washer-Flat (Only On: 92003, 92043)

$

$

Not available

16

Kohler M-0645020

Screw-HH M6x1.0x20 (Only On: 92003, 92043)
(Superseded to M-645020)

$2.49

$

In Stock, Qty 20+

0

17

1209607

Cover-Valve w/Nipple (Only On: 92003, 92043)

$

$

Not available

18

Kohler M-0640034

Screw M6x1.0x34 (Only On: 92003, 92043)

$

$

Not available

19

1259903

Pivot-Rocket Arm (Only On: 92003, 92043)

$

$

Not available

20

Kohler 25 186 01

Arm-Rocker (Only On: 92003, 92043)
(Superseded to 25 186 01-S)

$12.99

$

In Stock, only 2 left!

0

22

Kohler M-0545010

Screw M5x0.8x10 (Only On: 92003, 92043)
(Superseded to M-545010)

$4.49

$

In Stock, Qty 13

0

23

Kohler 12 018 01

Retainer-Breather Reed (Only On: 92003, 92043)
(Superseded to 66 018 04-S)

$4.99

$

In Stock, Qty 7

0

24

2440202

Reed-Breather (Only On: 92003, 92043)

$

$

Not available

25

Kohler 235011

Retainer-Spring (Only On: 92003, 92043)
(Superseded to 235011-S)

$6.49

$

In Stock, Qty 14

0

26

Kohler 24 032 05

Seal-Valve Stem (Only On: 92003, 92043)
(Superseded to 24 032 05-S)

$11.99

$

In Stock, Qty 20+

0

1275563

Kit-Cylinder Head Incl. 1-6, & 18-21

$

$

Not available
