72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 412441623 - 412802932) Engine Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

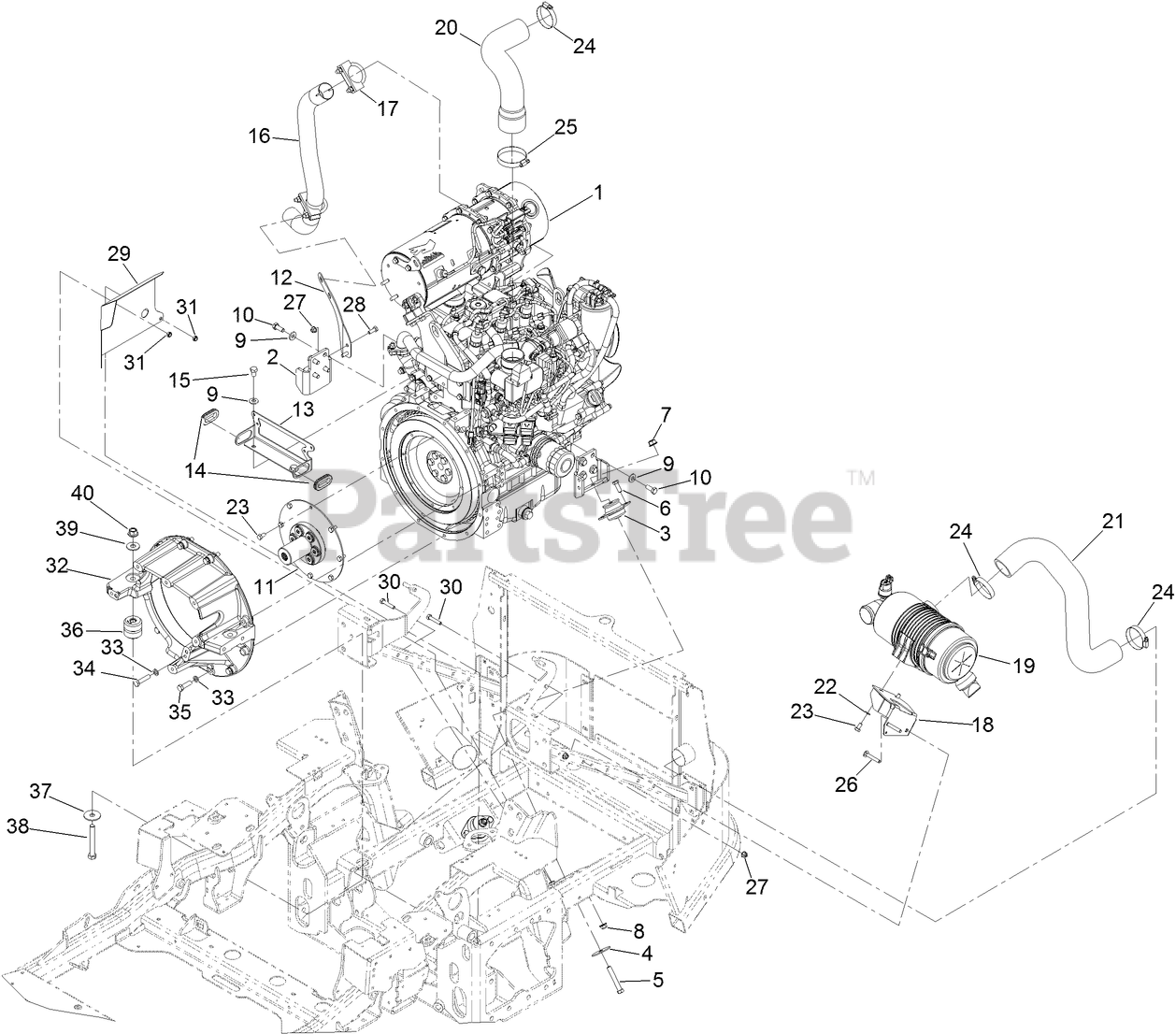

Engine Assembly Parts Diagram

  • Title

1

Toro 138-6927

ENGINE-YANMAR, 3TNV88C-DTR5

$22386.99

$

Usually ships in 3-6 days

0

2

Toro 120-9180-03

MOUNT-MOTOR, UPPER

$63.99

$

Usually ships in 3-6 days

0

3

Toro 142-8456

MOUNT- ISOLATOR, ENGINE

$68.99

$

In Stock, only 2 left!

0

4

Toro 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

5

Toro 324-11

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 114-8417

NUT-HF, NI

$2.99

$

In Stock, only 4 left!

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

11

Toro 120-9131

COUPLING-FLYWHEEL

$663.99

$

Usually ships in 3-6 days

0

12

Toro 126-8587-03

BRACKET-MOUNT

$18.99

$

Usually ships in 3-6 days

0

13

Toro 126-7602-03

BRACKET-GUIDE

$38.99

$

Usually ships in 3-6 days

0

14

Toro 240-7

GROMMET-RUBBER

$20.99

$

Usually ships in 3-6 days

0

15

Toro 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

16

Toro 126-7652

TUBE-EXHAUST

$98.99

$

Usually ships in 3-6 days

0

17

Toro 18-2130

CLAMP

$39.99

$

Usually ships in 3-6 days

0

18

Toro 126-8730-03

BRACKET-CLEANER, AIR

$48.99

$

Usually ships in 3-6 days

0

19

Toro 142-3554

ASM, HDAC

$203.99

$

In Stock, only 1 left!

0

20

Toro 120-9199

HOSE-AIR

$62.99

$

Usually ships in 3-6 days

0

21

Toro 120-9177

HOSE-AIR

$83.99

$

Usually ships in 3-6 days

0

22

Toro 3290-475

WASHER-BELLEVILLE

$3.49

$

Usually ships in 3-6 days

0

23

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

24

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

25

Toro 2412-125

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

26

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

27

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 135-3946-03

DEFLECTOR-AIR

$26.99

$

Usually ships in 3-6 days

0

30

Toro 322-8

SCREW-HH

$3.99

$

In Stock, Qty 6

0

31

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

32

Toro 125-2836

HOUSING-FLYWHEEL

$956.99

$

Usually ships in 3-6 days

0

33

Toro 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

34

Toro 33115-045

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

35

Toro 33115-035

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

36

Toro 142-8457

MOUNT-ISOLATOR

$62.99

$

Usually ships in 3-6 days

0

37

Toro 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

0

38

Toro 325-15

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

39

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

40

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 11

0
