72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 412802933 - 413999999) Deck Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

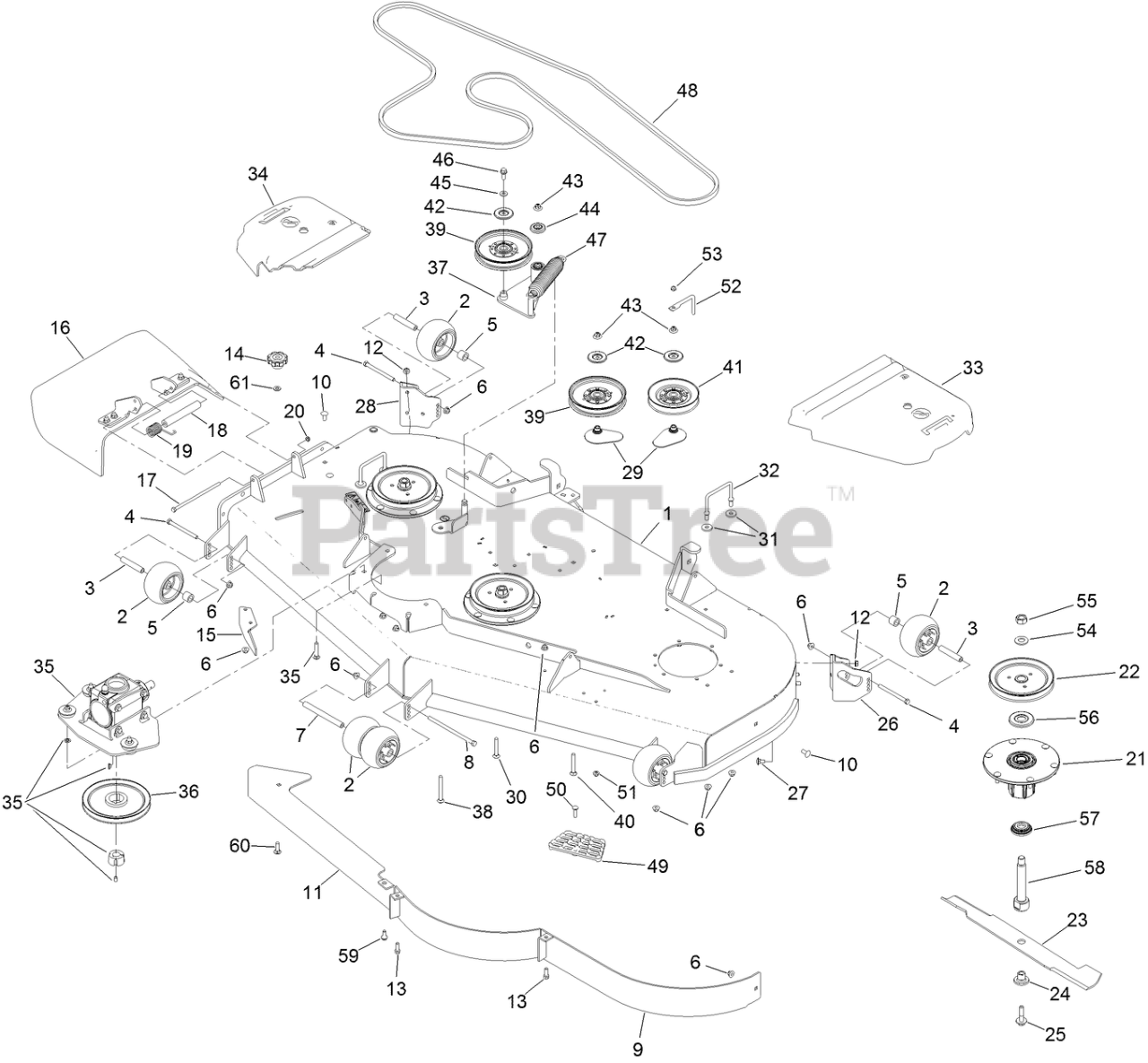

Deck Assembly Parts Diagram

  • Title

1

Toro 140-0960

DECK DECAL ASM

$3531.99

$

Usually ships in 3-6 days

0

2

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

3

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

4

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

5

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

8

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

9

Toro 114-5843-01

BAFFLE

$317.99

$

Usually ships in 3-6 days

0

10

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

11

Toro 138-6051-01

PLATE-BAFFLE

$126.99

$

Usually ships in 3-6 days

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 109-1092

KNOB

$8.99

$

Usually ships in 3-6 days

0

15

Toro 106-3216-01

BAFFLE-DISCHARGE

$26.99

$

In Stock, only 2 left!

0

16

Toro 108-2792

RUBBER DEFLECTOR ASM

$241.99

$

In Stock, Qty 5

0

17

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 10

0

18

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

19

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 5

0

20

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

21

Toro 137-9780

SPINDLE ASM

$156.99

$

In Stock, Qty 10

0

22

Toro 138-6059

SHEAVE-DRIVE, BLADE

$30.99

$

In Stock, only 2 left!

0

23

Toro 140-1238

BLADE

$39.99

$

In Stock, Qty 20+

0

24

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

25

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

26

Toro 106-7354-01

MOUNT-WHEEL, LH

$113.99

$

In Stock, only 1 left!

0

27

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

28

Toro 106-7355-01

MOUNT-WHEEL, RH

$113.99

$

Usually ships in 3-6 days

0

29

Toro 109-2872

SPACER-PULLEY

$23.99

$

In Stock, Qty 20+

0

30

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

31

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

32

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 4 left!

0

33

Toro 109-6938

COVER-BELT, LH

$102.99

$

In Stock, Qty 19

0

34

Toro 126-3527

SHIELD-BELT

$125.99

$

Usually ships in 3-6 days

0

35

GEARBOX ASM

Note: Not serviced separately

$

$

Not available

36

Toro 107-4767

PULLEY

$267.99

$

Usually ships in 3-6 days

0

37

Toro 126-2585

IDLER ARM ASM

$203.99

$

In Stock, only 2 left!

0

38

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$8.49

$

In Stock, only 2 left!

0

39

Toro 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 20+

0

40

Toro 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 5

0

41

Toro 126-8766

IDLER V

$100.99

$

Usually ships in 3-6 days

0

42

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

43

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

44

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 8

0

45

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

46

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

47

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

48

Toro 126-6855

BELT-V

$183.99

$

Usually ships in 3-6 days

0

49

Toro 126-4781-03

STEP-DECK

$30.99

$

In Stock, only 2 left!

0

50

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

51

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

52

Toro 135-0362

GUIDE-BELT

$27.99

$

Usually ships in 3-6 days

0

53

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

54

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

55

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

56

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 12

0

57

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, Qty 12

0

58

138-6045

SHAFT-SPINDLE

$

$

Not available

59

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 11

0

60

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

61

Toro 100-4852

WASHER-HARDENED

$5.99

$

Usually ships in 3-6 days

0
