72081 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) BRAKE PEDAL ASSEMBLY Parts Diagram

Yard Tractor

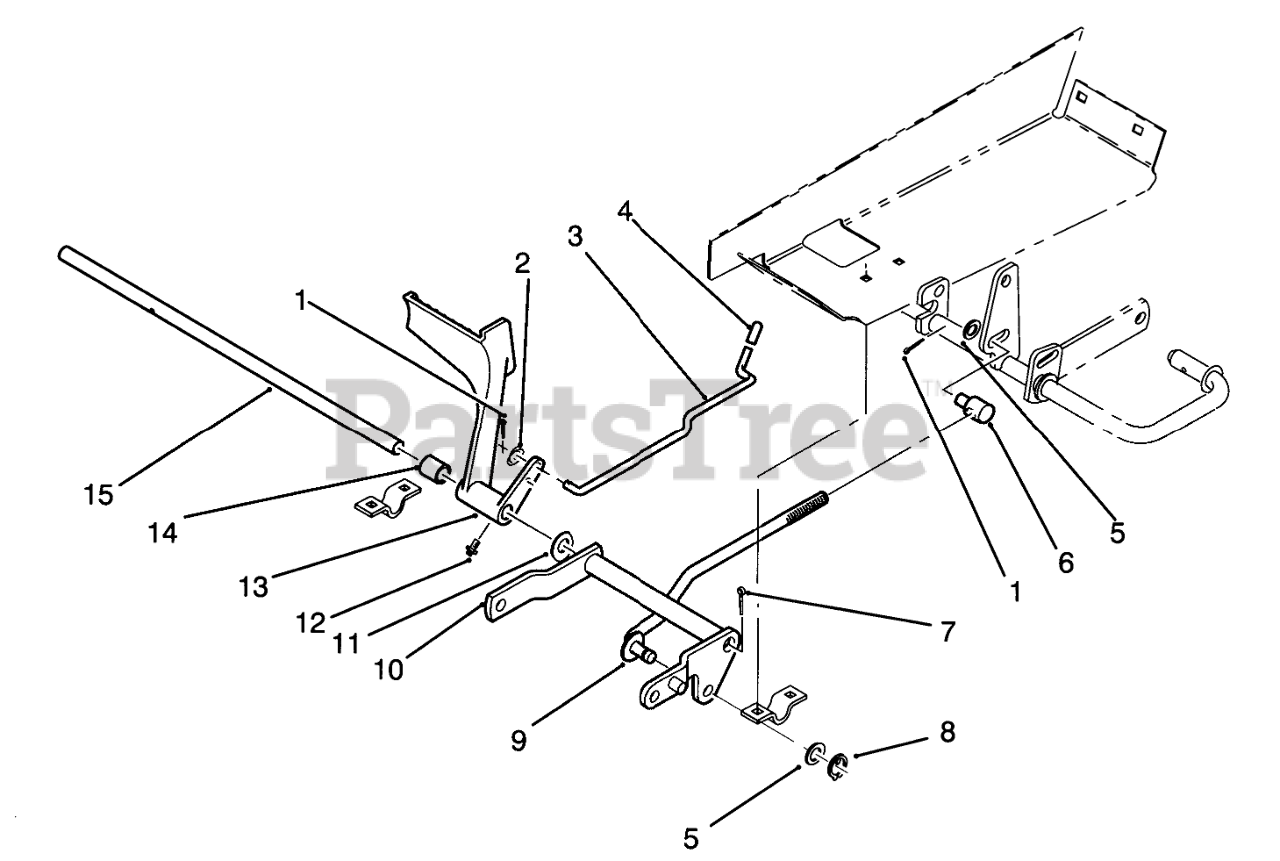

BRAKE PEDAL ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 78-6120

ROD-BRAKE LOCK

$

$

Not available

4

Toro 111439

GRIP

$

$

Not available

5

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

7

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

8

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 19

0

9

Toro 78-2431

ROD

$

$

Not available

10

Toro 78-2111

Arm
(Superseded to 92-6855-03)

$

$

Not available

11

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 15

0

12

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

13

Toro 117234

Pedal-Brake
(Superseded to 93-3228)

$173.99

$

Usually ships in 3-6 days

0

14

Toro 110015

SPACER

$

$

Not available

15

Toro 78-6831

SHAFT

$90.99

$

Usually ships in 3-6 days

0
