72081 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) Engine Toro Power Plus 2 Parts Diagram

Yard Tractor

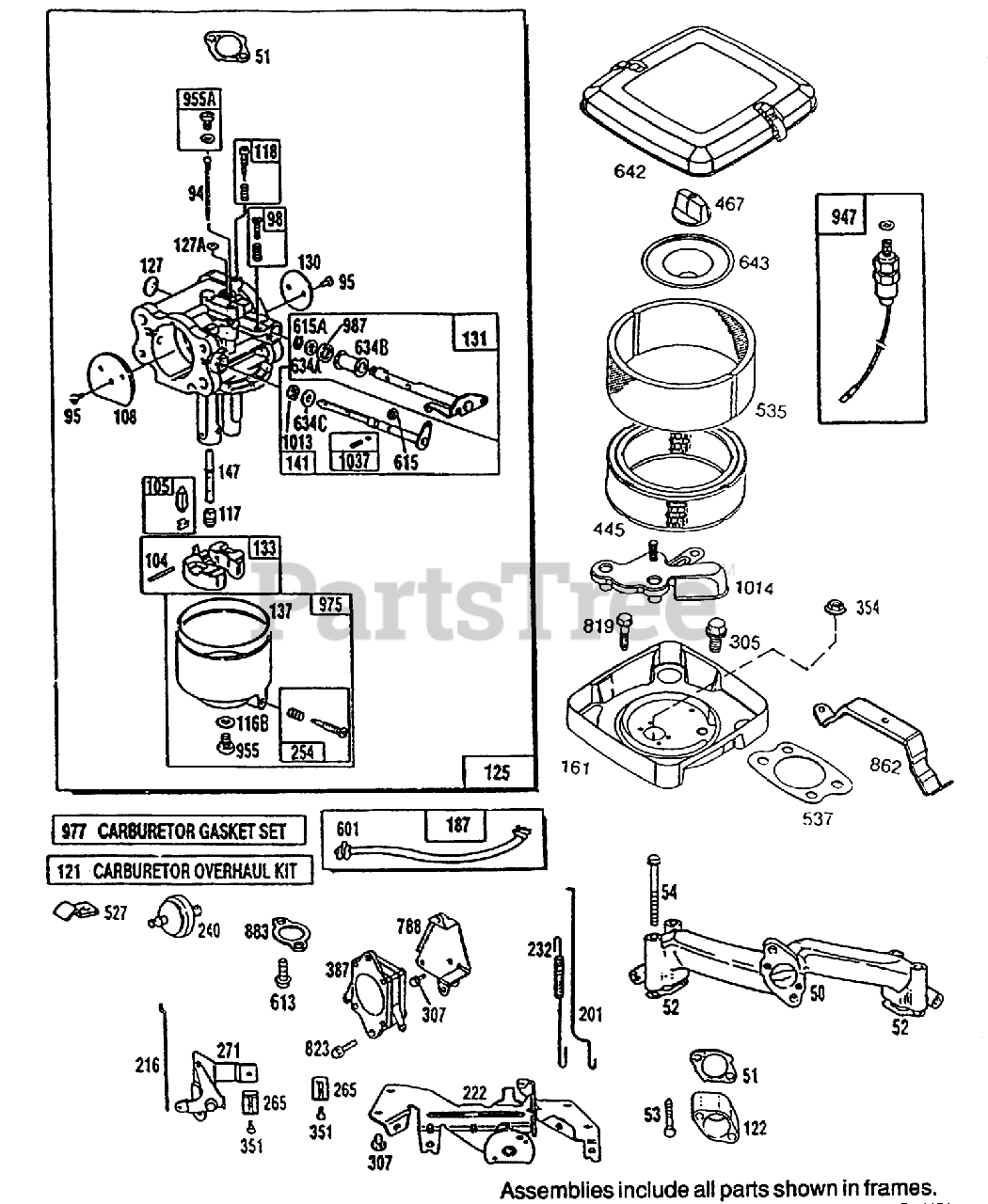

Engine Toro Power Plus 2 Parts Diagram

  • Title

50

Toro 78-3750

BRIGGS-805409

$

$

Not available

51

Toro 78-3770

BRIGGS-805149

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

52

Toro 78-378

Gasket-Intake Manifold

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Currently unavailable

53

Toro 78-3790

BRIGGS-805360

$

$

Not available

87

Toro 78-3840

BRIGGS-805054

$

$

Not available

94

Toro 92-0515

DISCONTINUED

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

95

Toro 78-3860

BRIGGS-805561

$

$

Not available

98

Toro 92-0516

BRIGGS 807705

$

$

Not available

104

Toro 92-0517

BRIGGS 805586

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

105

Toro 92-0518

BRIGGS 807706

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

Toro 92-0562

DISCONTINUED

$

$

Not available

118

Toro 78-3950

BRIGGS-807707

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

121

Toro 92-0519

BRIGGS-807962

$

$

Not available

122

Toro 78-3970

BRIGGS-805329

$

$

Not available

125

Toro 92-0520

BRIGGS-808255

$

$

Not available

127

Toro 78-3990

BRIGGS 805570

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

127A

Toro 78-4000

BRIGGS 805571

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

130

Toro 92-0521

DISCONTINUED

$

$

Not available

131

Toro 78-4020

BRIGGS-807709

$

$

Not available

137

Toro 92-0560

BRIGGS-807716

Note: Included in Carburetor Gasket Set Part No. 92-0560

$

$

Not available

133

Toro 78-4030

BRIGGS-807710

$

$

Not available

141

Toro 78-4040

BRIGGS-807711

$

$

Not available

147

Toro 92-0523

NOZZLE

$

$

Not available

161

Toro 92-0524

Base-Air Cleaner

$

$

Currently unavailable

187

Toro 92-0525

DISCONTINUED

$

$

Not available

Toro 92-0559

DISCONTINUED

$

$

Not available

201

Toro 78-4140

BRIGGS 805480

$

$

Not available

216

Toro 78-4170

BRIGGS-805439

$

$

Not available

222

Toro 78-4180

BRIGGS-807610

$

$

Not available

232

Toro 78-4210

DISCONTINUED,BRIGGS#692073

$

$

Not available

240

Toro 78-4220

DISCONTINUED

$

$

Not available

254

Toro 78-4250

BRIGGS-807713

$

$

Not available

265

Toro 78-8280

DISCONTINUED

$

$

Not available

271

Toro 78-4260

DISCONTINUED

$

$

Not available

305

Toro 78-4300

BRIGGS 805406

$

$

Not available

307

Toro 78-4310

BRIGGS-78-4310

$

$

Not available

351

Toro 78-4420

BRIGGS 805169

$

$

Not available

354

Toro 92-0526

DISCONTINUED

$

$

Not available

387

Toro 78-4490

DISCONTINUED

$

$

Not available

445

Toro 92-0527

CARTRIDGE-CLEANER, AIR

$35.99

$

Usually ships in 3-6 days

0

467

Toro 92-0528

BRIGGS-491875

$

$

Not available

527

Toro 92-0529

DISCONTINUED

$

$

Not available

535

Toro 92-0530

ELEMENT-FILTER

$15.99

$

Usually ships in 3-6 days

0

537

Toro 92-0531

BRIGGS 805655

$

$

Not available

601

Toro 92-0532

BRIGGS-93053

$

$

Not available

613

Toro 78-4700

DISCONTINUED

$

$

Not available

615

Toro 78-4720

BRIGGS 805578

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

615A

Toro 78-4730

BRIGGS 805577

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

634A

Toro 78-4760

BRIGGS 805576

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

634B

Toro 78-4770

BRIGGS-805574

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

634C

Toro 78-4780

BRIGGS 805580

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

642

Toro 92-0533

DISCONTINUED

$

$

Not available

643

Toro 92-0534

BRIGGS 805631

$

$

Not available

788

Toro 92-0535

DISCONTINUED

$

$

Not available

819

Toro 78-4910

BRIGGS 805057

$

$

Not available

823

Toro 78-4920

BRIGGS 805317

$

$

Not available

862

Toro 92-0536

DISCONTINUED

$

$

Not available

883

Toro 92-0537

DISCONTINUED

Note: Included in Carburetor Kit Part No. 92-0519

$

$

Not available

947

Toro 92-0538

DISCONTINUED

$

$

Not available

955

Toro 78-5070

BRIGGS 805592

$

$

Not available

955A

Toro 78-5080

BRIGGS-807714

$

$

Not available

975

Toro 78-5140

BRIGGS-807715

$

$

Not available

977

Toro 78-3940

BRIGGS 807716

$

$

Not available

987

Toro 78-5180

BRIGGS 805575

Note: Included in Carburetor Gasket Set Part No. 92-0560

$

$

Not available

1013

Toro 78-5220

BRIGGS 805581

$

$

Not available

1014

Toro 92-0539

DISCONTINUED

$

$

Not available

1037

Toro 78-5150

BRIGGS 807717

$

$

Not available
