72081 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) Main Frame Assembly Parts Diagram

Yard Tractor

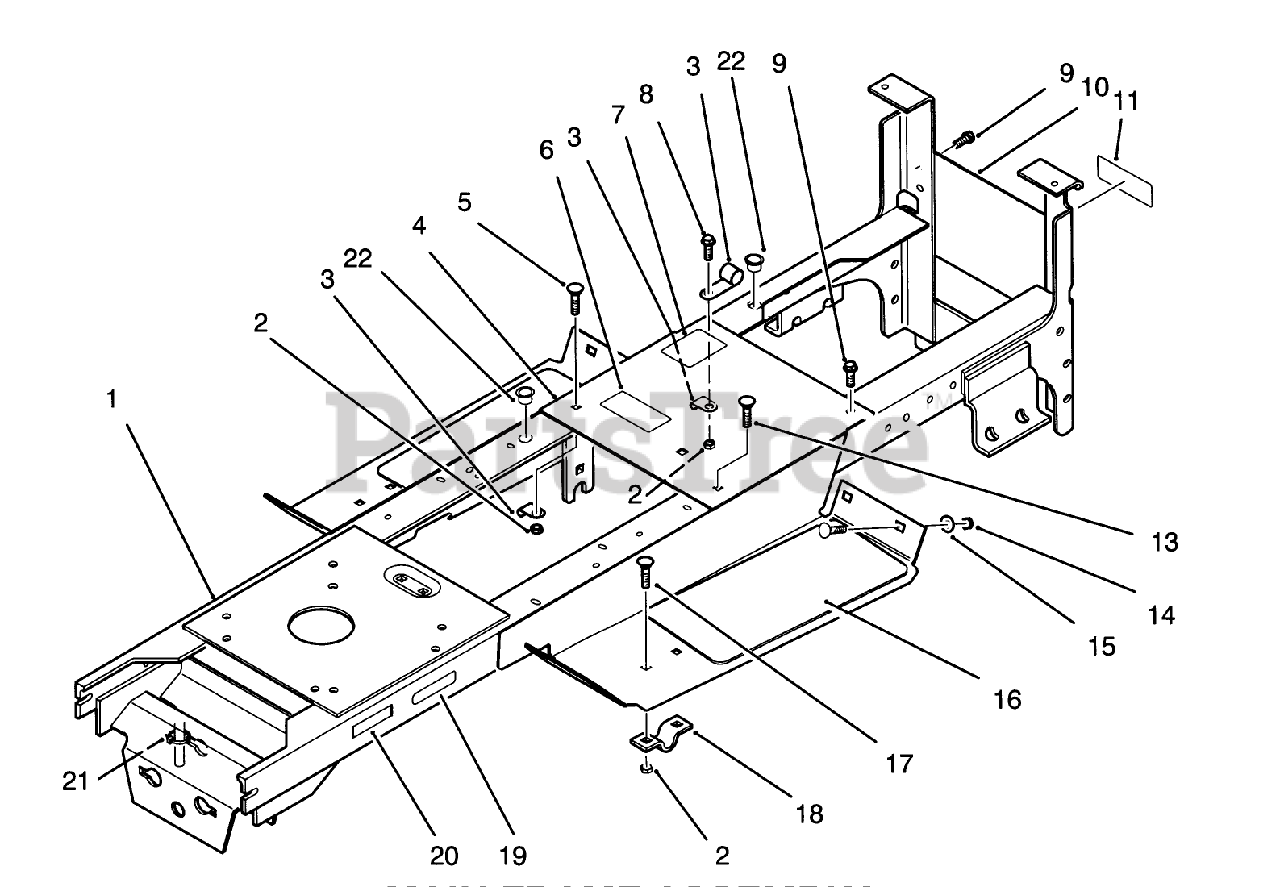

Main Frame Assembly Parts Diagram

  • Title

1

Toro 92-6348

FRAME/SAFETY DECAL ASM

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 100729

THROTTLE CONTROL CLP

$7.99

$

Usually ships in 3-6 days

0

4

Toro 92-6347

DISCONTINUED

$

$

Not available

5

Toro 9002159

See Supercession: 3230-22
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0

6

Toro 79-0370

DECAL-DANGER

$

$

Not available

7

Toro 79-0120

DISCONTINUED

$

$

Not available

8

Toro 926696

See Supercession: 9266964
(Superseded to 9266964)

$

$

Not available

9

Toro 926720

Screw
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

10

Toro 79-0681

DISCONTINUED

$

$

Not available

11

Toro 88-2790

DECAL - DANGER

$

$

Not available

13

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

15

Toro 3254-23

DISCONTINUED

$

$

Not available

16

Toro 110636

PAD FOOTREST

$

$

Not available

17

Toro 3220-23

NUT-HEX, JAM

$2.99

$

Usually ships in 3-6 days

0

18

Toro 106288

CLAMP

$

$

Not available

19

Toro 79-6730

DISCONTINUED

$

$

Not available

20

Toro 115197

DISCONTINUED
(Superseded to 94-6330)

$

$

Not available

21

Toro 100571

DISCONTINUED

$

$

Not available

22

Toro 79-4050

DISCONTINUED

$

$

Not available
