72086 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) Crankcase Parts Diagram

Lawn & Garden Tractor

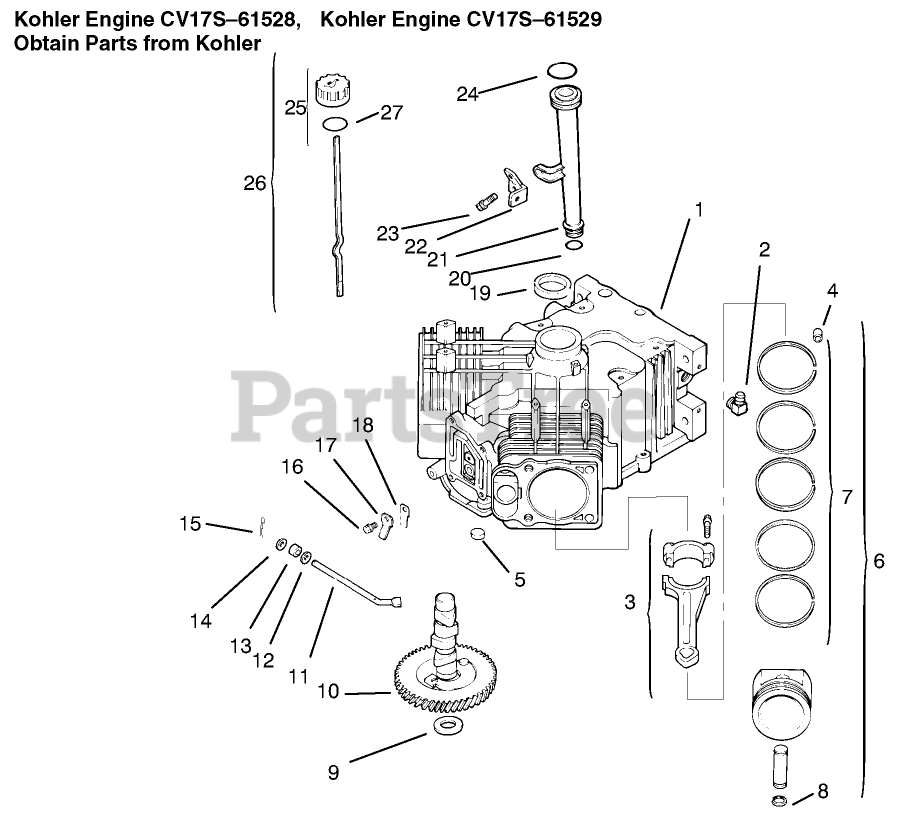

Crankcase Parts Diagram

  • Title

1

Toro 24_522_09

Short Block (Only On: 72103)

$

$

Currently unavailable

2

Toro 25 155 02

Connector

$

$

Currently unavailable

3

Toro 24_067_05

Connecting Rod STD

$

$

Currently unavailable

3

Toro 24_067_06

Connecting Rod .25

$

$

Currently unavailable

4

Toro 12_380_03

Pin-Dowel

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro 52_139_09

Cup

$

$

Currently unavailable

6

Toro 24_874_01

Piston w/Ring Set (Std.) (Incl. Ref. # 4-6)

$

$

Currently unavailable

6

Toro 24_874_02

Piston w/Ring Set (.25)

$

$

Currently unavailable

6

Toro 24_874_03

Piston w/Ring Set (.50)

$

$

Currently unavailable

7

Toro 24_108_01

Set-Ring (Std)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro 24_108_02

Ring Set (.25)

$

$

Currently unavailable

7

Toro 24_108_03

Ring Set (.50)

$

$

Currently unavailable

8

Toro 24_018_01

Retainer-Piston Pin

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

9

Toro 12_422_07

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_08

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_09

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_10

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_11

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_12

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_13

Shim-Camshaft

$

$

Currently unavailable

10

Toro 24_012_05

Camshaft

$

$

Currently unavailable

11

Toro 24_144_01

Shaft-Governor Cross

$

$

Currently unavailable

12

Toro X-25-63

Washer

$

$

Currently unavailable

13

12_032_01

Seal

$

$

Not available

14

Toro X-25-102

Washer

$

$

Currently unavailable

15

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable

16

Toro M-0545010

Screw

$

$

Currently unavailable

17

Toro 24 018 04

Retainer-Reed (Only On: 72103)

$

$

Currently unavailable

18

Toro 24 402 05

Beed-Breather

$

$

Currently unavailable

19

Toro 24_032_01

Seal-Oil

$

$

Currently unavailable

20

Toro 12 153 01

O-Ring-Lower Fill Tube (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

21

Toro 12 123 04

Tube-Oil Fill (Only On: 72103, 72083)

$

$

Currently unavailable

22

Toro 24_126_19

Bracket-Oil Fill Tube (Only On: 72103)

$

$

Currently unavailable

23

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

24

12_153_02

O Ring-Upper Fill Tube (Only On: 72103)

$

$

Not available

25

Toro 24 038 04

Dipstick INC 26-27 (Only On: 72103, 72083)

$

$

Currently unavailable

26

Toro 25_755_13

Kit-Oil Fill Cap (Incl. Ref. #7)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

27

12_153_03

ORing

Note: Included in a service kit or in an assembly

$

$

Not available

Toro 24_755_03

Gasket Set

Note: Not illustrated

$

$

Currently unavailable
