72086 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) Fuel System Parts Diagram

Lawn & Garden Tractor

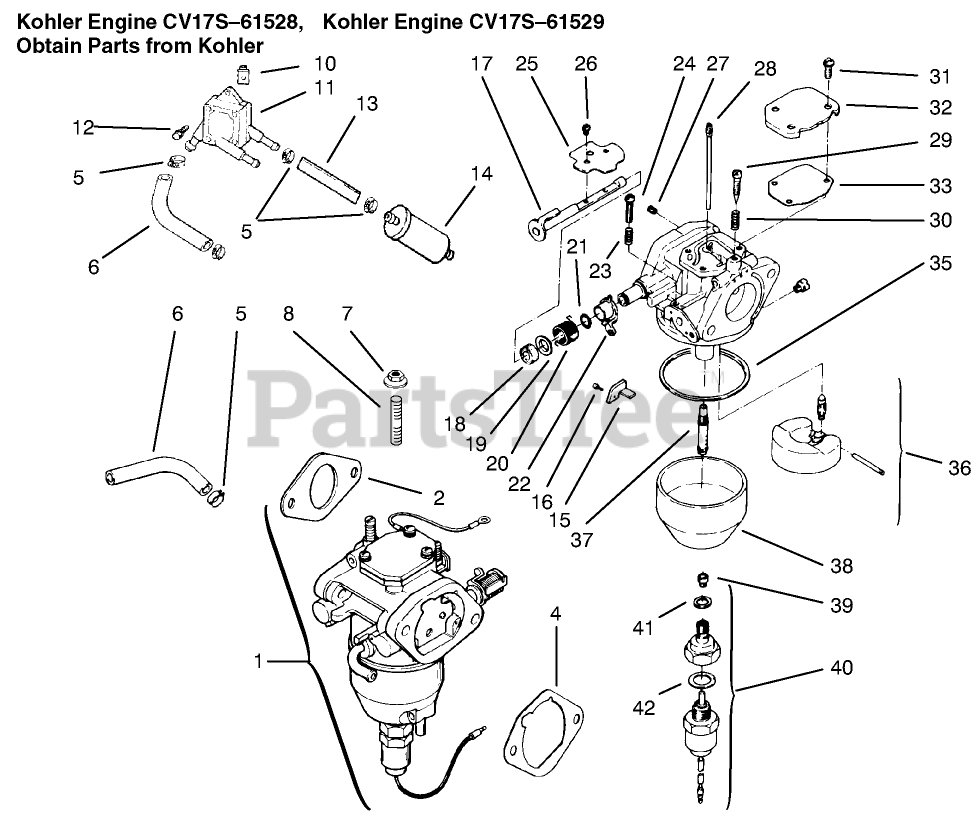

Fuel System Parts Diagram

  • Title

2

Toro 24_041_15

Gasket-Carburetor (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

4

Toro 24 041 14

Gasket-A/C Base (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro X-426-9

Clamp

$

$

Currently unavailable

6

Toro 24 353 03

Line-Fuel 10 1/2" (Only On: 72103, 72083)

$

$

Currently unavailable

7

Toro M-0641060

Nut

$

$

Currently unavailable

8

Toro M-0629095

Stud M6x1.0x95 (Only On: 72103, 72083)

$

$

Currently unavailable

10

Toro 24_100_01

Nut

$

$

Currently unavailable

11

Toro 24_393_04

Pump-Fuel

$

$

Currently unavailable

12

Toro 24_086_12

Screw

$

$

Currently unavailable

13

Toro 25_353_15

Line-Fuel 3 1/2" (Only On: 72103)

$

$

Currently unavailable

14

Toro 25_050_02

Filter-Fuel (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

15

Toro 24 126 29

Bracket-Throttle Stop (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

16

Toro M-0259006

Screw M2.5X45X5.5 (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

17

Toro 24 144 15

Shaft-Choke (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

18

Toro 24 468 05

Washer (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

19

Toro 24 241 01

Collar-Choke (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

20

Toro 24 089 22

Spring-Choke Return (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

21

Toro 24_141_04

Ring-Choke Lever (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

22

Toro 24_090_10

Lever-Choke (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

23

Toro 24 089 24

Spring-Throttle Screw (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

24

Toro 24 086 19

Screw-Throttle Adjust (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

25

Toro 24 146 13

Valve-Choke

$

$

Currently unavailable

26

Toro 24 086 20

Screw-Throttle Shaft (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

27

Toro 24_337_27

Jet-Air Bleed (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

28

Toro 24_337_11

Jet-Slow (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

29

Toro 24 086 22

Screw-Idle Adjust (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

30

Toro 24_089_23

Spring-Idle Adjust Screw (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

31

Toro 24_086_21

Screw (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

32

Toro 24 096 13

Cover-Passage (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

33

Toro 24 041 18

Gasket-Passage Cover (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

35

Toro 24_041_19

Gasket-Float Chamber (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

36

Toro 24_757_05

Kit-Float Repair (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

37

Toro 24 369 01

Nozzle-Main (Only On: 72103,72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

38

Toro 24_234_01

Chamber-Float (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

39

Toro 24_337_20

Jet-Main (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

40

Toro 24 755 15

Kit-Solenoid INC 41-42 (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

41

Toro 24_041_21

Gasket-Chamber Screw (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

42

Toro 24 041 20

Gasket-Solenoid (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

Toro 24_041_15

Gasket-Carburetor (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_063_22

Baffle-Carburetor (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_755_25

Kit-Hi Alt 1500-3000 M (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24 755 26

Kit-Hi Alt Over 3000 M (Only On: 72103, 72083)

Note: Not illustrated

$

$

Currently unavailable

Toro 24 757 06

Kit-Carburetor Repair (Only On: 72103, 72083)

Note: Not illustrated

$

$

Currently unavailable
