72086 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) Fuel Tank Hydro Reservoir Assembly Parts Diagram

Lawn & Garden Tractor

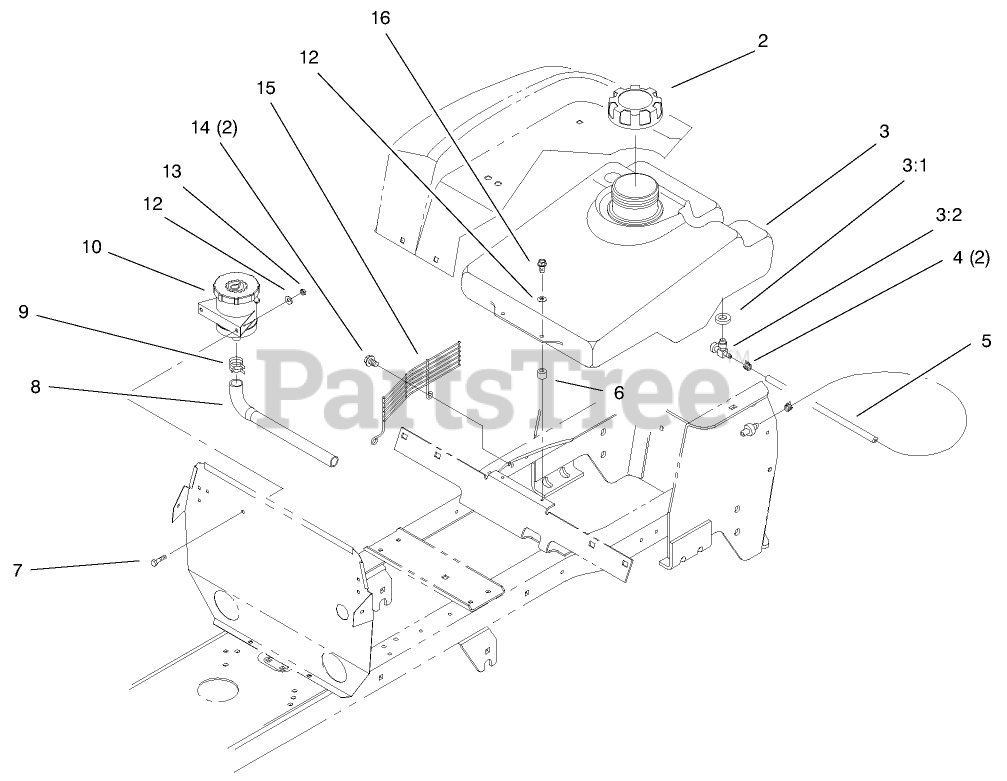

Fuel Tank Hydro Reservoir Assembly Parts Diagram

  • Title

2

Toro 88-3980

GAS CAP ASM

$36.99

$

In Stock, Qty 17

0

3

Toro 94-6928

TANK-GAS (FG50538)

$

$

Not available

3:1

Toro 104048

VALVE-FUEL

$40.99

$

In Stock, only 2 left!

0

3:2

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

4

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

5

Toro 93-1627

DISCONTINUED

$

$

Not available

6

Toro 93-1144

SPACER - FUEL TANK

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 92-6737

HOSE - HYDRO

$244.99

$

Usually ships in 3-6 days

0

9

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 11

0

10

Toro 79-3500

DISCONTINUED

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

15

Toro 93-9275

DISCONTINUED

$

$

Not available

16

Toro 32104-96

SCREW-HH

$6.99

$

In Stock, Qty 5

0
