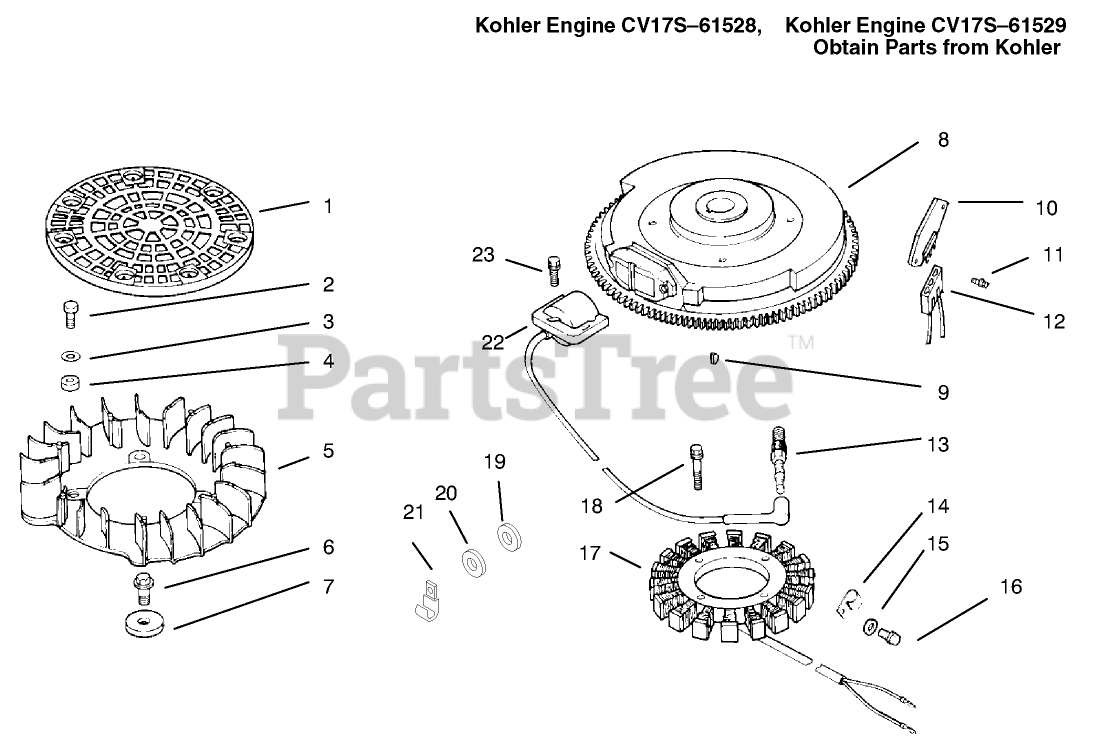

72086 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) Ignition / Electrical Parts Diagram

Lawn & Garden Tractor

Ignition / Electrical Parts Diagram

  • Title

1

Toro 2416217

Screen-Grass (Only On: 72103, 72083)

$

$

Currently unavailable

2

Toro M-0403025

Screw-Hex.

$

$

Currently unavailable

3

Toro X-25-92

Washer

$

$

Currently unavailable

4

Toro 24_112_04

Spacer-Fan (Only On: 72103)

$

$

Currently unavailable

5

Toro 24 157 03

Fan (Only On: 72103, 72083)

$

$

Currently unavailable

6

Toro M-0639016

Screw

$

$

Currently unavailable

7

12_112_01

Spacer-Fan

$

$

Not available

8

Toro 24 025 04

Flywheel ASM (Only On: 72103, 72083)

$

$

Currently unavailable

9

Toro X-42-15

Key

$

$

Currently unavailable

10

Toro 25_403_03

Rectifier-Regulator

$

$

Currently unavailable

11

Toro 24_086_18

Screw

$

$

Currently unavailable

12

Toro 236602

Connector

$

$

Currently unavailable

13

12_132_02

Spark Plug

$

$

Not available

14

Toro 48_154_02

Clip

$

$

Currently unavailable

15

Toro 12_468_03

Washer

$

$

Currently unavailable

16

12_086_14

Screw

$

$

Not available

17

Toro 24_085_01

Stator-15 amp

$

$

Currently unavailable

18

Toro M-0548025

Screw

$

$

Currently unavailable

19

Toro X-25-63

Washer

$

$

Currently unavailable

20

Toro X-25-92

Washer

$

$

Currently unavailable

21

Toro 235173

Clip

$

$

Currently unavailable

22

Toro 24_584_01

Module-Ignition

$

$

Currently unavailable

23

Toro M-0545020

Screw

$

$

Currently unavailable

Toro 24_113_18

Decal-Grass Screen (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_176_40

Harness-Wire

$

$

Currently unavailable

Toro 24 518 28

Lead-Black

$

$

Currently unavailable
