72086 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) Starting System Parts Diagram

Lawn & Garden Tractor

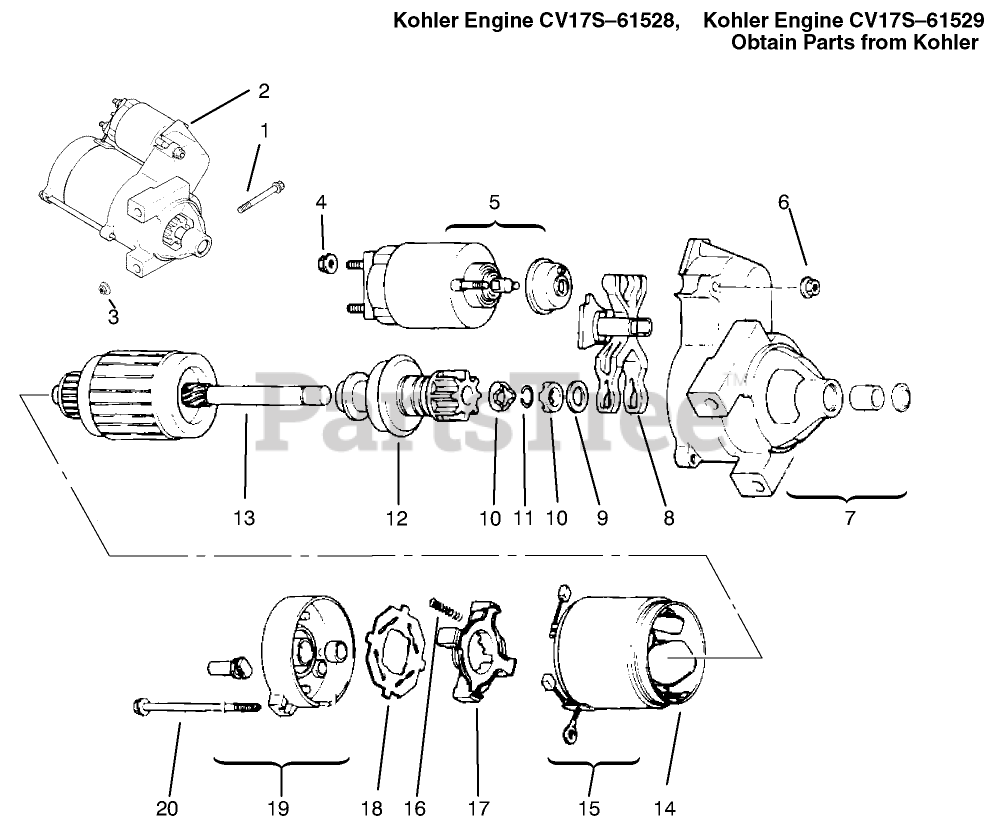

Starting System Parts Diagram

  • Title

1

Toro M-0839080

Screw M8x1.25x80 (Only On: 72103, 72083)

$

$

Currently unavailable

2

12_098_03

Starter-Solenoid Shift (Incl. Ref. # 4-20)

$

$

Not available

3

Toro M-0841080

Nut

$

$

Currently unavailable

4

Toro 52_100_09

Nut

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro 52_435_02

Solenoid

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

6

Toro 52_100_10

Nut Starter

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

12_081_02

Cap-Drive End

Note: Included in a service kit or in an assembly

$

$

Not available

8

12_090_10

Lever Starter Drive

Note: Included in a service kit or in an assembly

$

$

Not available

9

Toro 42 468 14

Washer-Thrust (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

10

Toro 52_100_08

Nut-Stop Collar

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

11

Toro 52_141_03

Ring-Retainer

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

12

Toro 12_239_01

Drive-Pinion

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

13

12_170_03

Armature-Starter

Note: Included in a service kit or in an assembly

$

$

Not available

14

Toro 12_471_01

Frame

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

15

Toro 52_221_01

Kit-Brush (Incl. Ref. # 16)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

16

Toro 52_089_09

Spring-Brush

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

17

Toro 52_323_03

Holder-Brush

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

18

Toro 52_168_01

Insulator

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

19

Toro 12_301_01

Cap-Commutator End

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

20

Toro 52_211_05

Bolt

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

Toro 24 755 84

Washer

$

$

Currently unavailable
