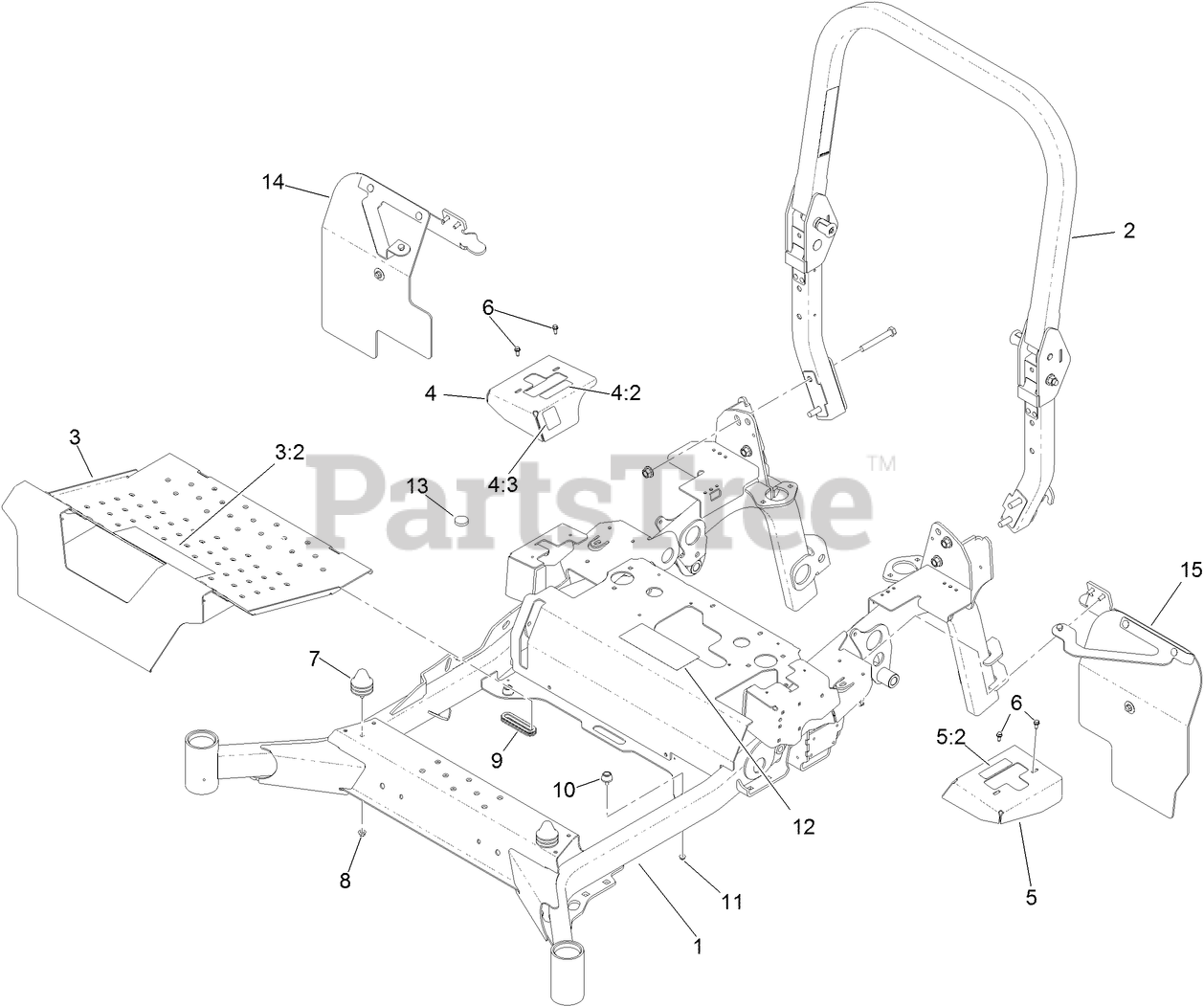

72096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 408851917 - 408863599) Front Frame Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

Front Frame Assembly Parts Diagram

  • Title

1

Toro 126-7749-01

FRAME-MAIN
(Superseded to 142-6829)

$2650.99

$

Usually ships in 3-6 days

0

2

Toro 135-5927

ASM, ROPS-7500D DIESEL

$693.99

$

Usually ships in 3-6 days

0

3

Toro 126-9066

PAN-FLOOR

$347.99

$

Usually ships in 3-6 days

0

3:2

Toro 126-8383

DECAL-DANGER

$7.99

$

In Stock, only 1 left!

0

4

Toro 126-1831

COVER-MOTION CONTROL, RH

$70.99

$

Usually ships in 3-6 days

0

4:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

4:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

Usually ships in 3-6 days

0

5

Toro 126-1821

COVER-MOTION CONTROL, LH

$57.99

$

Usually ships in 3-6 days

0

5:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

6

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

7

Toro 126-5491

ISOLATOR

$19.99

$

Usually ships in 3-6 days

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0

10

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 19

0

11

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 126-9947

DECAL-SERVICE AID

$13.99

$

Usually ships in 3-6 days

0

13

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 20+

0

14

Toro 135-4933

ASM, RH MUD FLAP

$216.99

$

Usually ships in 3-6 days

0

15

Toro 135-4943

ASM, LH MUD FLAP

$216.99

$

Usually ships in 3-6 days

0
