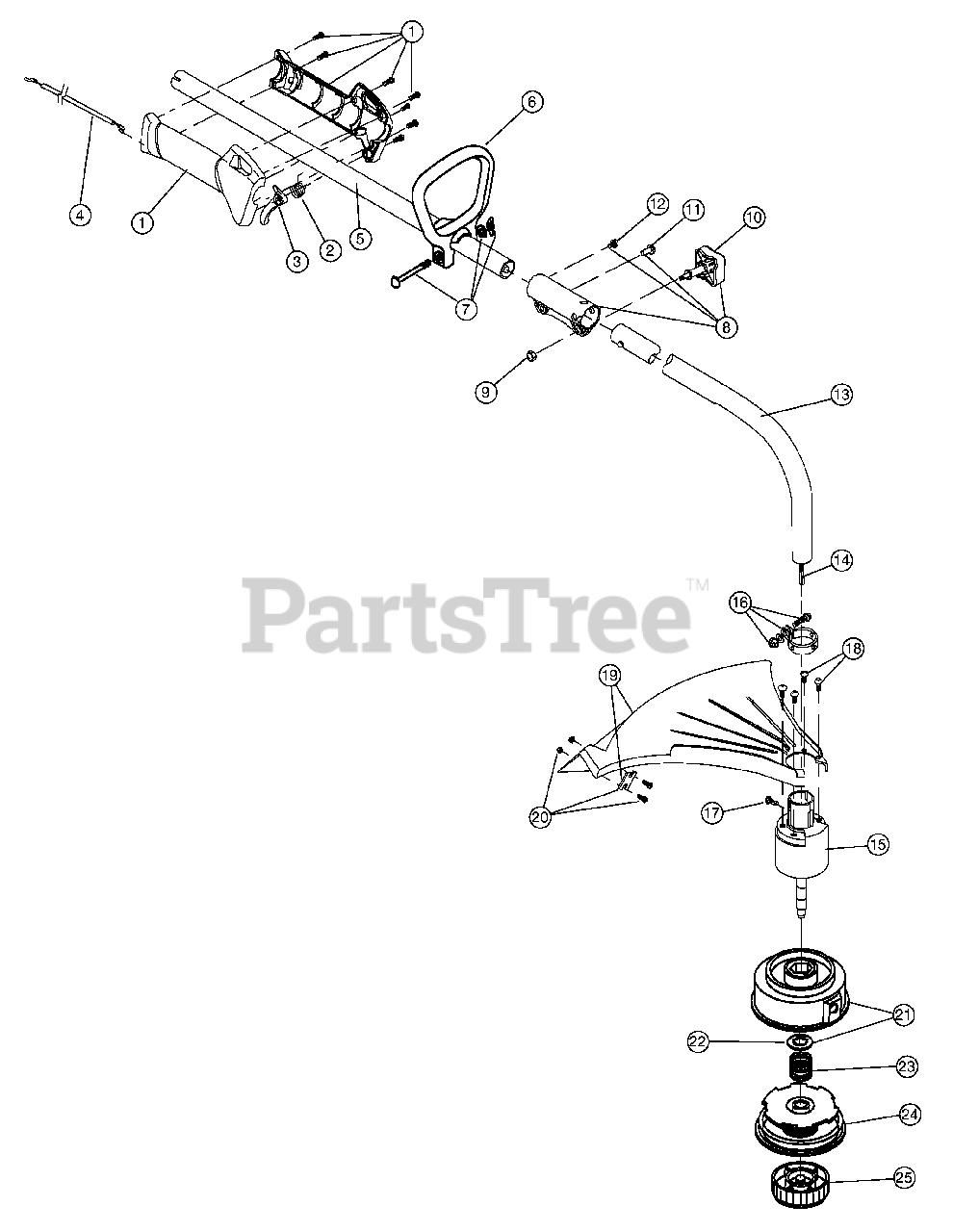

720r (41BD720A034) - Ryobi String Trimmer Boom And Trimmer Parts Diagram

String Trimmer

Boom And Trimmer Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing & Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$19.99

$

In Stock, only 2 left!

0

5

MTD 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

6

MTD 791-153064

D-Handle Assembly

Note: (includes 7)

$

$

Not available

7

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$18.99

$

In Stock, only 1 left!

0

8

MTD 791-181616B

Click Link Coupler Assembly
(Superseded to 753-1190)

Note: (includes 9-12)

$21.99

$

In Stock, Qty 6

0

9

MTD 791-181886

Nut

$3.49

$

In Stock, only 4 left!

0

10

MTD 791-181618B

Knob
(Superseded to 791-181981)

Note: (includes 9)

$7.49

$

In Stock, only 1 left!

0

11

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

12

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

13

MTD 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$98.99

$

Usually ships in 3-6 days

0

14

MTD 791-181852

Lower Flexible Drive Shaft

$58.99

$

Usually ships in 3-6 days

0

15

MTD 791-181784

Bushing Housing Assembly

$

$

Not available

16

MTD 791-153597

Lower Clamp Assembly

Note: (includes 18)

$15.99

$

Usually ships in 3-6 days

0

17

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

18

MTD 791-180531

Guard Mounting Screw Assembly
(Superseded to 791-181858)

$

$

Not available

19

MTD 791-683274

Guard and Blade Assembly

Note: (includes item 21)

$36.99

$

In Stock, only 4 left!

0

20

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

21

MTD 791-153619

Outer Spool Assembly

Note: (includes 23)

$26.99

$

In Stock, only 1 left!

0

22

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

23

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

24

MTD 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

25

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-610375

Monoflail Cutting Line, 50 ft.

Note: Optional Accessories; not shown

$

$

Not available

MTD 791-153577B

Spool and Line Assembly

Note: Optional Accessories; not shown

$26.99

$

In Stock, only 4 left!

0

MTD 791-180897B

Complete Cutting Head Assembly

Note: (includes items 21-25); Optional Accessories; not shown

$69.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessories; not shown

$36.99

$

Usually ships in 3-6 days

0

MTD 791-147543

2-Cycle Oil

Note: Optional Accessories; not shown

$

$

Not available
