72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) SEAT Parts Diagram

Lawn & Garden Tractor

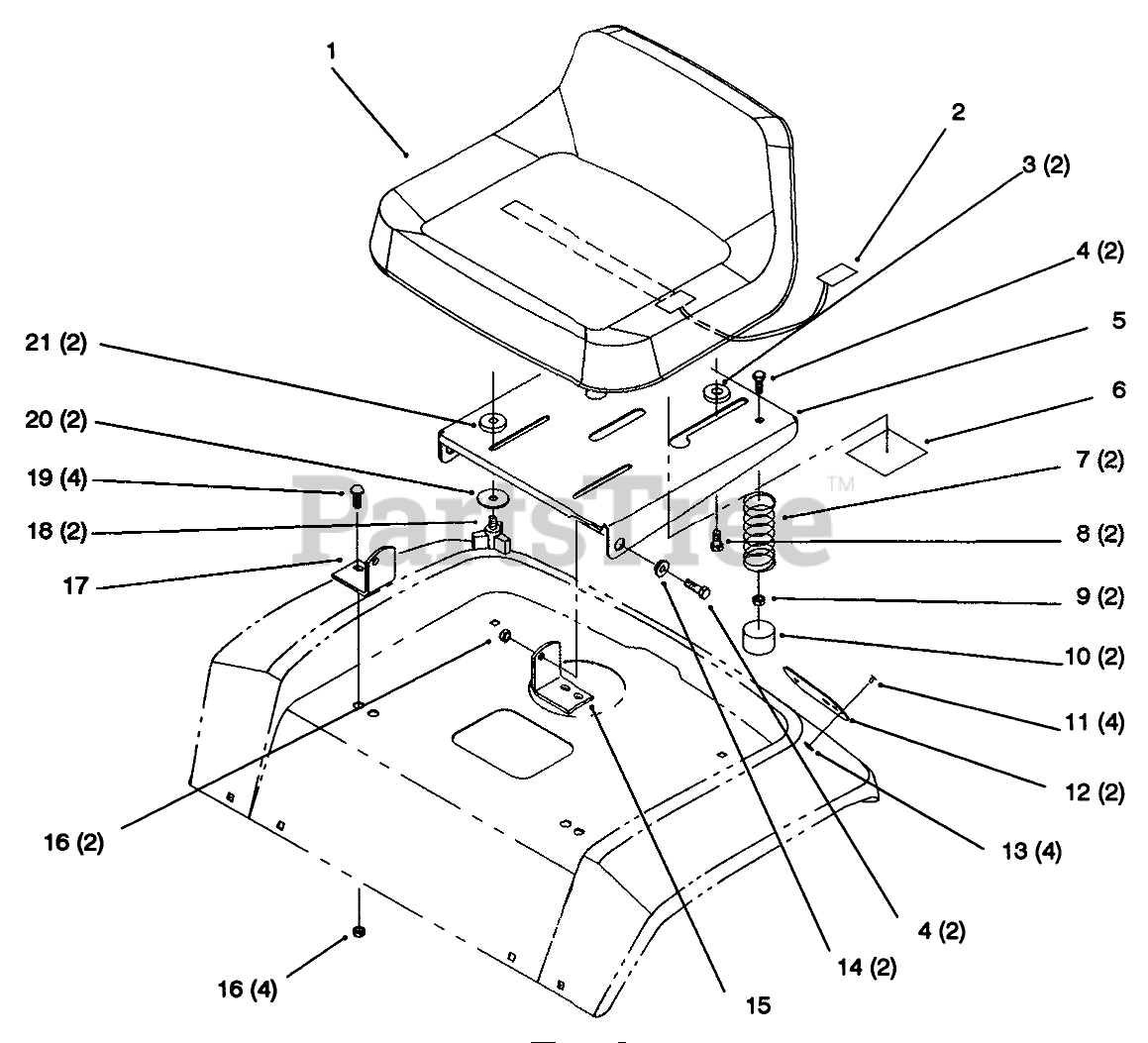

SEAT Parts Diagram

  • Title

1

Toro 92-6511

SEAT-V-511

$

$

Not available

1:1

Toro 94-4909

TRIM - SEAT

$

$

Not available

2

Toro 38-1420

SWITCH-SEAT

$

$

Not available

3

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 92-6972-04

Support-Seat

$

$

Currently unavailable

7

Toro 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 19

0

8

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

10

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

11

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

12

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

13

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

14

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

15

Toro 79-4970-04

Bracket-Pivot LH

$

$

Currently unavailable

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 79-0950-04

Bracket-Pivot RH

$

$

Currently unavailable

18

Toro 700806

KNOB

$19.99

$

In Stock, Qty 5

0

19

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

20

Toro 94-2869

WASHER

$1.49

$

In Stock, Qty 5

0

21

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0
