72103 (268-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) Air Intake/filtration Parts Diagram

Yard Tractor

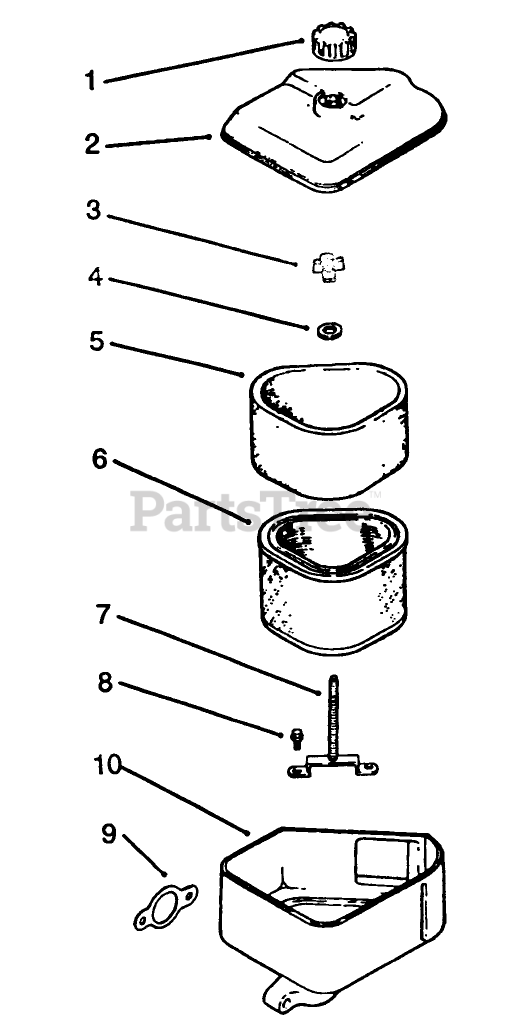

Air Intake/filtration Parts Diagram

  • Title

1

Toro 12 341 01

Knob-Air Cleaner Cover (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

2

12_096_06

Cover-Air Cleaner (Only On: 72042,72043,72062,72063)

$

$

Not available

3

12_100_01

Nut-Wing

$

$

Not available

4

Toro X-25-63

Washer

$

$

Currently unavailable

5

Toro 12 083 05

Element-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

6

12_083_08

Precleaner-Element (Only On: 72042,72043,72062,72063)

$

$

Not available

7

Toro 12 072 03

Stud-Mounting Plate (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

8

Toro 12 086 01

Screw-Mounting Plate (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

9

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

10

Toro 12 094 01

Base-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

Toro 12 113 04

Decal-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Currently unavailable
