72103 (268-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) HEAD/VALVE/BREATHER Parts Diagram

Yard Tractor

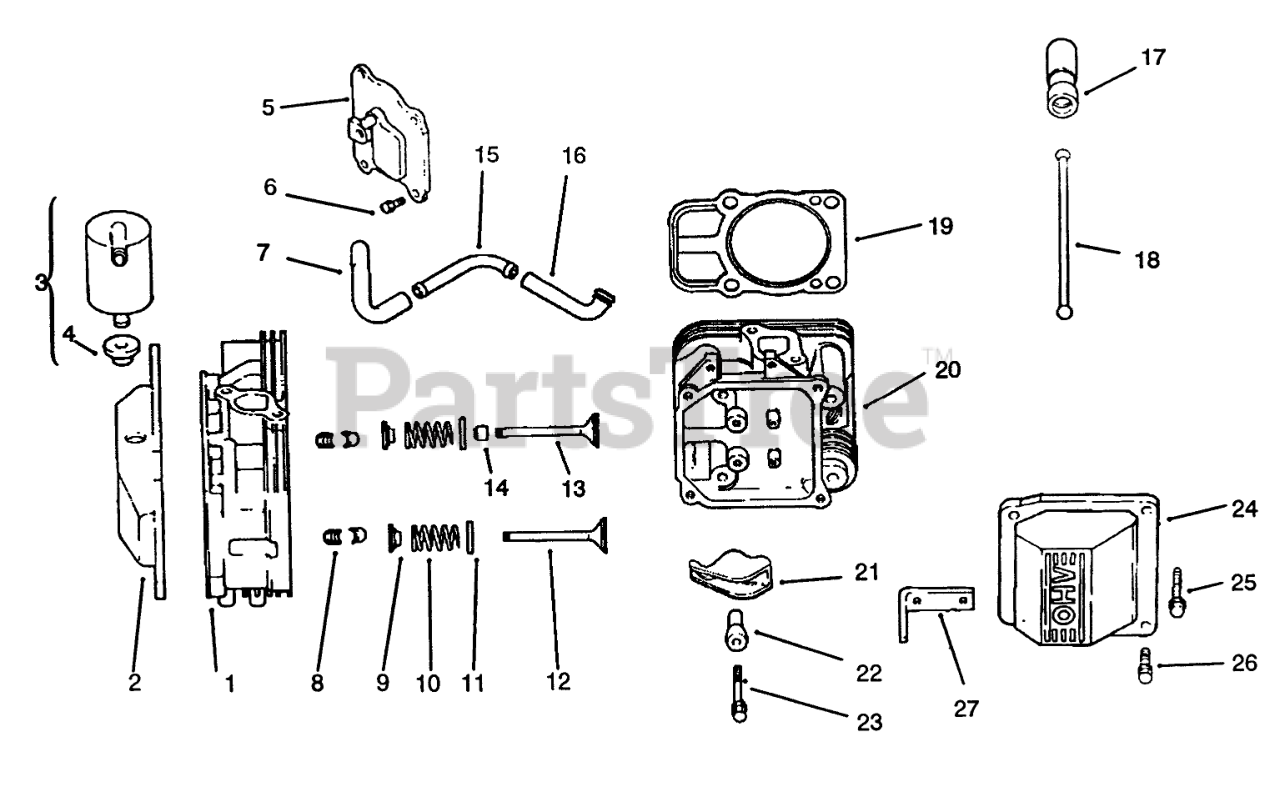

HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

2431811

Head ASM-#1 Cylinder (Only On: 72103, 72083)

$

$

Not available

2

2409616

Cover-Rocker (Only On: 72103, 72083)

$

$

Not available

3

2475520

Kit-Breather INC 4 (Only On: 72103, 72083)

$

$

Not available

4

2531302

Grommet-Rubber (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Not available

5

2409615

Cover-Breather (Only On: 72103, 72083)

$

$

Not available

6

Kohler SM-0645020

Screw M6x1.0x20 (Only On: 72103, 72083)
(Superseded to M-645020)

$2.99

$

In Stock, Qty 20+

0

7

2432605

Hose-Breather (Only On: 72103, 72083)

$

$

Not available

8

Kohler 12 755 03

Kit-Retainer (Only On: 72103, 72083)
(Superseded to 12 755 03-S)

$5.99

$

In Stock, Qty 14

0

9

Kohler 12 173 01

Cap-Valve spring (Only On: 72103, 72083)
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 7

0

10

Kohler 24 089 02

Spring-Valve (Only On: 72103, 72083)
(Superseded to 24 089 02-S)

$11.99

$

In Stock, Qty 20+

0

11

5201801

Retainer-Spring (Only On: 72103, 72083)

$

$

Not available

12

Kohler 24 016 01

Valve-Exhaust (Only On: 72103, 72083)
(Superseded to 24 016 01-S)

$21.99

$

In Stock, Qty 20+

0

13

Kohler 24 017 01

Valve-Intake (Only On: 72103, 72083)
(Superseded to 24 017 01-S)

$41.99

$

In Stock, Qty 18

0

14

Kohler 24 032 05

Seal-Valve Stem (Only On: 72103, 72083)
(Superseded to 24 032 05-S)

$11.99

$

In Stock, Qty 20+

0

15

2429402

Fitting (Only On: 72103, 72083)

$

$

Not available

16

2432604

Hose-Breather (Only On: 72103, 72083)

$

$

Not available

17

1235101

Lifter-Valve (Only On: 72103,72083)

$

$

Not available

18

2441102

Rod-Push (Only On: 72103,72083)

$

$

Not available

19

2404108

Gasket-Cylinder Head (Only On: 72103, 72083)

$

$

Not available

20

2431812

Head ASM-#2 Cylinder (Only On: 72103, 72083)

$

$

Not available

21

2418602

Arm-Rocker (Only On: 72103,72083)

$

$

Not available

22

2419401

Ball-Rocker Pivot (Only On: 72103, 72083)

$

$

Not available

23

Kohler M-0640034

Screw M6x1.0x34 (Only On: 72103, 72083)

$

$

Not available

24

2409612

Cover-Rocker (Only On: 72103,72083)

$

$

Not available

25

1208616

Screw M 10x1.5x91 (Only On: 72103, 72083)

$

$

Not available

26

Kohler M-0651030

Screw M6x1.0x30 (Only On: 72103, 72083)
(Superseded to M-651030-S)

$

$

Not available

27

2444501

Strap-Lifting (Only On: 72103, 72083)

$

$

Not available
