72103 (268-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) Rear Wheel Parts Diagram

Yard Tractor

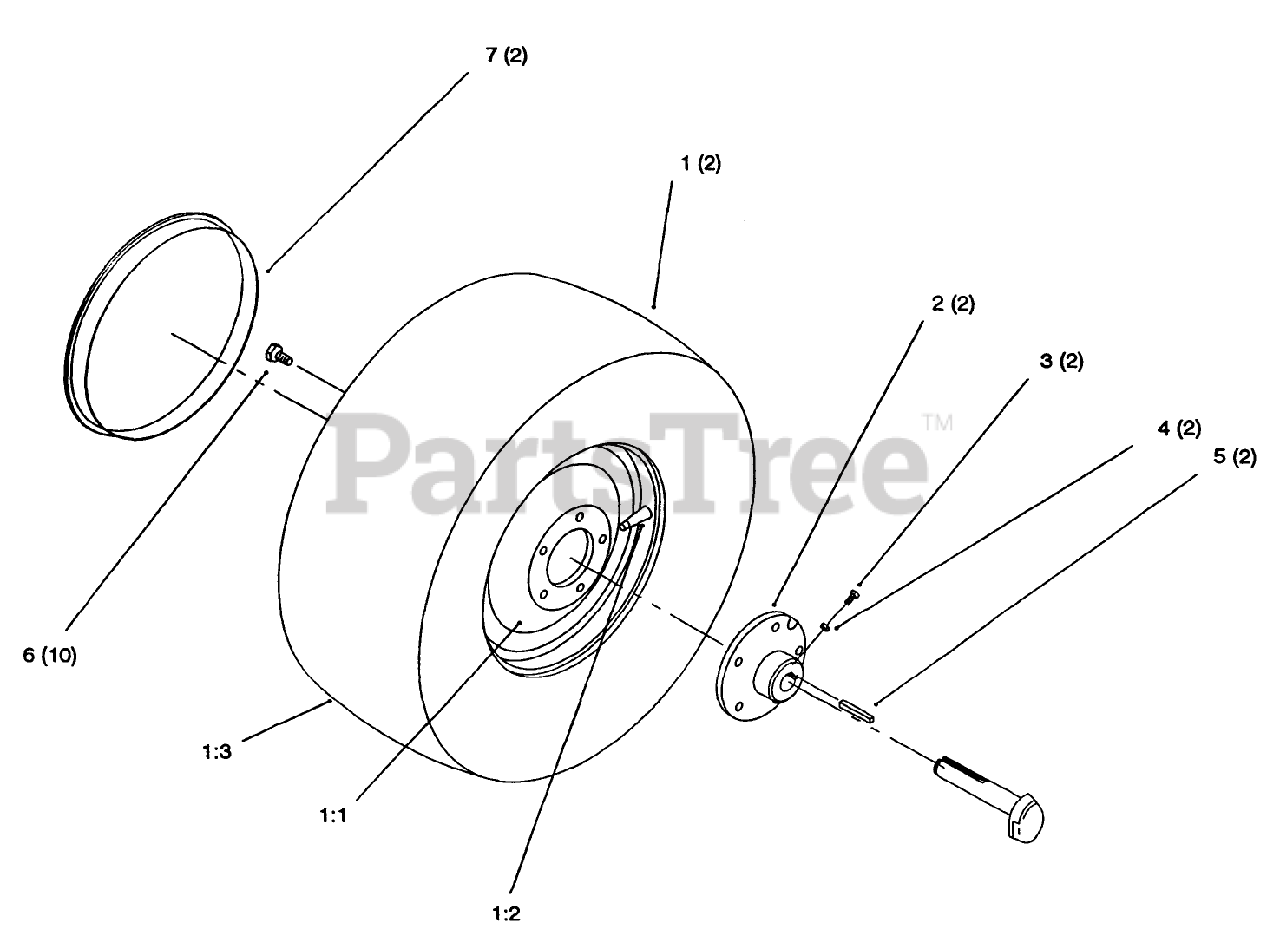

Rear Wheel Parts Diagram

  • Title

1

Wheel Tire ASM (Only On: 72042, 72062, 72043, 72063)

Note: Not serviced

$

$

Not available

1

Wheel Tire ASM Rear (Only On: 72083, 72103)

Note: Not serviced

$

$

Not available

1:1

Toro 78-1221

WHEEL

$

$

Not available

1:2

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

1:3

Toro 116744

See Supercession: 116-5363
(Superseded to 116-5363)

$223.99

$

Usually ships in 3-6 days

0

1:3

Toro 116971

DISCONTINUED

$

$

Not available

2

Toro 93-3659-03

HUB-WHEEL

$186.99

$

Usually ships in 3-6 days

0

3

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

4

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

5

Toro 5-1336

KEY-SQUARE

$11.99

$

In Stock, only 3 left!

0

6

Toro 83-2720

BOLT-LUG

$4.49

$

In Stock, only 3 left!

0

7

Toro 114428

DISCONTINUED

$

$

Not available
