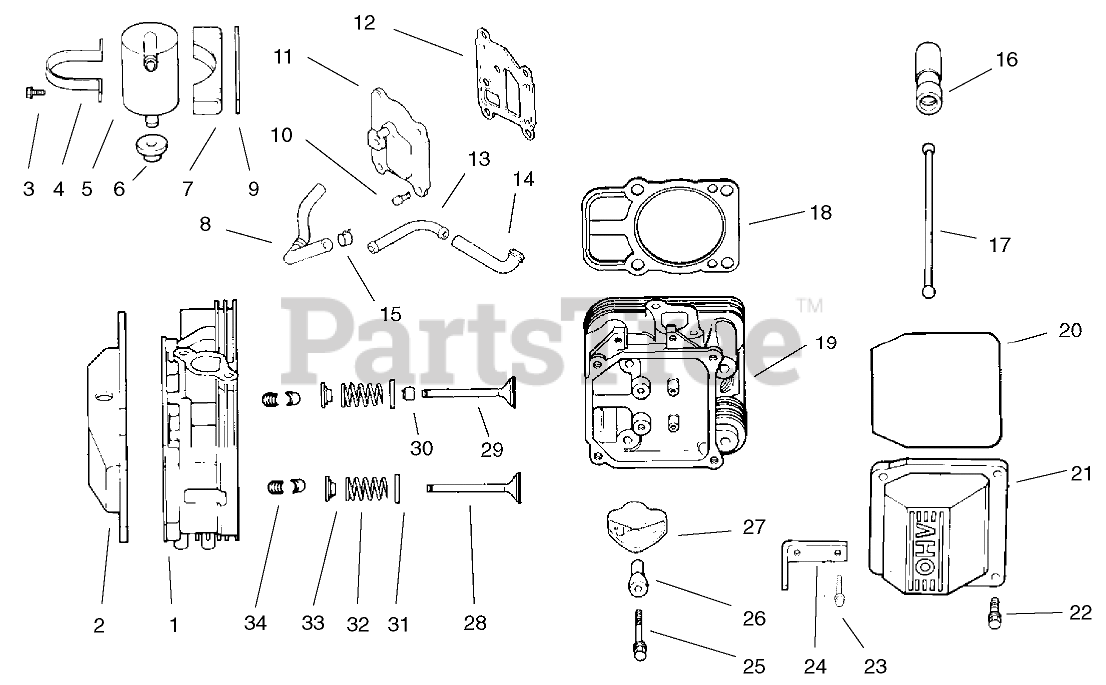

72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) HEAD / VALVE / BREATHER ASSEMBLY KOHLER CV18S-PS-61528 AND CV18S-PS-61529 Parts Diagram

Lawn & Garden Tractor

HEAD / VALVE / BREATHER ASSEMBLY KOHLER CV18S-PS-61528 AND CV18S-PS-61529 Parts Diagram

  • Title

1

2431811

#1 Cyl. Head Asm

$

$

Not available

2

2475576

Kit-Valve Incl 6 20-22

$

$

Not available

3

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$3.49

$

In Stock, only 1 left!

0

4

2444502

Strap-Lifting

$

$

Not available

5

2475557

Kit-Breather Incl 3-9

$

$

Not available

6

2531302

Grommet-Rubber

$

$

Not available

7

2412644

Bracket

$

$

Not available

8

2432613

Hose-Breather

$

$

Not available

9

2411212

Spacer

$

$

Not available

10

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.99

$

In Stock, Qty 20+

0

11

2409615

Cover-Breather

$

$

Not available

12

Kohler 24 041 23

Gasket-Breather
(Superseded to 24 041 23-S)

$13.99

$

In Stock, Qty 20+

0

13

2429406

Fitting

$

$

Not available

14

2432614

Hose-Breather

$

$

Not available

15

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$6.49

$

In Stock, Qty 16

0

16

1235101

Lifter-Valve

$

$

Not available

17

Kohler 24 411 05

Rod-Push
(Superseded to 24 411 05-S)

$7.49

$

In Stock, Qty 20+

0

18

2404108

Gasket-Cylinder Head

$

$

Not available

19

2431812

#2 Cyl. Head Asm,

$

$

Not available

20

2415312

O Ring

$

$

Not available

21

Kohler 24 755 74

Valve Kit
(Superseded to 24 755 74-S)

$39.99

$

In Stock, Qty 18

0

22

2408632

Screw

$

$

Not available

23

1208616

Screw

$

$

Not available

24

2444501

Strap-Lifting

$

$

Not available

25

Kohler M-0640034

Screw

$

$

Not available

26

Kohler 24 599 01

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

$2.49

$

In Stock, Qty 19

0

27

Kohler 25 186 01

Arm-Rocker
(Superseded to 25 186 01-S)

$12.99

$

In Stock, Qty 6

0

28

Kohler 24 016 01

Valve-Exhaust
(Superseded to 24 016 01-S)

$21.99

$

In Stock, Qty 20+

0

28

Kohler 24 016 02

Valve-Exhaust (.25)
(Superseded to 32 016 02-S)

$20.99

$

In Stock, only 4 left!

0

29

Kohler 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

$41.99

$

In Stock, Qty 17

0

29

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

$

$

Not available

30

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

$11.99

$

In Stock, Qty 20+

0

31

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, Qty 9

0

32

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

$11.99

$

In Stock, Qty 20+

0

33

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 7

0

34

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

$5.99

$

In Stock, Qty 14

0

Kohler 24 033 03

Kit-Breather Incl11-12
(Superseded to 24 033 03-S)

Note: Not illustrated Obtain parts from Kohler

$32.99

$

Usually ships in 2-5 days

0

Kohler 24 755 66

Kit-Valve Incl 1726-27
(Superseded to 24 755 66-S)

Note: Not illustrated Obtain parts from Kohler

$45.99

$

In Stock, Qty 16

0
