72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 230000001 - 230999999) (2003) Group 3-Oil Pan / Lubrication Assembly Kohler Model No. CV18S-61529 Parts Diagram

Lawn & Garden Tractor

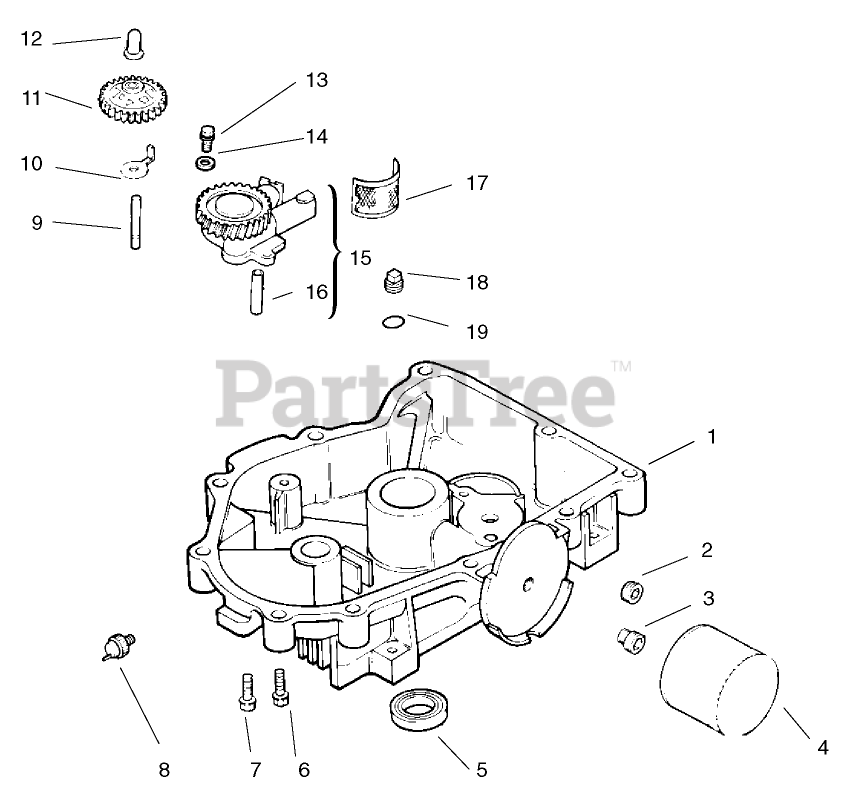

Group 3-Oil Pan / Lubrication Assembly Kohler Model No. CV18S-61529 Parts Diagram

  • Title

1

Toro 24 199 07

Oil Pan

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro X-75-32

Plug-HS 3/8 NPTF (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 24_136_01

Nipple-Oil Filter

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

12_050_01

Filter-Oil

Note: Obtain Parts From Kohler

$

$

Not available

5

Toro 52_032_08

Seal-Oil

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro 24 086 17

Screw M8x1.25x45 (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 24_086_16

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 52_099_06

Switch-Oil Pressure

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

12_144_02

Shaft-Govenor Gear

Note: Obtain Parts From Kohler

$

$

Not available

10

Toro 52_448_02

Tab-Locking

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 24_043_12

Kit-Governor Gear Assembly (Incl. Ref. #7)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 12_380_01

Pin-Governor

Note: Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro M-0645025

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro M-0631005

Washer

Note: Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 24 393 08

Oil Pump ASM INC 16

Note: Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 24 123 05

Tube-Oil Pickup (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 24 123 05

Tube-Oil Pickup (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly.

$

$

Currently unavailable

17

Toro 12 162 07

Screen-Oil Pickup

Note: Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro X-75-10

Plug

Note: Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 24_153_08

O Ring

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Not Illustrated.

$

$

Currently unavailable
