72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 230000001 - 230999999) (2003) GROUP 7-STARTER ASSEMBLY KOHLER MODEL NO. CV18S-61529 Parts Diagram

Lawn & Garden Tractor

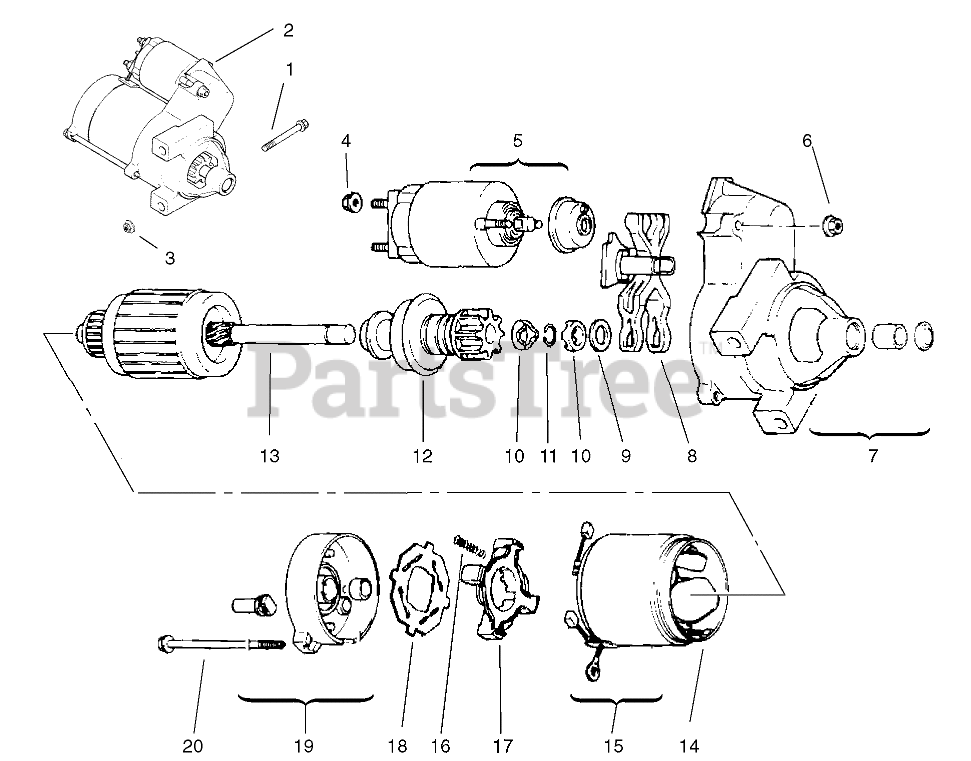

GROUP 7-STARTER ASSEMBLY KOHLER MODEL NO. CV18S-61529 Parts Diagram

  • Title

1

Toro M-0839080

Scew

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

1209803

Starter INC 4-20

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Toro M-0841080

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

4

5210009

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

5243502

Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

5243502

Solenoid

Note: Included in a service kit or in an assembly.

$

$

Not available

6

5210010

Nut

Note: Included in a service kit or in an assembly.

$

$

Not available

6

5210010

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1208102

Cap Drive End

Note: Included in a service kit or in an assembly.

$

$

Not available

7

1208102

Cap Drive End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1209010

Lever Starter Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1209010

Lever Starter Drive

Note: Included in a service kit or in an assembly.

$

$

Not available

9

4246814

Washer-Thrust

Note: Included in a service kit or in an assembly.

$

$

Not available

9

4246814

Washer-Thrust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

5210008

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

5210008

Nut

Note: Included in a service kit or in an assembly.

$

$

Not available

11

5214103

Ring-Retainer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

5214103

Ring-Retainer

Note: Included in a service kit or in an assembly.

$

$

Not available

12

1223901

Drive Pinion

Note: Included in a service kit or in an assembly.

$

$

Not available

12

1223901

Drive Pinion

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1217003

Armature

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1217003

Armature

Note: Included in a service kit or in an assembly.

$

$

Not available

14

1247101

Frame

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

1247101

Frame

Note: Included in a service kit or in an assembly.

$

$

Not available

15

5222101

Brush Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

5222101

Brush Kit

Note: Included in a service kit or in an assembly.

$

$

Not available

16

5208909

Spring Brush

Note: Included in a service kit or in an assembly.

$

$

Not available

16

5208909

Spring Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

5232303

Holder-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

5232303

Holder-Brush

Note: Included in a service kit or in an assembly.

$

$

Not available

18

5216801

Insulator

Note: Included in a service kit or in an assembly.

$

$

Not available

18

5216801

Insulator

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

1230101

Cap-Commutator End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

1230101

Cap-Commutator End

Note: Included in a service kit or in an assembly.

$

$

Not available

20

5221105

Bolt

Note: Included in a service kit or in an assembly.

$

$

Not available

20

5221105

Bolt

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475584

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475584

Washer

Note: Not Illustrated.

$

$

Not available
