72108 (270-H) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) Air Intake/filtration-Kohler Cv20s-Ps65531 And Ps65532 Parts Diagram

Lawn & Garden Tractor

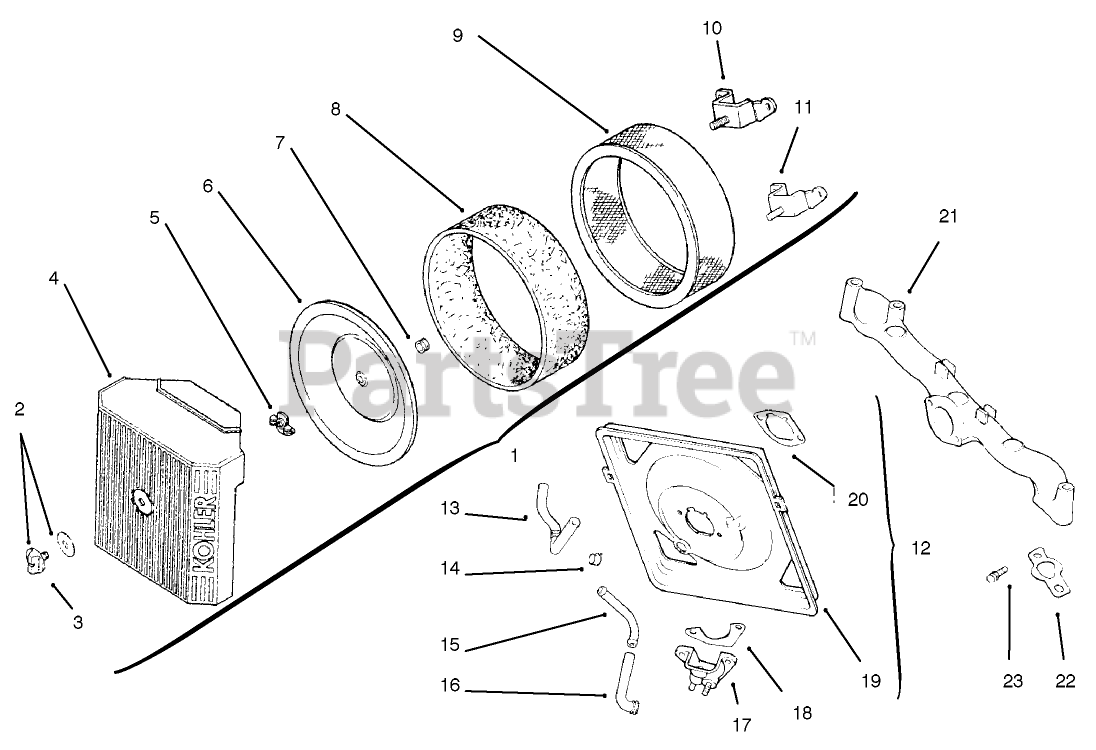

Air Intake/filtration-Kohler Cv20s-Ps65531 And Ps65532 Parts Diagram

  • Title

1

Toro 24 743 05

Kit-Air Cleaner Cover

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 24 755 91

Kit-Knob w/Gasket

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 25 341 02

Knob-Cover

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro 24 096 24

Cover-Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

12_100_01

Nut-Wing

Note: Obtain Parts From Kohler

$

$

Not available

6

Toro 24_096_01

Cover-Inner Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 24_032_03

Seal-Air Intake (Only On: 72103)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 24_083_02

Element-Precleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 47_083_03

Element-Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro 24 126 21

Bracket-Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 24 126 43

Bracket-Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 24 755 86

Kit-Air Cleaner Base

Note: Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 24 326 13

Hose-Breather

Note: Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro X-426-9

Clamp

Note: Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 24 294 06

Fitting

Note: Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 24 326 14

Hose-Breather

Note: Obtain Parts From Kohler

$

$

Currently unavailable

17

Toro 24 109 06

Cup-Fuel Spitback

Note: Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro 24 041 13

Gasket-Fuel Spitback Cup (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 24 094 14

Base-Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

20

Toro 24 041 14

Gasket-A/C Base (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

21

Toro 24_164_06

Manifold-Intake (Only On: 72103)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

22

Toro 24_041_01

Gasket-Intake Manifold

Note: Obtain Parts From Kohler

$

$

Currently unavailable

23

Toro M-0651055

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable
