72108 (270-H) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) Head/valve/breather-Kohler Cv20s-Ps65531 And Ps65532 Parts Diagram

Lawn & Garden Tractor

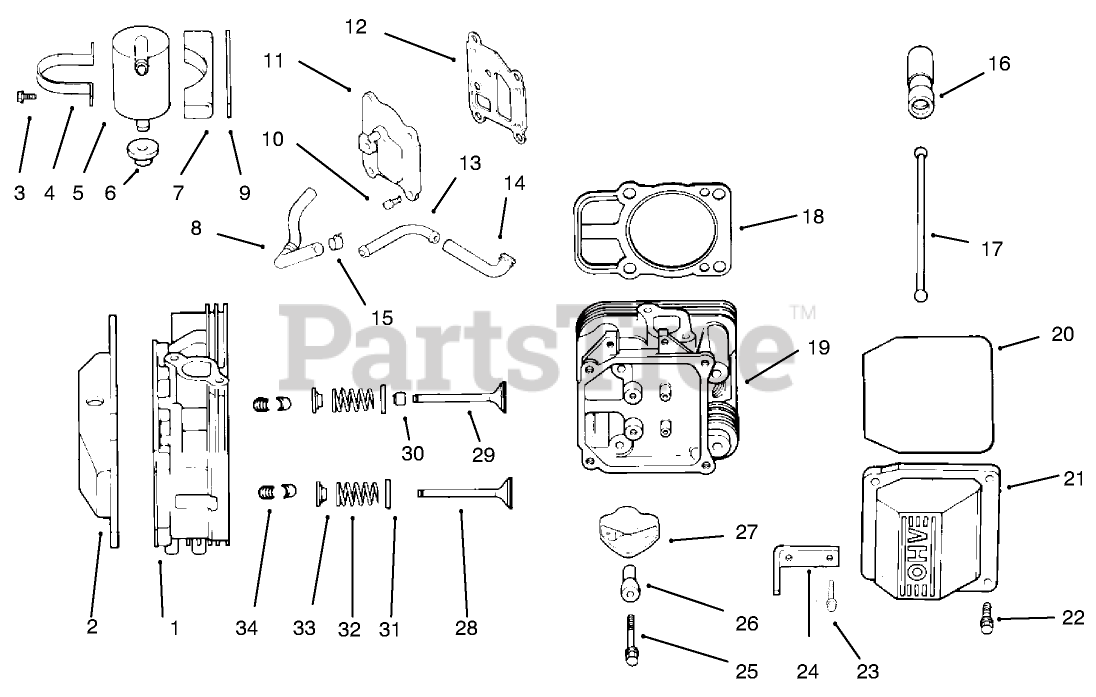

Head/valve/breather-Kohler Cv20s-Ps65531 And Ps65532 Parts Diagram

  • Title

1

Toro 24 318 11

Head ASM-#1 Cylinder (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 24 755 76

Kit-Valve Incl 6 20-22

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro 24 445 02

Strap-Lifting

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 24 755 57

Kit-Breather Incl 3-9

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro 25_313_02

Grommet-Rubber (Only On: 72103)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 24 126 44

Bracket

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 24 326 13

Hose-Breather

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 24 112 12

Spacer

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro M-0645020

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 24_096_15

Cover-Breather (Only On: 72103)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 24_041_23

Gasket-Breather

Note: Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 24 294 06

Fitting

Note: Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro 24 326 14

Hose-Breather

Note: Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro X-426-9

Clamp

Note: Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 12_351_01

Lifter-Valve

Note: Obtain Parts From Kohler

$

$

Currently unavailable

17

Toro 24 411 05

Rod-Push

Note: Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro 24_041_08

Gasket-Cylinder Head

Note: Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 24 318 12

Head ASM-#2 Cylinder (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

20

Toro 24_153_12

O-Ring

Note: Obtain Parts From Kohler

$

$

Currently unavailable

21

Toro 24_755_74

Kit-Valve Cover (Incl. Ref. #2 3)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

22

Toro 24_086_32

Screw-Shoulder

Note: Obtain Parts From Kohler

$

$

Currently unavailable

23

12_086_16

Screw

Note: Obtain Parts From Kohler

$

$

Not available

24

Toro 24_445_01

Strap-Lifting

Note: Obtain Parts From Kohler

$

$

Currently unavailable

25

Toro M-0640034

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

26

Toro 24 599 01

Pivot-Arm, Rocker

Note: Obtain Parts From Kohler

$

$

Currently unavailable

27

Toro 25 186 01

Arm-Rocker

Note: Obtain Parts From Kohler

$

$

Currently unavailable

28

Toro 24_016_01

Valve-Exhaust

Note: Obtain Parts From Kohler

$

$

Currently unavailable

28

Toro 24_016_02

Valve-Exhaust (.25)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

29

Toro 24_017_01

Valve-Intake

Note: Obtain Parts From Kohler

$

$

Currently unavailable

29

Toro 24_017_02

Valve-Intake (.25)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

30

Toro 24_032_05

Seal-Valve Stem

Note: Obtain Parts From Kohler

$

$

Currently unavailable

31

Toro 235011

Retainer-Spring

Note: Obtain Parts From Kohler

$

$

Currently unavailable

32

Toro 24_089_02

Spring-Valve

Note: Obtain Parts From Kohler

$

$

Currently unavailable

33

Toro 12_173_01

Cap-Valve Spring

Note: Obtain Parts From Kohler

$

$

Currently unavailable

34

Toro 12_755_03

Kit-Retainer

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 24 033 03

Kit-Breather Incl11-12

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 24 755 66

Kit-Valve Incl 1726-27

Note: Obtain Parts From Kohler

$

$

Currently unavailable
