72110 (270-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) CRANKCASE Parts Diagram

Lawn & Garden Tractor

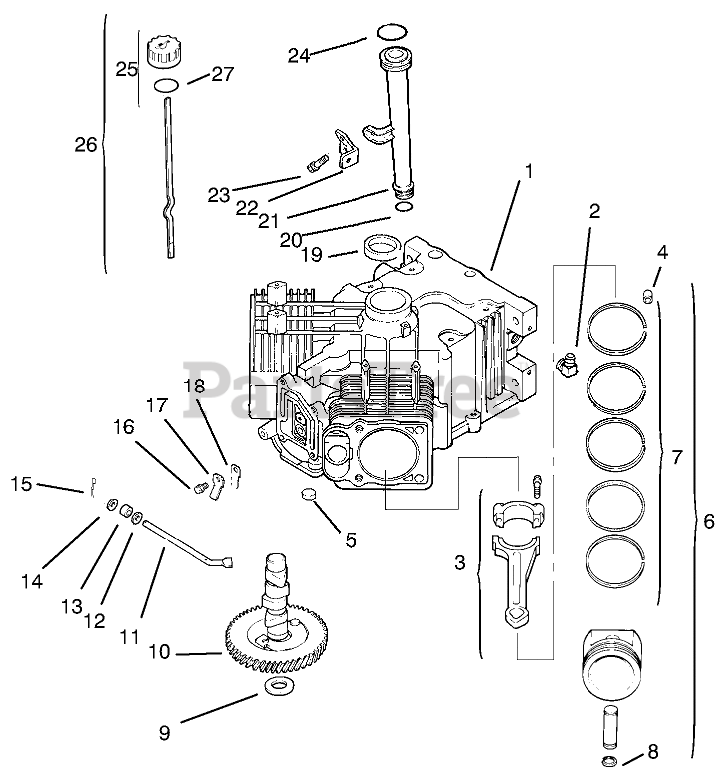

CRANKCASE Parts Diagram

  • Title

1

2452209

Short Block

$

$

Not available

2

Toro 25 155 02

Connector

$

$

Currently unavailable

3

2406701

Connecting Rod STD

$

$

Not available

3

2406702

Connecting Rod .25

$

$

Not available

4

1238003

Pin-Dowel

Note: Included in a service kit or in an assembly

$

$

Not available

5

52 139 09

Plug

$

$

Not available

6

24 874 01

Piston ASM STD INC4/7/8

$

$

Not available

6

2487402

Set-Piston w/Ring .25

$

$

Not available

6

24 874 03

Piston ASM .50 INC4/7/8

$

$

Not available

7

2410801

Ring Set(Std.)

Note: Included in a service kit or in an assembly

$

$

Not available

7

2410802

Set-Ring .25

$

$

Not available

7

2410803

Set-Ring .50

$

$

Not available

8

24 018 01

Retainer-Piston Pin

Note: Included in a service kit or in an assembly

$

$

Not available

9

12 422 07

Shim-Camshaft

$

$

Not available

9

12 422 08

Shim-Camshaft

$

$

Not available

9

12 422 09

Shim-Camshaft

$

$

Not available

9

12 422 10

Shim-Camshaft

$

$

Not available

9

12 422 11

Shim-Camshaft

$

$

Not available

9

12 422 12

Shim-Camshaft

$

$

Not available

9

12 422 13

Shim-Camshaft

$

$

Not available

10

2401205

Camshaft

$

$

Not available

11

2414401

Shaft-Governor Cross

$

$

Not available

12

Toro X-25-63

Washer

$

$

Currently unavailable

13

1203201

Seal-Cross Shaft

$

$

Not available

14

Toro X-25-102

Washer

$

$

Currently unavailable

15

1238004

Pin-Hitch

$

$

Not available

16

Toro M-0545010

Screw

$

$

Currently unavailable

17

2401804

Retainer-Reed

$

$

Not available

18

2440201

Beed-Breather

$

$

Not available

19

24 032 01

Seal-Oil

$

$

Not available

20

1215301

"O"Ring

$

$

Not available

21

1212304

Tube-Oil Fill

$

$

Not available

22

2412619

Bracket-Oil Tube

$

$

Not available

23

Toro M-0549016

Screw

$

$

Currently unavailable

24

1215302

"O"Ring

$

$

Not available

25

2403804

Dipstick INC 26-27

$

$

Not available

26

2575513

Kit-Oil Fill Cap

Note: Included in a service kit or in an assembly

$

$

Not available

27

1215303

"O"Ring

Note: Included in a service kit or in an assembly

$

$

Not available

2475503

Gasket Set

Note: Not illustrated

$

$

Not available
