72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 412436443) Power Frame Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

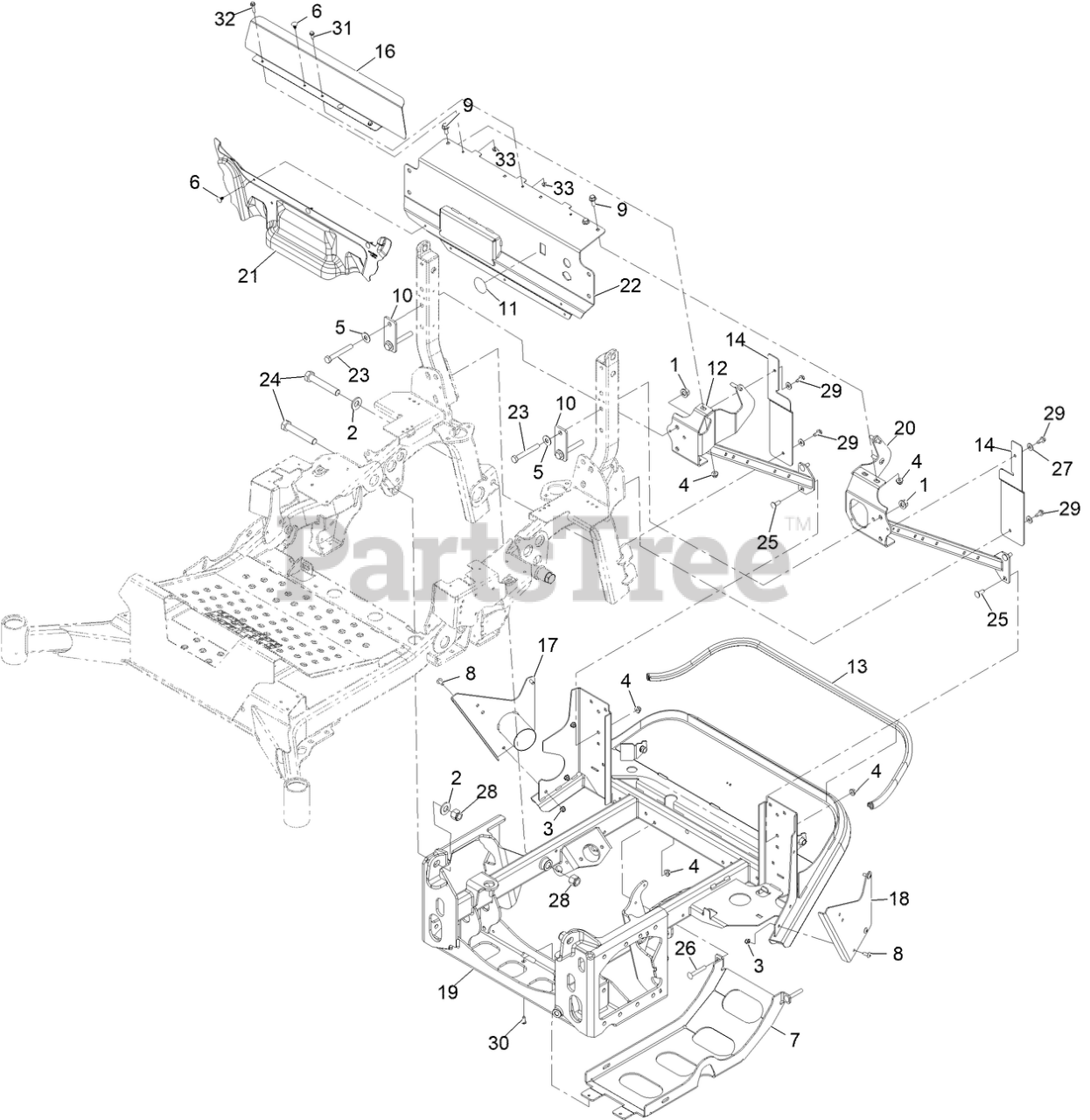

Power Frame Assembly Parts Diagram

  • Title

1

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, only 3 left!

0

2

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 11

0

6

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

7

Toro 126-5922-03

PLATE-SKID

$232.99

$

Usually ships in 3-6 days

0

8

Toro 126-6268

SCREW-TORX

$1.99

$

In Stock, only 2 left!

0

9

Toro 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 135-0412-03

PLATE-SPACER

$8.49

$

Usually ships in 3-6 days

0

11

Toro 135-3728

DECAL-COVER

$3.49

$

Usually ships in 3-6 days

0

12

Toro 142-2353-03

WLDMT-ROPS RH BRACE

$359.99

$

Usually ships in 3-6 days

0

13

Toro 142-3172

SEAL-BULB

$74.99

$

Usually ships in 3-6 days

0

14

Toro 142-3197

SHEET-ROPS AIRDAM

$

$

Currently unavailable

16

Toro 142-7218-03

SHIELD-AIR

$45.99

$

Usually ships in 3-6 days

0

17

Toro 142-5785

PLATE-EXHAUST

$

$

Currently unavailable

18

Toro 142-5788-03

PLATE-BATTERY COVER

$

$

Currently unavailable

19

Toro 142-5154-03

FRAME, POWER [BLACK]

$

$

Currently unavailable

20

Toro 142-5163-03

WLDMT-ROPS LH BRACE

$359.99

$

Usually ships in 3-6 days

0

21

Toro 142-5165

PANEL-HEAT DEFLECTOR

$

$

Currently unavailable

22

Toro 142-8745

CHANNEL-CROSS, ASM

$

$

Currently unavailable

23

Toro 325-35

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

24

Toro 328-8

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

25

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

26

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

28

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 7

0

29

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 7

0

30

Toro 613381

SCREW-BHTF

$5.49

$

In Stock, only 4 left!

0

31

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

32

Toro 127-8639

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

33

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
