72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414759689) Seat Mounting Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

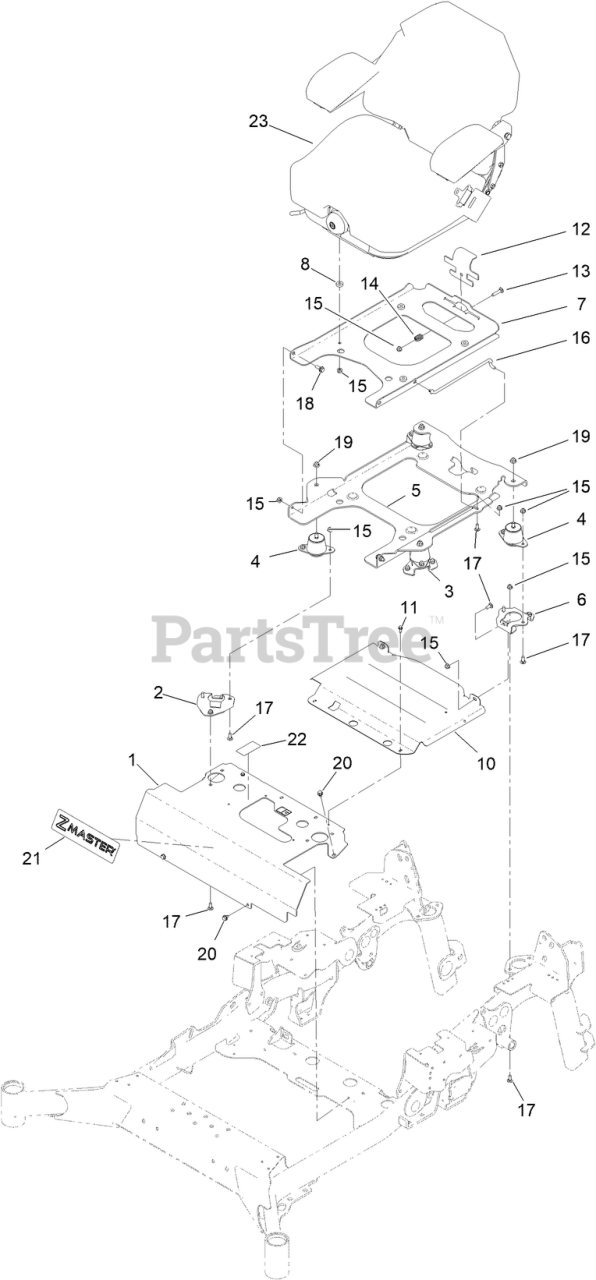

Seat Mounting Assembly Parts Diagram

  • Title

1

Toro 142-6618

MOUNT-SEAT W/DECALS

$252.99

$

Usually ships in 3-6 days

0

2

Toro 142-6658-03

RISER-SEAT MOUNT, R

$38.99

$

Usually ships in 0 days

0

3

Toro 142-6659-03

RISER-SEAT MOUNT, L

$38.99

$

Usually ships in 0 days

0

4

Toro 109-9034

ISOLATOR-SEAT

$72.99

$

In Stock, only 2 left!

0

5

Toro 142-4142-03

PLATE,TILT SEAT SUPPORT

$246.99

$

Usually ships in 0 days

0

6

Toro 142-6651-03

RISER-SEAT MOUNT, REAR

$38.99

$

Usually ships in 0 days

0

7

Toro 126-2700-03

PLATE-FRAME, SEAT

$113.99

$

Usually ships in 3-6 days

0

8

Toro 26-4840

See Supercession: 5-0652

$6.99

$

In Stock, only 2 left!

0

10

Toro 142-7215-03

HEAT SHIELD - SEAT

$

$

Currently unavailable

11

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 20+

0

12

Toro 126-1855

PLATE, SEAT LATCH

$20.99

$

Usually ships in 3-6 days

0

13

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 8

0

14

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 116-0070

ROD-PROP

$22.99

$

Usually ships in 3-6 days

0

17

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 9266934

SCREW

$9.49

$

In Stock, Qty 7

0

21

Toro 140-1215

DECAL-CONSOLE

$10.99

$

In Stock, only 2 left!

0

22

Toro 135-2837

DECAL-FLUID, TRANSMISSION

$22.99

$

Usually ships in 3-6 days

0

23

Toro 142-7524

ASM-SUSPENSION SEAT, TORO

$1423.99

$

Usually ships in 3-6 days

0
