72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 416263217 - 416289421) Suction Manifold Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

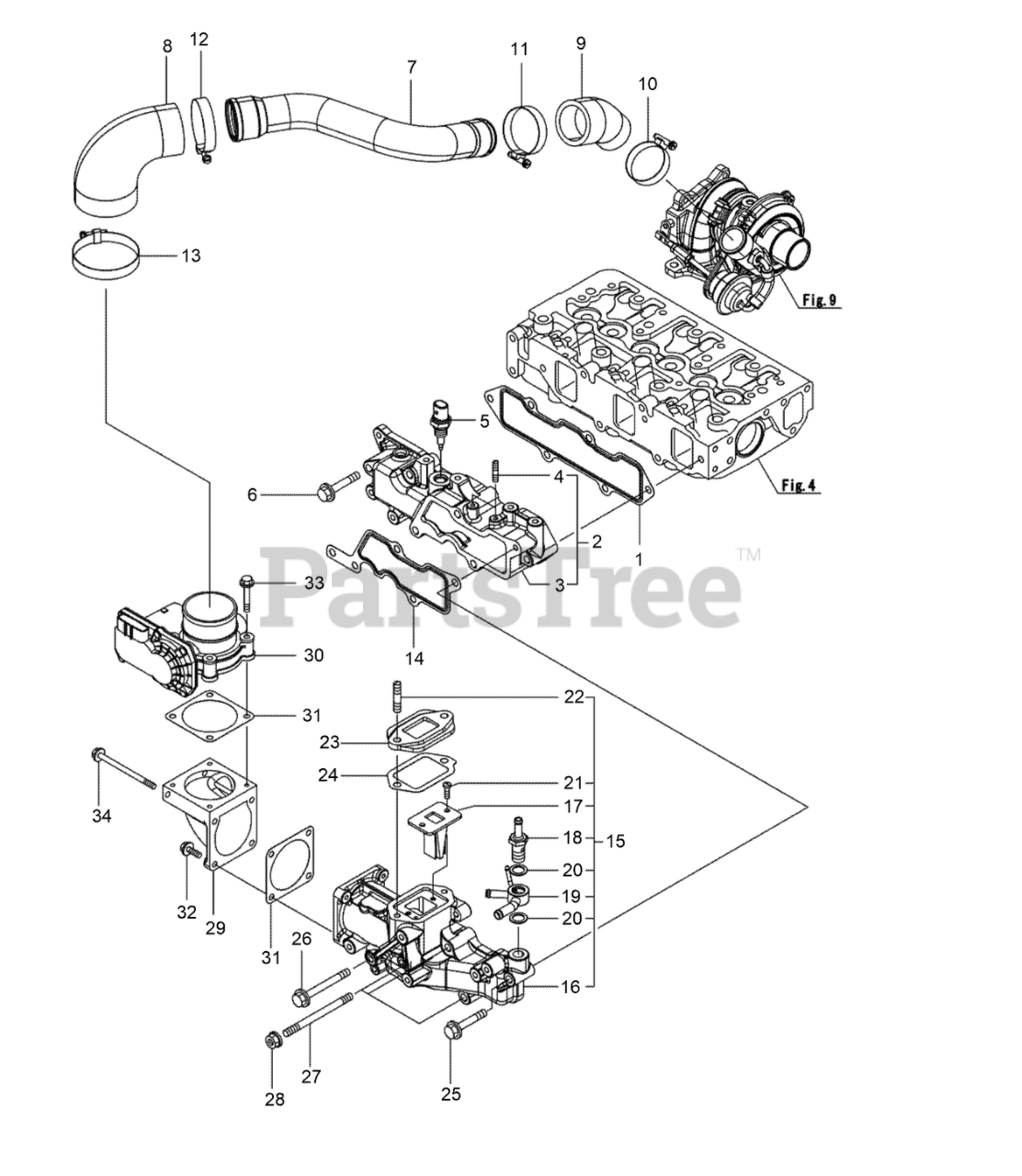

Suction Manifold Assembly Parts Diagram

  • Title

1

Toro 127-3769

GASKET-MANIFOLD, INTAKE

$15.99

$

Usually ships in 3-6 days

0

2

Toro 127-3770

INTAKE MANIFOLD ASM

$376.99

$

Usually ships in 3-6 days

0

3

Toro 127-3771

MANIFOLD-INTAKE, AIR

$376.99

$

Usually ships in 3-6 days

0

4

Toro 127-3180

STUD

$4.49

$

Usually ships in 3-6 days

0

5

Toro 137-5167

SENSOR-TEMPERATURE, AIR

$689.99

$

Usually ships in 3-6 days

0

6

Toro 125-7220

BOLT

$6.49

$

Usually ships in 3-6 days

0

7

Toro 127-3772

DUCT SUCTION

$184.99

$

Usually ships in 3-6 days

0

8

Toro 127-3096

JOINT-RUBBER

$415.99

$

Usually ships in 3-6 days

0

9

Toro 127-3773

JOINT, RUBBER

$86.99

$

Usually ships in 3-6 days

0

10

Toro 125-7189

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

11

Toro 127-3170

CLAMP-HOSE

$30.99

$

Usually ships in 3-6 days

0

12

Toro 125-7190

CLAMP-HOSE

$15.99

$

Usually ships in 3-6 days

0

13

Toro 127-3171

CLAMP-HOSE

$8.49

$

Usually ships in 3-6 days

0

14

Toro 127-3034

GASKET-COLLECTOR

$10.99

$

Usually ships in 3-6 days

0

15

Toro 127-3093

INTAKE COLLECTOR ASM

$662.99

$

Usually ships in 3-6 days

0

16

Toro 127-3092

COLLECTOR-INTAKE

$230.99

$

Usually ships in 3-6 days

0

17

Toro 127-3139

VALVE-REED

$212.99

$

Usually ships in 3-6 days

0

18

Toro 127-3080

JOINT-HOSE

$59.99

$

Usually ships in 3-6 days

0

19

Toro 127-3081

JOINT-HOSE

$

$

Currently unavailable

20

Toro 127-3166

WASHER-SEAL

$8.99

$

Usually ships in 3-6 days

0

21

Toro 127-3168

SCREW

$3.49

$

Usually ships in 3-6 days

0

22

Toro 138-7831

STUD, M8X 35

$5.49

$

Usually ships in 3-6 days

0

23

Toro 127-3045

SPACER-VALVE, E G R

$44.99

$

Usually ships in 3-6 days

0

24

Toro 127-3046

GASKET-E G R

$5.99

$

Usually ships in 3-6 days

0

25

Toro 125-7220

BOLT

$6.49

$

Usually ships in 3-6 days

0

26

Toro 127-3178

BOLT

$

$

Currently unavailable

27

Toro 127-3182

STUD

$

$

Currently unavailable

28

Toro 125-7229

NUT

$19.99

$

Usually ships in 3-6 days

0

29

Toro 127-3035

BEND-INLET

$

$

Currently unavailable

30

Toro 127-3036

BODY-THROTTLE

$1504.99

$

Usually ships in 3-6 days

0

31

Toro 127-3037

GASKET-THROTTLE

$3.49

$

Usually ships in 3-6 days

0

32

Toro 125-7209

BOLT

$3.49

$

Usually ships in 3-6 days

0

33

Toro 125-7211

BOLT

$4.49

$

Usually ships in 3-6 days

0

34

Toro 127-3177

BOLT

$

$

Currently unavailable
