72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) Group 10-Air Intake/Filtration Assembly Parts Diagram

Garden Tractor

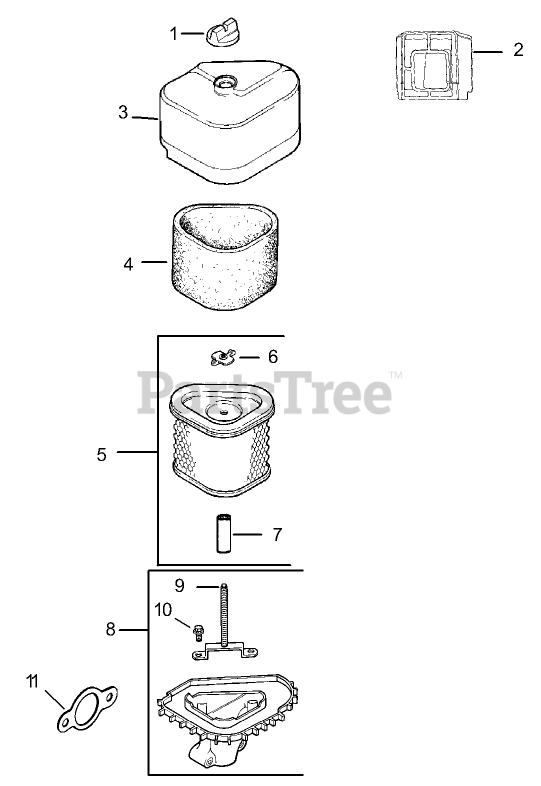

Group 10-Air Intake/Filtration Assembly Parts Diagram

  • Title

1

Toro 25 341 03-S

Knob-Cover

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

2

Toro 12 281 02-S

Duct-Air

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

3

Toro 12 096 44-S

Cover-Cleaner, Air

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

4

Toro 12 083 12-S

Element-Precleaner

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

5

Toro 12 083 10-S

Element-Air Cleaner (Incl 5, 7 8 )

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

6

Toro 12 100 01-S

NUT-WING

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

7

Toro 12 032 11-S

Seal

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

8

Toro 12 094 14-S

Base-Cleaner, Air (Includes 9,10)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

9

Toro 12 072 04-S

Stud

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

10

Toro 12 086 01-S

Screw

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

11

Toro 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 113 04-S

Decal-Cleaner, Air

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 113 04-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Currently unavailable
