72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) Group 5-Ignition/Electrical Assembly Parts Diagram

Garden Tractor

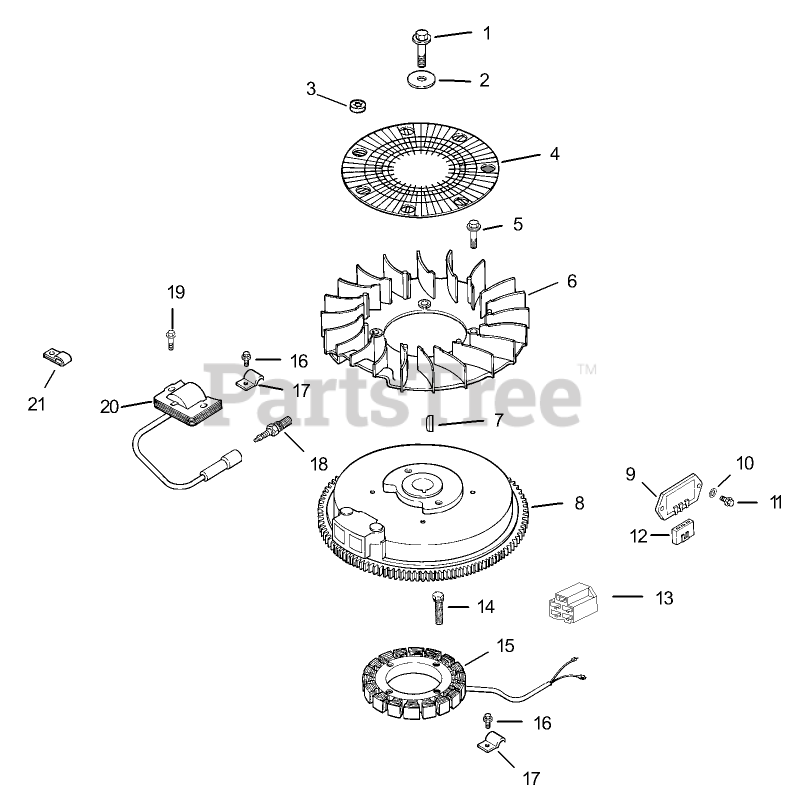

Group 5-Ignition/Electrical Assembly Parts Diagram

  • Title

1

Toro 12 086 14-S

SCREW-FLANGE (M10X1.5X45)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

2

Toro 12 468 03-S

WASHER-FLAT (13/32)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

3

Toro 24 018 03-S

Retainer

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

4

Toro 24 162 03-S

Screen-Grass

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

5

Toro 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

6

Toro 12 157 06-S

Fan

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

7

Toro X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

8

Toro 12 025 15-S

Flywheel

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

9

Toro 41 403 09-S

Rectifier-Regulator

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

10

Toro X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

11

Toro 12 086 42-S

Screw-HF (M6x1.0x16)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

12

Toro 236602-S

Connector (3 contact)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

13

Toro 48 155 01-S

Connector (5 contact)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

14

Toro M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

15

Toro 237878-S

Kit, Stator (Incl. Terminal 25 452 01-S)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

16

Toro M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

17

Toro X-728-1-S

Clip

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

18

Toro 12 132 02-S

SPARK PLUG

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

19

Toro M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

20

Toro 12 584 04-S

Module-Ignition

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

21

Toro 12 154 07-S

Clip

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 25 452 01-S

Terminal

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 25 452 01-S

Terminal

Note: Not illustrated

$

$

Currently unavailable

Toro 12 518 01-S

Lead

Note: Not illustrated

$

$

Currently unavailable

Toro 12 518 01-S

Lead

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 24 518 12-S

Lead-Black

Note: Not illustrated

$

$

Currently unavailable

Toro 24 518 12-S

Lead-Black

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable
