72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) Group 8-Fuel System Assembly Parts Diagram

Garden Tractor

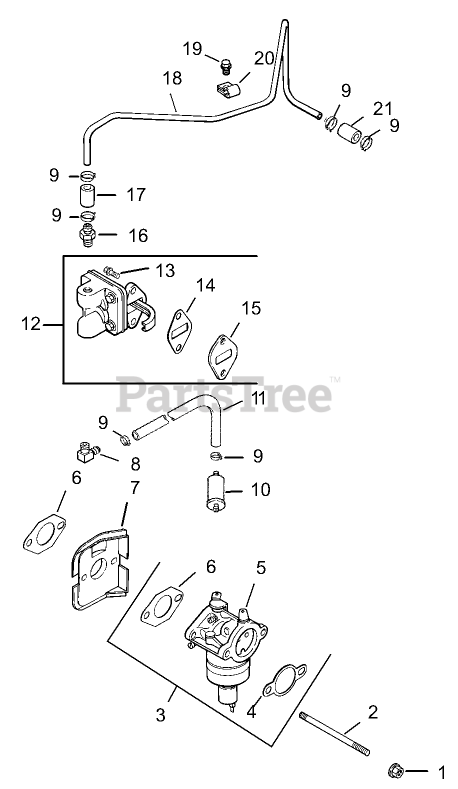

Group 8-Fuel System Assembly Parts Diagram

  • Title

1

Toro M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

2

Toro M-629116-S

Stud (M6x1.0x116)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

3

Toro 12 853 131-S

Kit, carburetor w/gaskets (Includes 4, 5, 6 [qty. 1], Terminal 25 452 20-S, Tie 12 454 03-S)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

4

Toro 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

5

Toro 12 053 131

Carburetor ASM

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

6

Toro 12 041 01-S

Gasket-Carburetor

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

7

Toro 12 265 06-S

Deflector-Heat

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

8

Toro 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

9

Toro 25 237 14-S

CLAMP-HOSE, SPRING (1/2)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

10

Toro 25 050 07-S

Filter-Fuel

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

11

Toro 25 353 02-S

Line-Fuel (3in)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

12

Toro 12 559 01-S

Kit-Pump (Incl 13-15)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

13

Toro M-645020-S

SCREW-HHFTF (M6X1.0X20)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

14

Toro 25 041 09-S

Gasket-Pump, Fuel

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

15

Toro 12 112 05-S

Spacer-Pump, Fuel

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

16

Toro 25 326 03-S

Connector-Hose, Straight

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

17

Toro 12 353 01-S

Line-Fuel (1-1/4in)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

18

Toro 12 123 19-S

Line-Fuel. Metal

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

19

Toro M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

20

Toro 12 154 01-S

CLAMP-INSULATED

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

21

Toro 41 353 18-S

Line-Fuel (2-1/2in)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 757 02-S

Float Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 757 02-S

Float Repair Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 03-S

Carburetor Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 757 33-S

Solenoid Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 757 33-S

Solenoid Repair Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 37-S

Bowl Replacement Repair Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 37-S

Bowl Replacement Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 518 24-S

Lead-Red (20in-18 gauge-insulated socket and uninsulated push on tab terminals)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 518 24-S

Lead-Red (20in-18 gauge-insulated socket and uninsulated push on tab terminals)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro 12 454 03-S

Tie-Wire

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable

Toro M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Used to attach carburetor ground lead to carburetor baffle.

$

$

Currently unavailable

Toro X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Used to attach carburetor ground lead to carburetor baffle.

$

$

Currently unavailable

Toro X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Currently unavailable
