72200 (416 XT) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) HEAD/VALVE/BREATHER ASSEMBLY KOHLER VS460S-26518 Parts Diagram

Garden Tractor

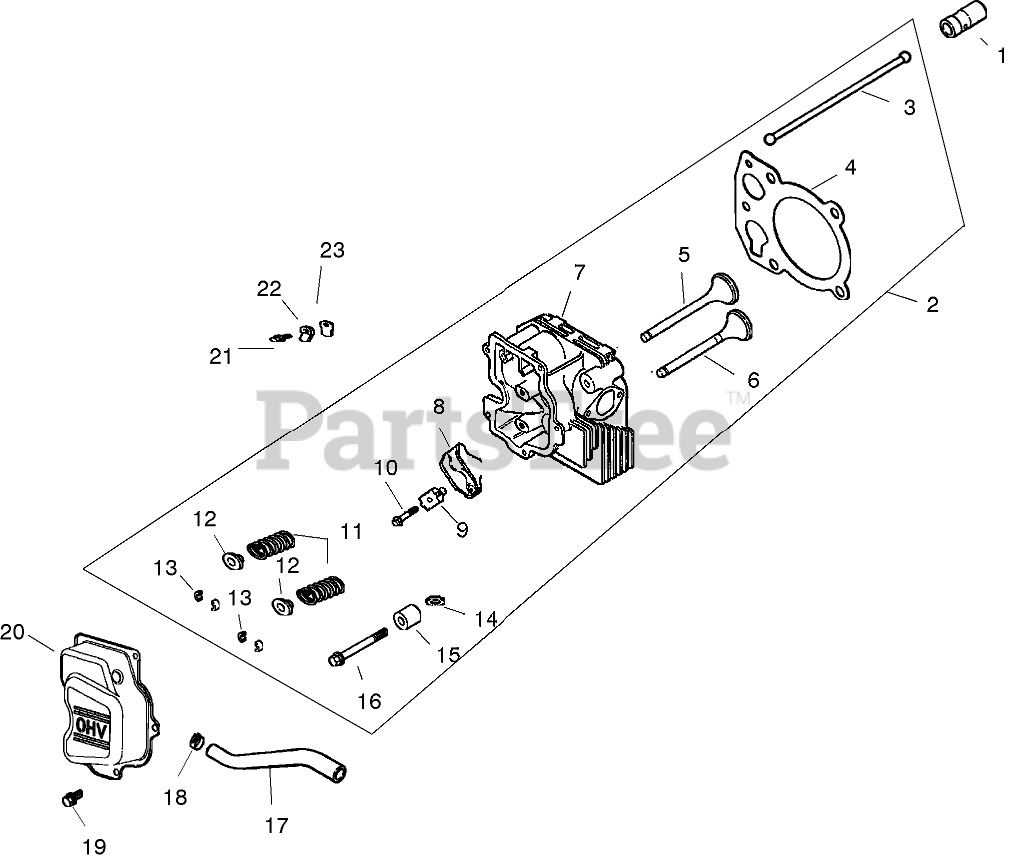

HEAD/VALVE/BREATHER ASSEMBLY KOHLER VS460S-26518 Parts Diagram

  • Title

1

Kohler 25 351 01-S

Lifter-Valve
(Superseded to 25 351 11-S)

Note: Obtain parts from your local Kohler dealer.

$29.99

$

In Stock, Qty 20+

0

2

Kohler 12 755 97-S

Cylinder Head Kit (Includes 3-17, carburetor gasket (2), air cleaner base gasket, exhaust manifold gasket)

Note: Obtain parts from your local Kohler dealer.

$

$

Not available

3

Kohler 12 411 05-S

Rod-Push

Note: Obtain parts from your local Kohler dealer.

$

$

Not available

4

Kohler 12 041 08-S

Gasket-Head, Cylinder

Note: Obtain parts from your local Kohler dealer.

$20.99

$

Usually ships in 2-5 days

0

5

Kohler 12 017 01-S

Valve-Intake (STD)

Note: Obtain parts from your local Kohler dealer.

$40.99

$

In Stock, only 2 left!

0

6

Kohler 12 016 01-S

Valve-Exhaust (STD)

Note: Obtain parts from your local Kohler dealer.

$68.99

$

Usually ships in 2-5 days

0

7

Kohler 12 318 50-S

Head-Cylinder

Note: Obtain parts from your local Kohler dealer.

$273.99

$

Usually ships in 2-5 days

0

8

Kohler 25 186 01-S

ARM-ROCKER

Note: Obtain parts from your local Kohler dealer.

$12.99

$

In Stock, only 3 left!

0

9

Kohler 12 599 03-S

Pivot-Arm, Rocker

Note: Obtain parts from your local Kohler dealer.

$2.49

$

Usually ships in 2-5 days

0

10

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

Note: Obtain parts from your local Kohler dealer.

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 12 089 34-S

Spring-Valve

Note: Obtain parts from your local Kohler dealer.

$10.99

$

In Stock, only 2 left!

0

12

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from your local Kohler dealer.

$8.49

$

In Stock, only 4 left!

0

13

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from your local Kohler dealer.

$5.99

$

In Stock, Qty 10

0

14

Kohler 12 468 05-S

Washer-Flat (1/2)

Note: Obtain parts from your local Kohler dealer.

$2.99

$

In Stock, only 3 left!

0

15

Kohler 12 112 13-S

Spacer-Head Bolt (Exhaust Port)

Note: Obtain parts from your local Kohler dealer.

$10.99

$

Usually ships in 2-5 days

0

16

Kohler 20 086 02-S

Screw-Flange, Hex (M10x1.5x37)

Note: Obtain parts from your local Kohler dealer.

$3.99

$

In Stock, only 4 left!

0

17

Kohler 12 326 18-S

Hose-Breather
(Superseded to 12 326 30-S)

Note: Obtain parts from your local Kohler dealer.

$27.99

$

In Stock, only 1 left!

0

18

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from your local Kohler dealer.

$5.99

$

In Stock, Qty 12

0

19

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from your local Kohler dealer.

$4.99

$

In Stock, only 4 left!

0

20

Kohler 12 096 47-S

Cover-Valve

Note: Obtain parts from your local Kohler dealer.

$22.99

$

In Stock, only 1 left!

0

21

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from your local Kohler dealer.

$4.49

$

Usually ships in 2-5 days

0

22

Kohler 12 018 01-S

Retainer-Reed, Breather
(Superseded to 66 018 04-S)

Note: Obtain parts from your local Kohler dealer.

$4.99

$

In Stock, Qty 10

0

23

Kohler 12 402 02-S

REED-BREATHER

Note: Obtain parts from your local Kohler dealer.

$3.99

$

In Stock, only 1 left!

0

Kohler 12 017 02-S

Valve-Intake (.25)

Note: Obtain parts from your local Kohler dealer.

$30.99

$

In Stock, only 1 left!

0

Kohler 12 017 02-S

Valve-Intake (.25)

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0

Kohler 12 016 02-S

Valve-Exhaust (.25)

Note: Not illustrated

$

$

Not available

Kohler 12 016 02-S

Valve-Exhaust (.25)

Note: Obtain parts from your local Kohler dealer.

$

$

Not available

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from your local Kohler dealer.

$2.49

$

In Stock, Qty 20+

0

Kohler 12 041 01-S

Gasket-Carburetor

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from your local Kohler dealer.

$2.99

$

In Stock, Qty 20+

0

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain parts from your local Kohler dealer.

$7.49

$

In Stock, Qty 16

0

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Not illustrated

$7.49

$

In Stock, Qty 16

0
