72201 (417 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) CARBURETOR ASSEMBLY KAWASAKI FH541V-AS04 Parts Diagram

Garden Tractor

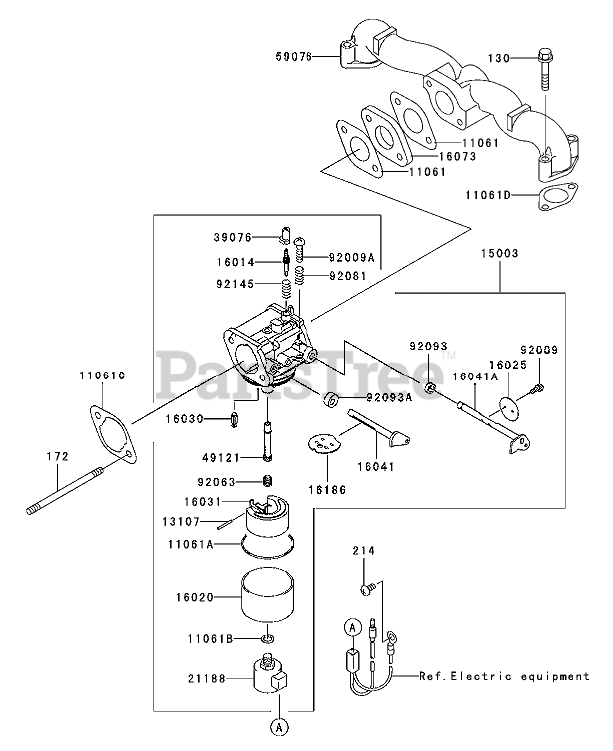

CARBURETOR ASSEMBLY KAWASAKI FH541V-AS04 Parts Diagram

  • Title

11061

Kawasaki 11061-7004

GASKET-INSULATOR
(Superseded to 11060-7003)

$2.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7009

GASKET-CHAMBER

$2.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7010

GASKET-SCREW

$3.49

$

In Stock, Qty 20+

0

11061C

Kawasaki 11061-7018

GASKET-CLEANER, AIR
(Superseded to 11060-7004)

$3.99

$

In Stock, Qty 20+

0

11061D

Kawasaki 11061-7019

Gasket
(Superseded to 11060-7005)

$2.49

$

In Stock, Qty 20+

0

13107

Kawasaki 13107-7018

Shaft

$4.49

$

In Stock, Qty 7

0

15003

Kawasaki 15003-7086

Carburetor ASM

$361.99

$

Usually ships in 2-5 days

0

16014

Kawasaki 16014-7007

SCREW-AIR, PILOT

$14.99

$

Usually ships in 2-5 days

0

16020

Kawasaki 16020-7003

Chamber-Float

$14.99

$

In Stock, only 3 left!

0

16025

Kawasaki 16025-7006

Valve-Throttle

$17.99

$

In Stock, Qty 5

0

16030

Kawasaki 16030-7003

Valve-Float

$20.99

$

In Stock, only 4 left!

0

16031

Kawasaki 16031-7002

Float

$28.99

$

In Stock, Qty 8

0

16041

Kawasaki 16041-7016

SHAFT-CHOKE, CARBURETOR

$15.99

$

In Stock, Qty 5

0

16041A

Kawasaki 16041-7018

SHAFT-THROTTLE, CARBURETOR

$22.99

$

In Stock, Qty 5

0

16073

Kawasaki 16073-7007

Insulator
(Superseded to 16073-7001)

$

$

Not available

16186

Kawasaki 16186-7004

CHOKE VALVE ASM

$13.99

$

Usually ships in 2-5 days

0

21188

Kawasaki 21188-7002

Solenoid

$171.99

$

In Stock, only 2 left!

0

39076

Kawasaki 39076-7001

Limiter

$8.49

$

In Stock, only 4 left!

0

49121

Kawasaki 49121-7007

Nozzle-Main

$34.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-7001

Manifold-Intake
(Superseded to 59076-7017)

$

$

Not available

92009

Kawasaki 92009-2083

Screw
(Superseded to 31037A-6157A)

$2.49

$

In Stock, Qty 11

0

92009A

Kawasaki 92009-2349

Screw

$1.49

$

In Stock, Qty 5

0

92063

Kawasaki 92063-7046

JET-MAIN (No. 100)

$12.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2234

Spring

$4.49

$

In Stock, Qty 5

0

92093

Kawasaki 92093-2100

Seal

$3.49

$

In Stock, Qty 14

0

92093A

Kawasaki 92093-7003

Seal

$4.49

$

In Stock, only 1 left!

0

92145

Kawasaki 92145-7015

Spring

$2.49

$

In Stock, Qty 10

0

130

Kawasaki 130B0635

Bolt-Flanged (6X35)
(Superseded to 130AA0635)

$1.99

$

In Stock, Qty 16

0

172

Kawasaki 172G0685

Bolt-Stud
(Superseded to 172BA0685)

$2.99

$

Usually ships in 2-5 days

0

214

Kawasaki 214B0510

SCREW-PAN (5X10)
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0
