72202 (419 XT) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) Engine, Muffler and PTO Assembly Parts Diagram

Garden Tractor

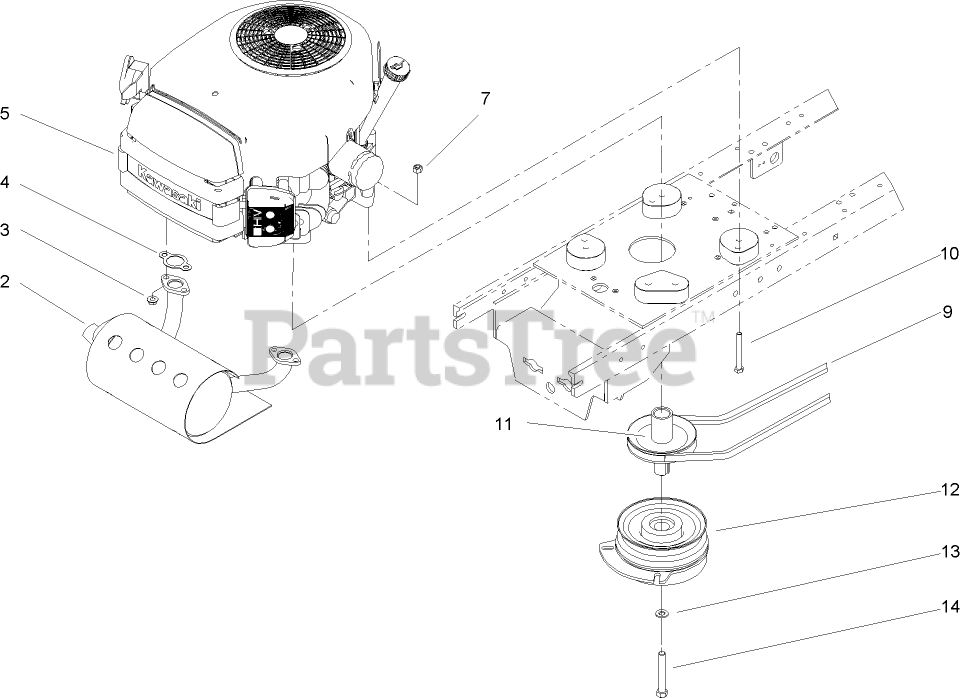

Engine, Muffler and PTO Assembly Parts Diagram

  • Title

2

Toro 106-5666

MUFFLER

$

$

Not available

3

Toro 92-6780

See Supercession: 33004-00
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 9

0

4

Toro 93-0350

See Supercession: 110-6697
(Superseded to 110-6697)

$3.49

$

Usually ships in 3-6 days

0

5

Loose Parts Package

Note: Not serviced separately

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 106-5813

V-BELT, TRACTION

$129.99

$

In Stock, only 1 left!

0

10

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 11

0

11

Toro 106-5665

PULLEY-ENGINE

$

$

Not available

12

Toro 106-4099

CLUTCH

$667.99

$

Usually ships in 3-6 days

0

13

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

14

Toro 3212-19

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0
