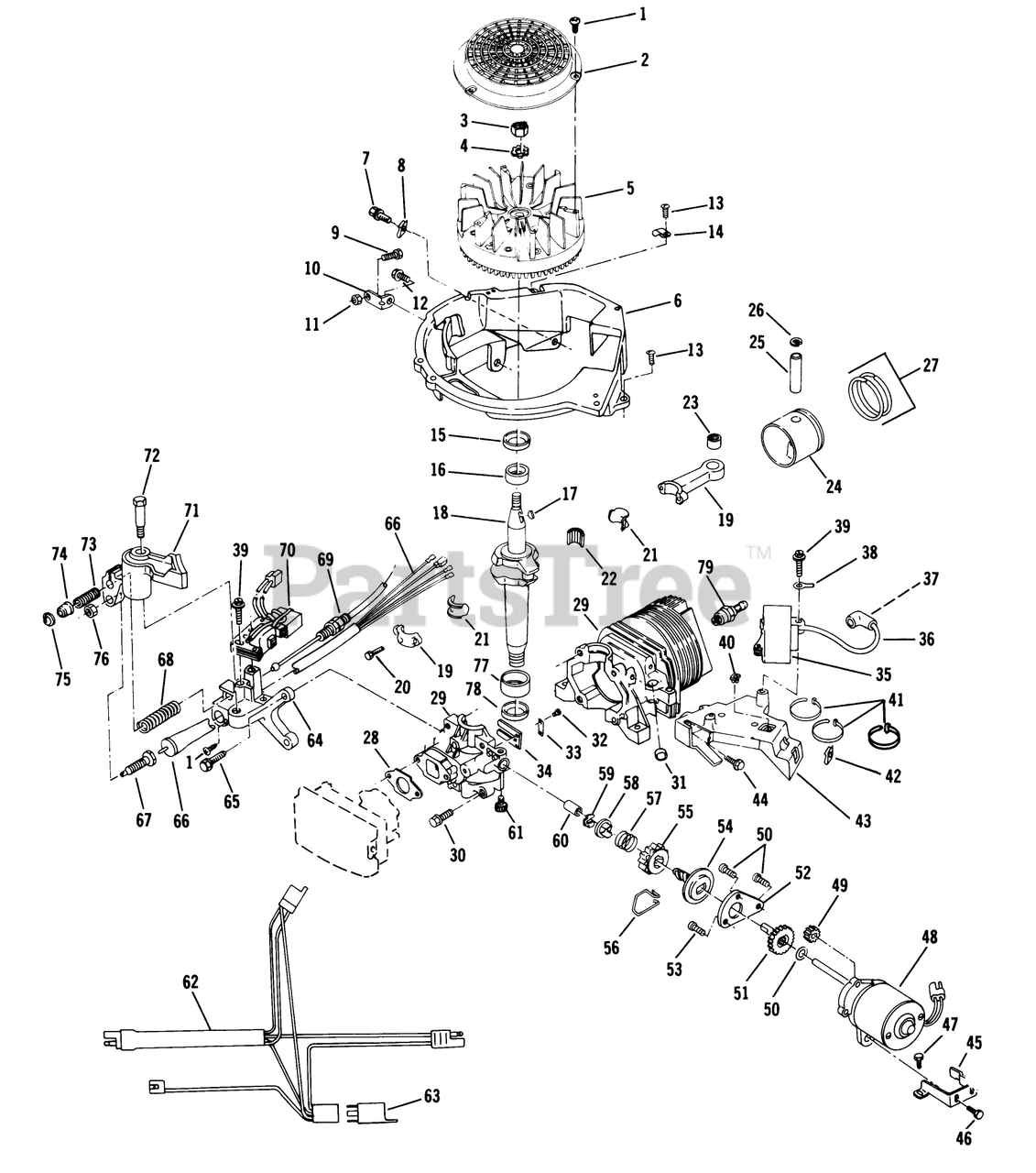

7232 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) Engine Group Models: 7271ae Parts Diagram

Walk-Behind Mower

Engine Group Models: 7271ae Parts Diagram

  • Title

1

Lawn-Boy 606537

SCREW F

$2.49

$

In Stock, Qty 5

0

2

Lawn-Boy 611375

SCREEN F'WHEEL S

$

$

Not available

3

Lawn-Boy 130743

NUT

$2.99

$

In Stock, Qty 7

0

4

Lawn-Boy 316959

See Supercession: 3253-6
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 682700

See Supercession: 683580
(Superseded to 683580)

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 611215

BASE SHROUD F

$

$

Not available

7

Lawn-Boy 609947

SCREW-SEMS

$9.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

DISCONTINUED

$

$

Not available

9

Lawn-Boy 603014

BOLT F

$2.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611512

DISCONTINUED

$

$

Not available

11

Lawn-Boy 608311

NUT-LOCK F

$2.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 307028

See Supercession: 614343
(Superseded to 614343)

$2.99

$

In Stock, only 4 left!

0

13

Lawn-Boy 609808

SCREW F

$11.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 611081

DISCONTINUED

$

$

Not available

15

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

$5.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 681830

BEARING V

$35.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 607199

KEY

$4.99

$

In Stock, Qty 10

0

18

Lawn-Boy 609421

See Supercession: 94-5713
(Superseded to 94-5713)

$284.99

$

Usually ships in 3-6 days

0

Lawn-Boy 682677

DISCONTINUED
(Superseded to 92-4925)

$

$

Not available

19

Lawn-Boy 682970

NEEDS DESCRIPTION
(Superseded to 92-4921)

$206.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 611393

SCREW-HSH

$19.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 677982

LINER ASM

$40.99

$

In Stock, only 3 left!

0

22

Lawn-Boy 677963

See Supercession: 683911
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

23

Lawn-Boy 679144

BEARING AY F

$

$

Not available

24

Lawn-Boy 682986

DISCONTINUED
(Superseded to 92-4923)

$

$

Not available

25

Lawn-Boy 606608

See Supercession: 94-5774
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 303712

RING-RETAINING

$2.99

$

In Stock, Qty 13

0

27

Lawn-Boy 681737

DISCONTINUED

$

$

Not available

28

Lawn-Boy 609476

GASKET CARB S

$

$

Not available

29

Lawn-Boy 683026

See Supercession: 683702
(Superseded to 683702)

$

$

Not available

Lawn-Boy 610372

SEALER-LOCTITE (6 ML TUBE)

$25.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 609918

SCREW S

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 609123

PLUG-CORE VF

$2.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

$2.49

$

In Stock, Qty 7

0

33

Lawn-Boy 602587

PLATE-BACKUP, REED

$2.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 602588

DISCONTINUED

$

$

Not available

35

Lawn-Boy 683215

See Supercession: 100-2948
(Superseded to 100-2948)

$107.99

$

In Stock, only 3 left!

0

Lawn-Boy 318535

Adhesive

$

$

Currently unavailable

36

Lawn-Boy 681678

HT LEAD&COVER XEV

$23.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 510231

See Supercession: 684698
(Superseded to 684698)

$6.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 609651

TERMINAL S

$

$

Not available

39

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

$2.99

$

In Stock, only 4 left!

0

40

Lawn-Boy 605120

NUT-CLIP

$3.99

$

In Stock, Qty 16

0

41

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

$1.49

$

In Stock, Qty 20+

0

42

Lawn-Boy 609475

NUT - SPEED S

$2.49

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611374

See Supercession: 613073
(Superseded to 613073)

$

$

Not available

44

Lawn-Boy 307028

See Supercession: 614343
(Superseded to 614343)

$2.99

$

In Stock, only 4 left!

0

45

Lawn-Boy 611339

BRACKET

$

$

Not available

46

Lawn-Boy 609579

SCREW

$

$

Not available

47

Lawn-Boy 609580

DISCONTINUED

$

$

Not available

Lawn-Boy 682806

STARTER ASSY F

$791.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 682807

See Supercession: 682806
(Superseded to 682806)

$791.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 611385

*PINION EF

$

$

Not available

50

Lawn-Boy 609568

See Supercession: 252-98
(Superseded to 252-98)

$

$

Not available

51

Lawn-Boy 611386

GEAR-DRIVEN

$50.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 611387

See Supercession: 613517
(Superseded to 613517)

$

$

Not available

53

Lawn-Boy 609130

SCREW EF

$2.49

$

Usually ships in 3-6 days

0

54

Lawn-Boy 682809

DISCONTINUED

$

$

Not available

55

Lawn-Boy 610258

PINION EF

$27.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 609229

SPRING F

$4.49

$

In Stock, Qty 6

0

57

Lawn-Boy 610257

*SPRING PINION EF

$5.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 609565

See Supercession: 613451
(Superseded to 613451)

$

$

Not available

59

Lawn-Boy 608622

RET.RING EF

$2.99

$

In Stock, only 4 left!

0

60

Lawn-Boy 609572

SLEEVE F

$35.99

$

In Stock, only 1 left!

0

61

Lawn-Boy 611073

See Supercession: 3274-10
(Superseded to 3274-10)

$9.99

$

In Stock, Qty 20+

0

62

Lawn-Boy 682777

DISCONTINUED

$

$

Not available

63

Lawn-Boy 682776

DISCONTINUED

$

$

Not available

64

Lawn-Boy 611337

BRACKET F

$

$

Not available

65

Lawn-Boy 609545

DISCONTINUED

$

$

Not available

66

Lawn-Boy 682995

DISCONTINUED

$

$

Not available

67

Lawn-Boy 611510

PLUNGER S

$5.49

$

Usually ships in 3-6 days

0

68

Lawn-Boy 611211

SPRING-BRAKE

$13.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 682933

See Supercession: 683041
(Superseded to 683041)

$114.99

$

Usually ships in 3-6 days

0

70

Lawn-Boy 683092

DISCONTINUED

$

$

Not available

71

Lawn-Boy 682683

DISCONTINUED

$

$

Not available

72

Lawn-Boy 611212

See Supercession: 613529
(Superseded to 613529)

$13.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 611214

SPRING

$8.49

$

In Stock, only 3 left!

0

74

Lawn-Boy 611509

ACTUATOR-LEVER, BRAKE

$4.99

$

In Stock, only 4 left!

0

75

Lawn-Boy 611213

RETAINER S

$1.99

$

In Stock, Qty 7

0

76

Lawn-Boy 304753

See Supercession: 700755
(Superseded to 700755)

$1.99

$

Usually ships in 3-6 days

0

77

Lawn-Boy 681831

BEARING V

$23.99

$

In Stock, only 4 left!

0

78

Lawn-Boy 611396

SEAL-OIL

$5.99

$

In Stock, Qty 20+

0

79

Lawn-Boy 605885

See Supercession: 614009
(Superseded to 614009)

$5.49

$

In Stock, Qty 20+

0
