724 E (31AE633E101) - Cub Cadet 24" Snow Thrower (1999) Wheel Assemblies Parts Diagram

24" Snow Thrower

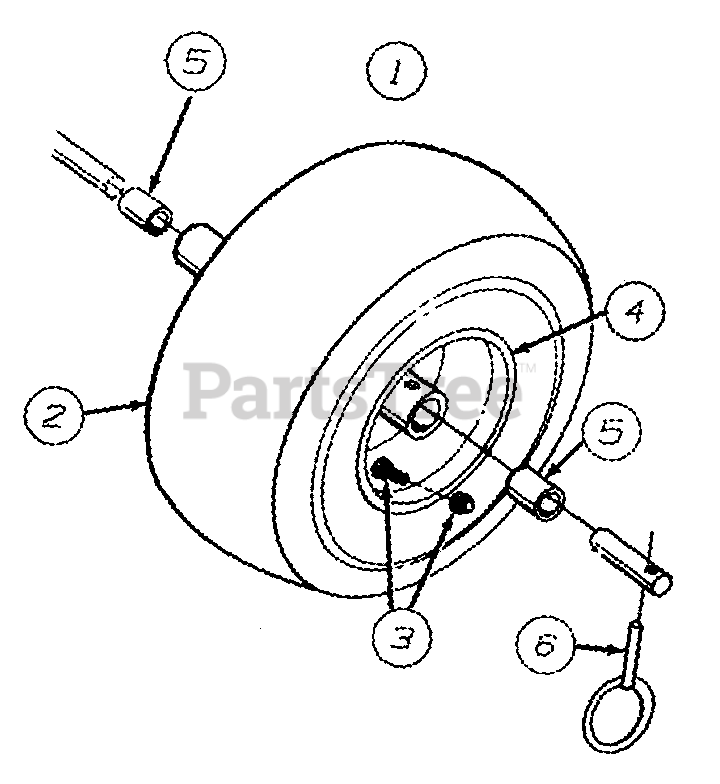

Wheel Assemblies Parts Diagram

  • Title

1

Cub Cadet 634-0114

Wheel Ass'y. Complete 13 x 4

Note: 522E

Variations

634-0114-0911

Cub Cadet 634-0114-0911

WHEEL ASSEMBLY - Carlisle Gray (0911)

$

$

Not available

634-0114-0912

Cub Cadet 634-0114-0912

WHEEL ASSEMBLY - Dico Gray (0912)

$

$

Not available

634-0114-0915

Cub Cadet 634-0114-0915

WHEEL ASSEMBLY - Duro Gray (0915)

$

$

Not available

634-0114-0931

Cub Cadet 634-0114-0931

WHEEL ASSEMBLY - Carlisle Beige (0931)

$

$

Not available

634-0114-0935

Cub Cadet 634-0114-0935

WHEEL ASSEMBLY - Duro Beige (0935)

$

$

Not available

634-0114-0941

Cub Cadet 634-0114-0941

WHEEL ASSEMBLY - Carlisle Yellow (0941)

$

$

Not available

634-0114-0942

Cub Cadet 634-0114-0942

WHEEL ASSEMBLY - Dico Yellow (0942)

$

$

Not available

634-0114-0945

Cub Cadet 634-0114-0945

WHEEL ASSEMBLY - Duro Yellow (0945)

$

$

Not available

634-0114-0981

Cub Cadet 634-0114-0981

WHEEL ASSEMBLY - Carlisle Green (0981)

$

$

Not available

634-0114-0985

Cub Cadet 634-0114-0985

WHEEL ASSEMBLY - Duro Green (0985)

$

$

Not available

$

$

1

Cub Cadet 634-0140

Wheel Ass'y. Complete 15 x 5

Note: 724E

Variations

634-0140-0911

Cub Cadet 634-0140-0911

WHEEL ASSEMBLY (15 x 5 x 6) - Carlisle Gray (0911)

$

$

Not available

634-0140-0931

Cub Cadet 634-0140-0931

WHEEL ASSEMBLY (15 x 5 x 6) - Carlisle Beige (0931)

$

$

Not available

634-0140-0941

Cub Cadet 634-0140-0941

WHEEL ASSEMBLY (15 x 5 x 6) - Carlisle Yellow (0941)

$

$

Not available

$

$

2

Cub Cadet 734-1732

Tire Only 13 x 4

Note: 522E

Variations

734-1732-0901

Cub Cadet 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$159.99

$

Usually ships in 3-6 days

0

734-1732-0904

Cub Cadet 734-1732-0904

USE 734-1732-0901 TIRE:SNOW H - Cheng (0904)

$159.99

$

Usually ships in 3-6 days

0

734-1732-0905

Cub Cadet 734-1732-0905

USE 734-1732-0901 TIRE:SNOW H - Duro (0905)

$159.99

$

Usually ships in 3-6 days

0

$139.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 734-1859

Tire Only 15 x 5
(Superseded to 734-1859-0901)

Note: 724E

Variations

734-1859-0901

Cub Cadet 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$111.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

Note: 522E or 724E

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 734-1713

Rim Only

Note: 522E or 724E

Variations

734-1713-0499

Cub Cadet 734-1713-0499

RIM ASSEMBLY 6.0 x 3.25 - CUB BEIGE (0499)

$

$

Not available

734-1713-0662

Cub Cadet 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

$

$

Not available

734-1713-0674

Cub Cadet 734-1713-0674

RIM ASSEMBLY 6.0 x 3.25 - YARDMAN YELLOW (0674)

$

$

Not available

734-1713-0688

Cub Cadet 734-1713-0688

RIM ASSEMBLY 6.0 x 3.25 - SPRING GREEN (0688)

$

$

Not available

$

$

5

Cub Cadet 741-0401

Sleeve Bearing
(Superseded to 941-0401)

Note: 522E or 724E

$7.99

$

In Stock, Qty 5

0

6

Cub Cadet 714-0143

Klick Pin
(Superseded to 714-0143A)

Note: 522E or 724E

$6.99

$

In Stock, only 2 left!

0
