724 TE (317E733E100) - Cub Cadet 24" Snow Thrower (1997) Drive 1 Parts Diagram

24" Snow Thrower

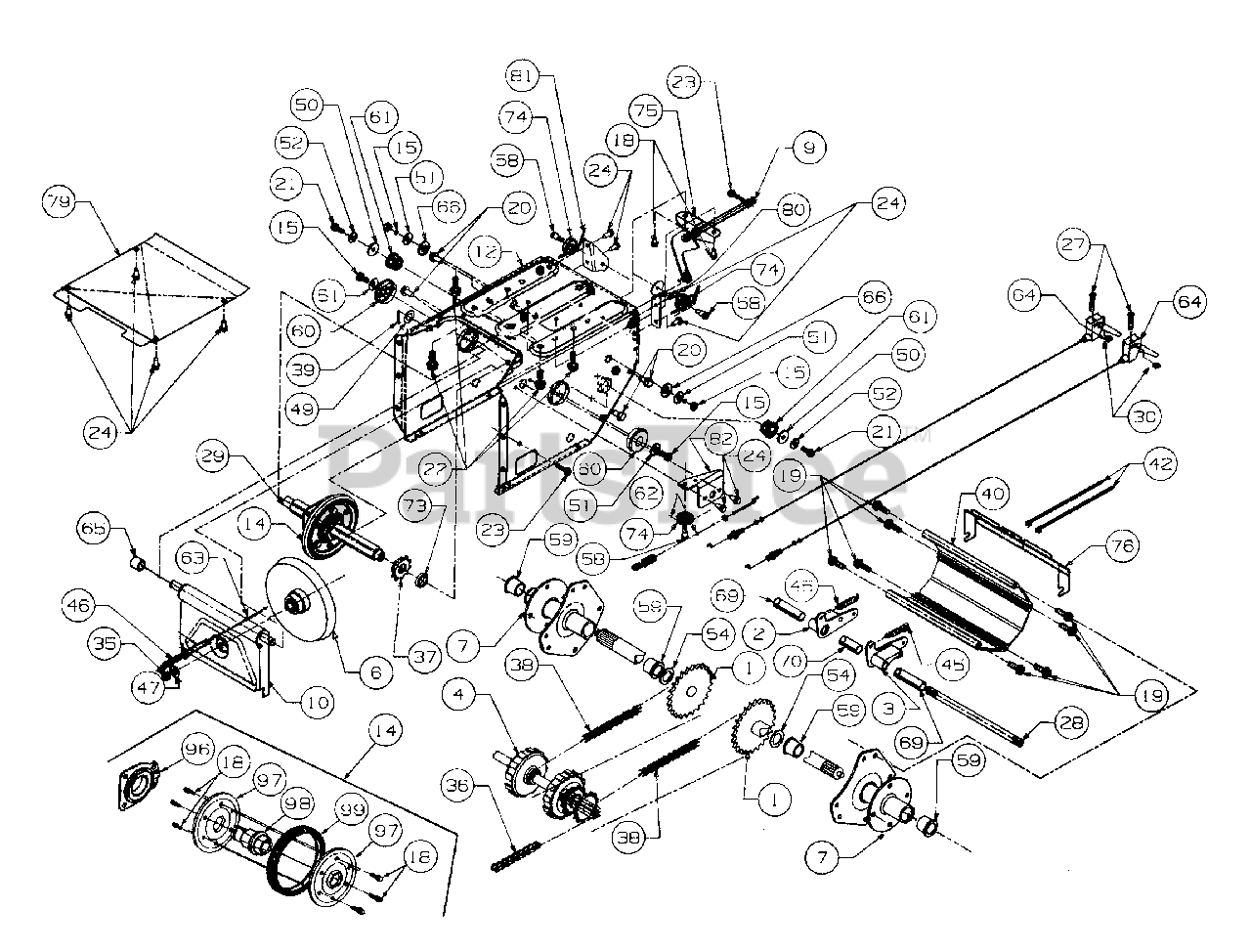

Drive 1 Parts Diagram

  • Title

1

Cub Cadet 611-0053

Axle Assembly

$90.99

$

In Stock, only 2 left!

0

2

Cub Cadet 618-0043

Dog Assembly, RH

$22.99

$

In Stock, only 1 left!

0

3

Cub Cadet 618-0044

Dog Assembly, LH

$22.99

$

In Stock, only 1 left!

0

4

Cub Cadet 618-0169

Steering Shaft Ass'y, Track
(Superseded to 918-0169B)

$321.99

$

Usually ships in 3-6 days

0

Cub Cadet 631-0032

Wheel Ass'y, Idler Track
(Superseded to 631-0032A)

$42.99

$

In Stock, only 2 left!

0

6

Cub Cadet 656-0012A

Disc Assembly, Friction
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

7

Cub Cadet 683-0024

Hub Assembly
(Superseded to 683-0024-0637)

Variations

Cub Cadet 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 684-0014A

Rod Assembly, Shift
(Superseded to 684-0014B-0637)

Variations

Cub Cadet 684-0014A-0637

Shift Rod Assembly - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

10

Cub Cadet 684-0021

Brkt. Ass'y, Friction Whl Support
(Superseded to 984-0021-0637)

Variations

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 684-0031

Frame Assembly
(Superseded to 984-0031)

Note: Code 0498

Variations

Cub Cadet 684-0031-0483

USE 753-06327 KIT-REPLACEMENT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0031-0499

USE 753-06327 KIT-REPLACEMENT - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 684-0031-0637

USE 753-06327 KIT-REPLACEMENT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0031-0650

USE 753-06327 KIT-REPLACEMENT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0031-0662

USE 753-06327 KIT-REPLACEMENT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0031-0665

USE 753-06327 KIT-REPLACEMENT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0031-0721

USE 753-06327 KIT-REPLACEMENT - SEARS RED (0721)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 684-0042A

Friction Wheel Assembly
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

15

Cub Cadet 710-0118

Screw, Hex Cap, 5/16-18 x .75
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0602

Screw, Hex Wash Hd Tapp 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0604

Screw, Hex Wash Hd Tapp 5/16-16 x .62
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0654A

Screw, Hex Wash Hd Tapp 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

23

Cub Cadet 710-0788

Screw, Hex Wash Hd Tapp 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

24

Cub Cadet 710-0896

Screw, Hex Wash Hd Tapp 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-1233

Screw, Oval Hd Cntrsnk

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet 711-0911

Actuator Shaft

$

$

Not available

29

Cub Cadet 711-1042

Shaft, Hex Drive

$139.99

$

In Stock, only 2 left!

0

30

Cub Cadet 712-0127

Nut, Flat Weld, #10-24

$3.49

$

In Stock, Qty 13

0

35

Cub Cadet 712-0711

Nut. Hex Jam

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 713-0233

Chain, #41 x 30 Lnks

$38.99

$

In Stock, only 1 left!

0

37

Cub Cadet 713-0413

Sprocket, 10T

$11.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 713-0437

Chain, #420 x 32 Links Endless

$34.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 714-0474

Pin, Cotter, .125 x 1.25

$4.49

$

In Stock, Qty 16

0

40

Cub Cadet 719-0295A

Housing, Track

$

$

Not available

42

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

45

Cub Cadet 732-0209

Spring, Extension
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 12

0

46

Cub Cadet 732-0264

Spring, Extension
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0105

Washer, Bell, .401 x .87 x .063

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0160

Washer, Flat, .563 x .93 x .05

$3.99

$

In Stock, only 2 left!

0

50

Cub Cadet 736-0176

Washer, Flat, 1/4 x .93 x .12

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .06

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

54

Cub Cadet 736-0287

Washer, Flat, .793 x 1.24 x .06

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 738-0924

Shoulder Screw
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

59

Cub Cadet 741-0339

Bearing, Flange, .75 ID x 1.0 OD
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

60

Cub Cadet 741-0563

Bearing, Ball
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

61

Cub Cadet 741-0597

Bearing, Hex Flange
(Superseded to 941-0597)

$11.99

$

In Stock, Qty 14

0

62

Cub Cadet 746-0897A

Cable, Auger Clutch
(Superseded to 946-0897)

$23.99

$

In Stock, Qty 20+

0

63

Cub Cadet 746-0898A

Cable, Drive Clutch
(Superseded to 946-0898)

$25.99

$

In Stock, Qty 20+

0

64

Cub Cadet 746-0900

Cable, Track Steering w/Trigger
(Superseded to 753-0707)

$69.99

$

In Stock, Qty 6

0

65

Cub Cadet 748-0190

Spacer, .508 x .75 x .68

$5.99

$

In Stock, only 1 left!

0

66

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

69

Cub Cadet 750-0903

Spacer, Split .514 x .63 x 2.44
(Superseded to 750-0903B)

$9.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 750-0904

Spacer, Split .514 x .63 x 1.59

$

$

Not available

73

Cub Cadet 750-0997

Spacer, .675 x 1.0 x .23
(Superseded to 950-0997)

$6.49

$

In Stock, only 4 left!

0

74

Cub Cadet 756-0625

Cable Roller

$8.99

$

In Stock, Qty 20+

0

75

Cub Cadet 784-5590

Bracket, Shift Frame

Note: Code 0498

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 784-5609

Bracket, Steering Cable

Note: Code 0498

Variations

Cub Cadet 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5609-0691

USE 784-5609-0637 BRACKET-STE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5609-0692

STEERING BRACKET - AGWAY BLUE (0692)

$

$

Not available

Cub Cadet 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5609-0721

USE 784-5609-4044 BRACKET-STE - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

79

Cub Cadet 784-5648

Cover, Frame
(Superseded to 784-5648A-0637)

Note: Code 0498

Variations

Cub Cadet 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5648-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5648-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5648-0687

USE 784-5648A-0687 COVER-FRAM - PINE GREEN (0687)

$

$

Not available

Cub Cadet 784-5648-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5648-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5648-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5648-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5648-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5648-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5648-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

$

$

80

Cub Cadet 784-5687

Bracket, Auger Cltch Cable Guide
(Superseded to 784-5687A-0637)

Note: Code 0498

Variations

Cub Cadet 784-5687-0637

USE 784-5687A-0637 BRACKET-GU - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5687-0662

USE 784-5687A-0637 BRACKET-GU - OYSTER GRAY (0662)

$

$

Not available

$

$

81

Cub Cadet 784-5688

Bracket, Drive Cable Guide
(Superseded to 784-5688-0637)

Note: Code 0498

Variations

Cub Cadet 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5688-0662

USE 784-5688-0637 BRACKET-GUI - OYSTER GRAY (0662)

$

$

Not available

$

$

82

Cub Cadet 784-5689

Bracket, Front Drive Cable Guide
(Superseded to 784-5689A-0637)

Note: Code 0498

Variations

Cub Cadet 784-5689-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5689-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

96

Cub Cadet 618-0063

Bearing Ass'y, Friction Wheel

$85.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 784-5617

Friction Plate

$

$

Currently unavailable

98

Cub Cadet 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

99

Cub Cadet 735-0243

Friction Wheel Rubber
(Superseded to 935-0243B)

$17.99

$

In Stock, Qty 20+

0
