724 TE (317E733E100) - Cub Cadet 24" Snow Thrower (1997) Drive 2 Parts Diagram

24" Snow Thrower

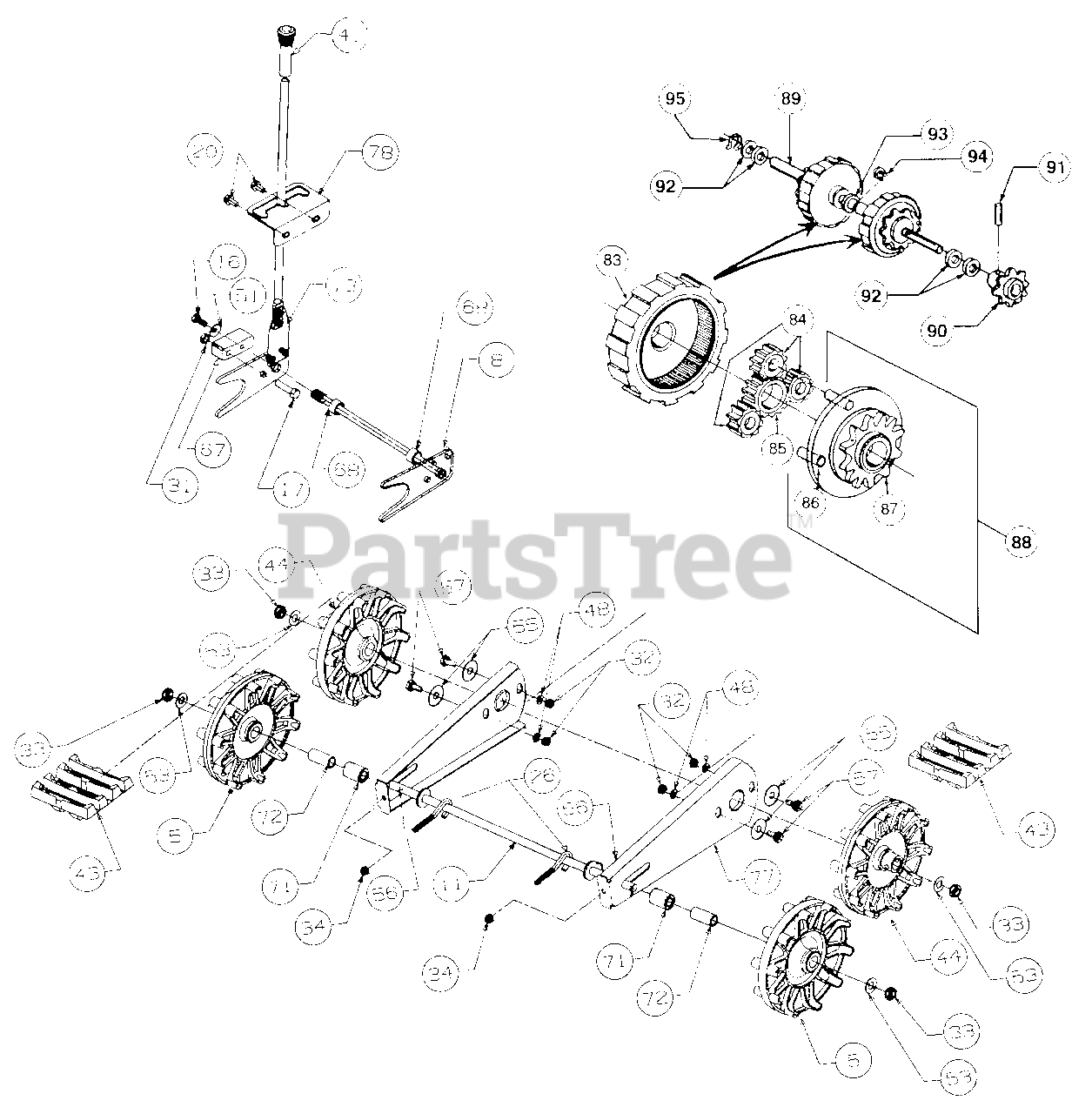

Drive 2 Parts Diagram

  • Title

5

Cub Cadet 631-0032

Wheel Ass'y, Idler Track
(Superseded to 631-0032A)

$42.99

$

In Stock, only 2 left!

0

8

Cub Cadet 684-0009

Track Pivot Rod Assembly
(Superseded to 684-0009A)

Variations

Cub Cadet 684-0009-0721

USE 684-0009A-4044 ROD ASSY P - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0009-4033

USE 684-0009A-4033 ROD ASSY P - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 684-0024

Axle Assembly, Idler
(Superseded to 753-05977)

Variations

Cub Cadet 684-0024-0637

Replacement Kit, 6 - POWDER BLACK (0637)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 684-0038

Handle Assembly, Track Lock

Variations

Cub Cadet 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-0665

Handle Assembly, Trackloc - YARDMAN GREEN (0665)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-4021

Handle Assembly, Trackloc - CUB YELLOW 2 (4021)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0157

Screw, Hex Cap 5/16-24 x .75 GR5

$3.99

$

In Stock, Qty 16

0

17

Cub Cadet 710-0459

Screw, Hex Cap 3/8-24 x 1.5 GR5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

20

Cub Cadet 710-0604

Screw, Hex Wash Hd Tapp 5/16-16 x .62
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-1231

Eye Bolt, 5/16-18 x 3.0

$9.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0214

Nut, Hex Lock, 3/8-24

$5.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0346

Nut, Hex Insert Lock 1/2-20

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 712-0429

Nut, Hex Insert Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

43

Cub Cadet 731-1292

Snow Track

$291.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 731-1538A

Wheel, Track Drive

$33.99

$

In Stock, Qty 7

0

48

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .06

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0406

Washer, Flat, .442 x 1.38 x .06
(Superseded to 936-0406)

$6.49

$

In Stock, Qty 11

0

56

Lubricant

$

$

Not available

57

Cub Cadet 738-0140

Shoulder Screw

$5.49

$

In Stock, Qty 17

0

67

Cub Cadet 748-0353A

Lift, Drive Shaft

$21.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 750-0547

Spacer, .632 x .875 x .5

$5.49

$

In Stock, only 3 left!

0

71

Cub Cadet 750-0909

Spacer, .510 x 1.0 x 1.34

$9.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 750-0995

Spacer, .51 x .75 x 1.67

$14.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 784-5639

Track Side Plate

Note: Code 0498

Variations

Cub Cadet 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 784-5642

Track Lockout Plate

Note: Code 0498

Variations

Cub Cadet 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5642-0721

USE 784-5642-4044 PLATE-TRACK - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 717-1211

Ring Gear
(Superseded to 717-1211B)

$

$

Not available

84

Cub Cadet 717-1209

Gear, 12T
(Superseded to 717-1209A)

$4.49

$

Usually ships in 3-6 days

0

85

Cub Cadet 717-1210

Gear, 18T
(Superseded to 717-1210A)

$7.99

$

In Stock, only 3 left!

0

86

Cub Cadet 741-0542

Dowel Pin

$10.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 718-0188

Carrier
(Superseded to 918-0576A)

$208.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 618-0046

Carrier Assembly
(Superseded to 918-0576A)

$208.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 711-0912

Drive Shaft

$122.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 713-0414

Sprocket, 13T

$35.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 715-0120

Pin, Spiral, 3/16 x 1.0

$9.99

$

In Stock, Qty 5

0

92

Cub Cadet 736-0502

Washer, Flat, .58 x 1.12 x .02 Hdn
(Superseded to 936-0502)

$6.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 736-0336

Washer, Flat, 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

94

Cub Cadet 716-0115

Snap Ring, .625 Shaft
(Superseded to 916-0115)

$

$

Not available

95

Cub Cadet 716-0114

Snap Ring, .56 Dia. Shaft
(Superseded to 916-0114)

$6.49

$

In Stock, Qty 11

0
