724010 - Ariens Headlight Kit Alternate Headlight Assembly Parts Diagram

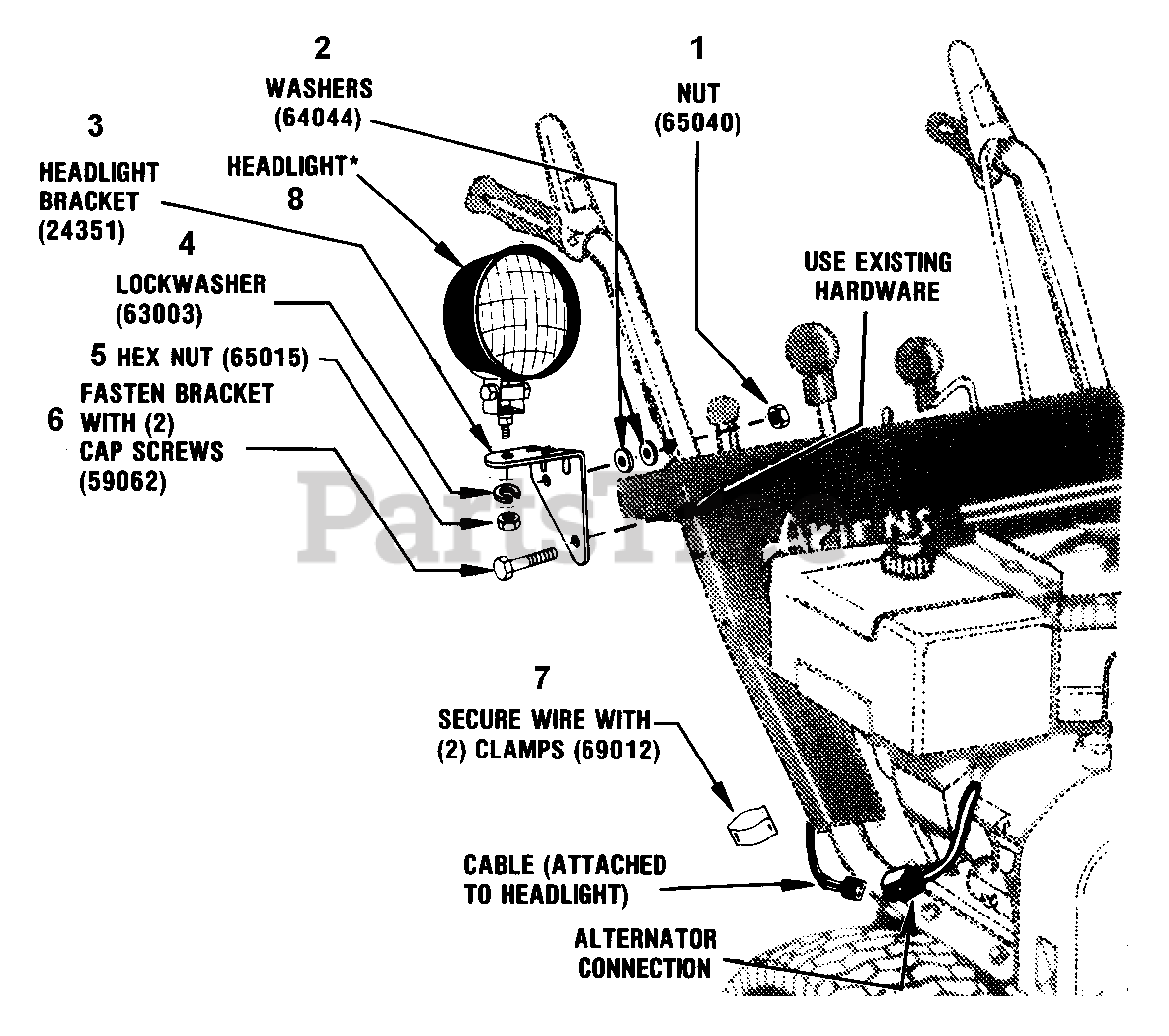

Headlight Kit Alternate

Headlight Assembly Parts Diagram

  • Title

1

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 1 left!

0

3

Ariens 02435100

HEADLAMP BRACKET

$

$

Not available

4

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 3 left!

0

5

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 14

0

6

Ariens 05906200

BLT-HEX .25-20X1.75 PL GR2
(Superseded to 05964700)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

8

HEADLIGHT

Note: SERVICE PART

$

$

Not available

8

Ariens 02435800

HEAD LIGHT

Note: SERVICE PART

$62.99

$

Usually ships in 4-12 days

0

8

Ariens 62414300

HEAD LAMP ASSEM. ALTERNATE 62

Note: SERVICE PART

$

$

Not available

8

Ariens 62414200

LAMP ASSY

Note: SERVICE PART

$

$

Not available

8

Ariens 02454200

TERMINAL

Note: SERVICE PART

$

$

Not available

8

Ariens 02454300

TERMINAL

Note: SERVICE PART

$

$

Not available

8

Ariens 02454400

CONNECTOR

Note: SERVICE PART

$

$

Not available

8

Ariens 02454000

SWITCH - HEADLIGHT

Note: SERVICE PART

$

$

Not available

8

Ariens 02454100

BOOT - HEADLIGHT SWITCH

Note: SERVICE PART

$

$

Not available

8

Ariens 01345300

U BRACKET

Note: SERVICE PART

$

$

Not available

8

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

Note: SERVICE PART

$1.49

$

In Stock, Qty 12

0

8

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

Note: SERVICE PART

$1.49

$

In Stock, Qty 13

0

8

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: SERVICE PART(MOUNTING TO HEADLIGHT BRACKET AND U-BRACKET)

$0.99

$

In Stock, only 3 left!

0
