724015 - Ariens Differential Kit DIFFERENTIAL KIT Parts Diagram

Differential Kit

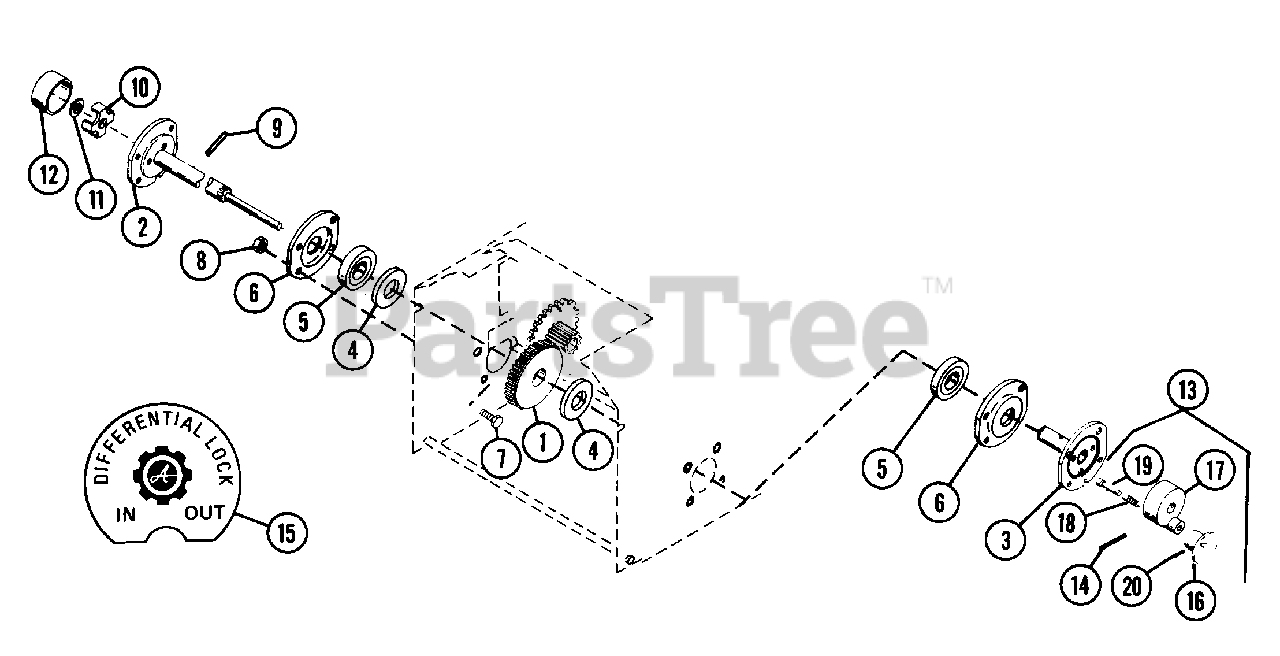

DIFFERENTIAL KIT Parts Diagram

  • Title

1

Ariens 62407300

DIFFERENTIAL ASSEMBLY
(Superseded to 52405300)

$610.99

$

Usually ships in 4-12 days

0

2

Ariens 02440900

R H AXLE
(Superseded to 02475800)

$345.99

$

In Stock, only 1 left!

0

3

Ariens 62408300

L H AXLE ASSEMBLY
(Superseded to 52405500)

$202.99

$

In Stock, only 1 left!

0

4

Ariens 06417000

WSHR-FL-STL 1.140X1.718X.134
(Superseded to 06437400)

$

$

Not available

5

Ariens 05413600

BRG-BALL 1.13X2.18X.63
(Superseded to 05417700)

$30.99

$

In Stock, only 2 left!

0

6

Ariens 02436300

BEARING RETAINER

$

$

Not available

7

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 6

0

8

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

10

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$15.99

$

Usually ships in 4-12 days

0

11

Ariens 01036600

PUSHNUT

$6.49

$

Usually ships in 4-12 days

0

12

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

13

Ariens 62405400

HUB, LOCKOUT
(Superseded to 52405900)

$135.99

$

Usually ships in 4-12 days

0

14

Ariens 05804200

PIN-GRV .250X1.75 TP C

$15.99

$

In Stock, only 1 left!

0

15

Ariens 07803800

DIFFERENTIAL LOCK LABEL
(Superseded to 07864400)

$29.99

$

Usually ships in 4-12 days

0

16

Ariens 01037500

KNOB

$54.99

$

Usually ships in 4-12 days

0

17

Ariens 01037200

LOCKOUT HUB

$87.99

$

Usually ships in 4-12 days

0

18

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

$6.49

$

Usually ships in 4-12 days

0

19

Ariens 01037400

PIN

$17.99

$

Usually ships in 4-12 days

0

20

Ariens 05803200

PIN-ROLL .093X1.00

$0.99

$

Usually ships in 4-12 days

0
