724021 - Ariens Remote Deflector Control Kit Remote Deflector Control Kit Parts Diagram

Remote Deflector Control Kit

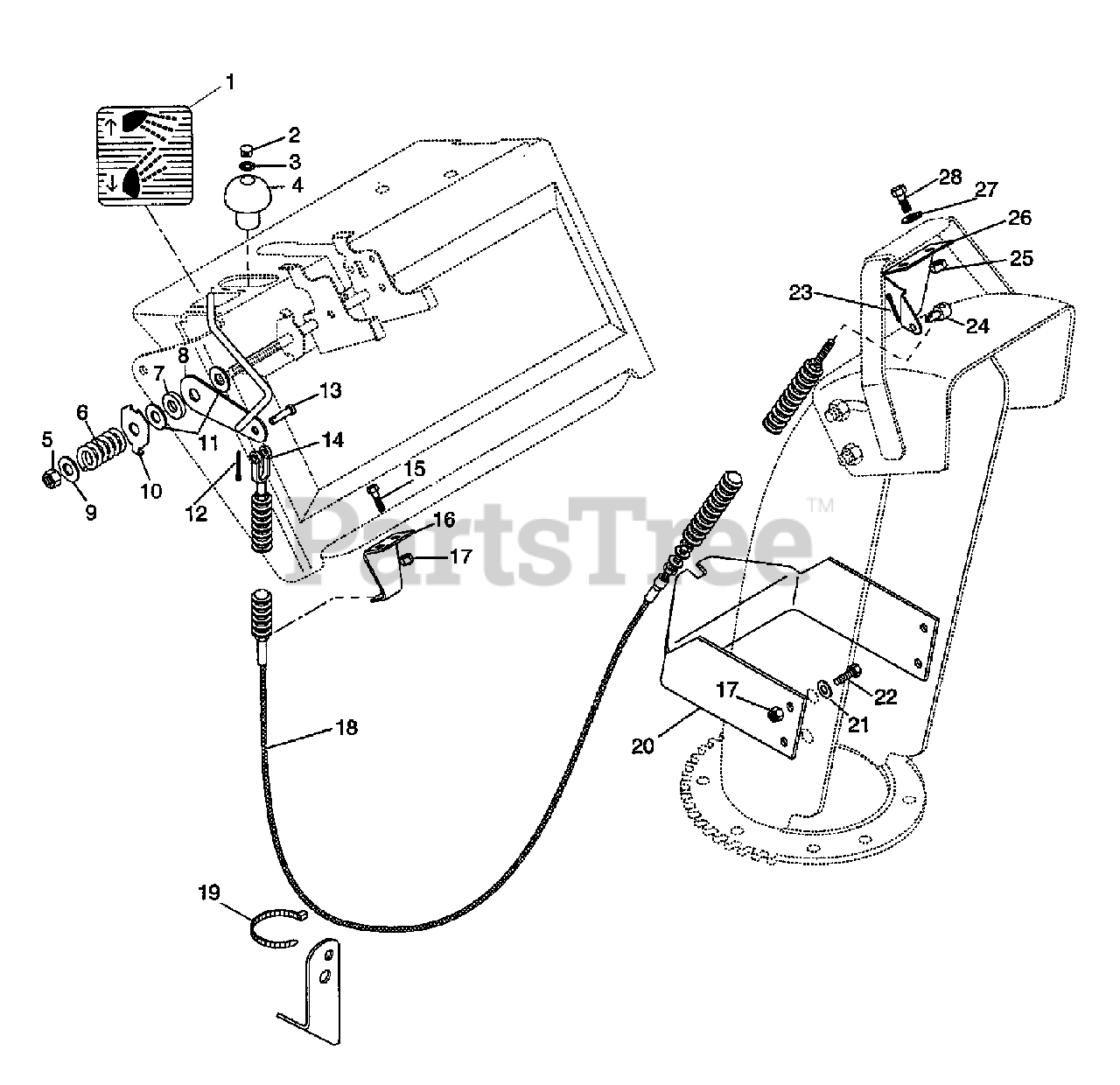

Remote Deflector Control Kit Parts Diagram

  • Title

1

Ariens 07707900

DECAL - DEFLECTOR CONTROL

$

$

Not available

2

Ariens 07516700

HOLE PLUG

$1.49

$

In Stock, Qty 17

0

3

Ariens 05711300

RG-RTNG-EXT .375X.010

$0.99

$

In Stock, Qty 5

0

4

Ariens 07508300

KNOB

$13.99

$

In Stock, only 2 left!

0

5

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 02463100

SPACER .406X.620X.125

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 02463800

LEVER-DEFLECTOR

$30.99

$

Usually ships in 4-12 days

0

9

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 02463900

PRESSURE FLANGE

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 5

0

12

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 02401400

CLEVIS PIN

$

$

Not available

14

Ariens 02401200

CLEVIS

$

$

Not available

15

Ariens 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

16

Ariens 02463200

BRACKET, ROD
(Superseded to 02463251)

$23.99

$

Usually ships in 4-12 days

0

17

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06919700

CONTROL CABLE
(Superseded to 06937700)

$117.99

$

In Stock, only 2 left!

0

19

Ariens 06917100

KNOB & LEVER ASS'Y

$

$

Not available

20

Ariens 02405400

BRKT-CHUTE CABLE
(Superseded to 02405459)

$

$

Not available

21

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 14

0

22

Ariens 05915500

BLT-HEX .25-20X.50 PL GR5
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

23

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

24

Ariens 06917500

PIVOT

$37.99

$

Usually ships in 4-12 days

0

25

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

26

Ariens 02406300

BRKT-CHUTE DEFLECTOR
(Superseded to 02406359)

$

$

Not available

27

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 8

0

28

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0
