724053 - Ariens Remote Deflector Control Kit Remote Deflector Control Kit 72405300 Parts Diagram

Remote Deflector Control Kit

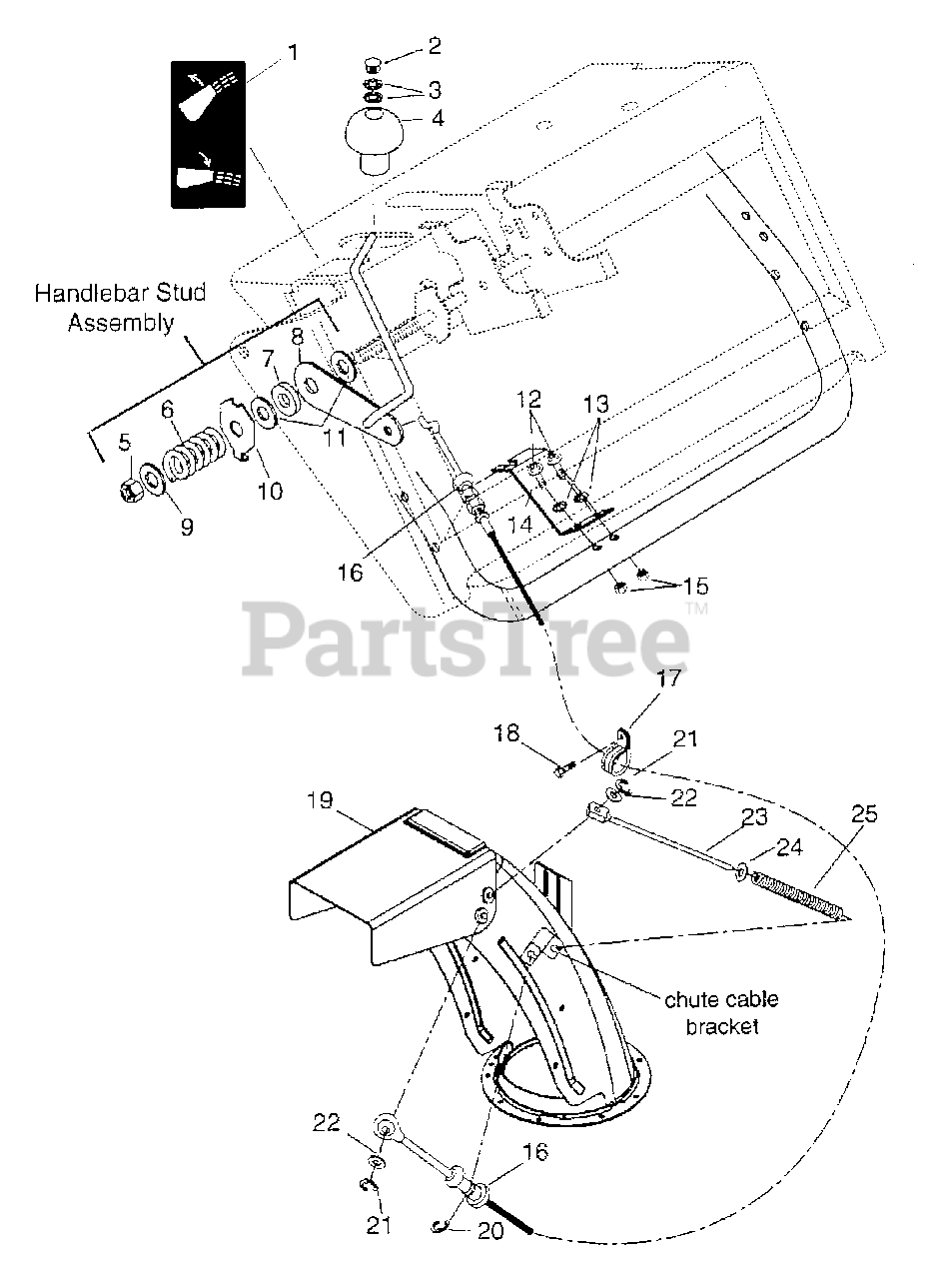

Remote Deflector Control Kit 72405300 Parts Diagram

  • Title
1

Ariens 08095200

DECAL, DEFLECTOR CONTROL

$

$

Not available

2

Ariens 07516700

HOLE PLUG

$2.52

$

In Stock, Qty 12

0

3

Ariens 05711300

RG-RTNG-EXT .375X.010

$1.96

$

In Stock, only 2 left!

0

$15.37

$

Usually ships in 4-12 days

0

5

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC

$2.24

$

In Stock, Qty 20+

0

6

Ariens 08320900

SG-COMP .187X.56X1.62

$8.89

$

In Stock, only 3 left!

0

7

Ariens 02463100

SPACER .406X.620X.125

$3.47

$

Usually ships in 5-11 days

0

8

Ariens 02463800

LEVER-DEFLECTOR

$29.68

$

Usually ships in 5-11 days

0

9

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.52

$

In Stock, Qty 20+

0

10

Ariens 02463900

PRESSURE FLANGE

$11.40

$

Usually ships in 4-12 days

0

11

Ariens 01123800

FRICTION WASHER

$3.63

$

In Stock, Qty 20+

0

12

Ariens 06116200

SCR-MCH .25-20X1.5 PH OVL HD Y

$

$

Not available

13

Ariens 06307600

WSHR-LK-EXT .250 TTH CNTRSNK

$

$

Not available

14

Ariens 00646300

BRACKET, DEFLECTOR CABLE

$

$

Not available

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC

$

$

Not available

16

Ariens 06943200

CABLE-DEFLECTOR CONTROL
(Superseded to 06945700)

$74.85

$

In Stock, only 1 left!

0

17

Ariens 06908200

CLAMP, CUSHIONED STEEL

$5.53

$

Usually ships in 4-12 days

0

18

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC

$2.18

$

In Stock, Qty 5

0

19

Ariens 02479459

CHUTE, DISCHARGE

$

$

Not available

20

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.96

$

In Stock, Qty 20+

0

21

Ariens 05718500

RG-RTNG-EXT .218X.035 TYPE E

$3.63

$

In Stock, Qty 12

0

22

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC

$1.96

$

In Stock, Qty 20+

0

23

Ariens 02478900

HOUSING, BLOWER - 28"

$

$

Not available

24

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC

$2.52

$

In Stock, Qty 20+

0

25

Ariens 08335200

SPRING, COMP. .08 X .40 X 7.15

$20.07

$

In Stock, only 1 left!

0

Ariens 72405300

REMOTE DEFLECTOR CONTROL KIT

$

$

Not available
