724074 - Ariens Headlight Kit with Alternator

Headlight Kit with Alternator

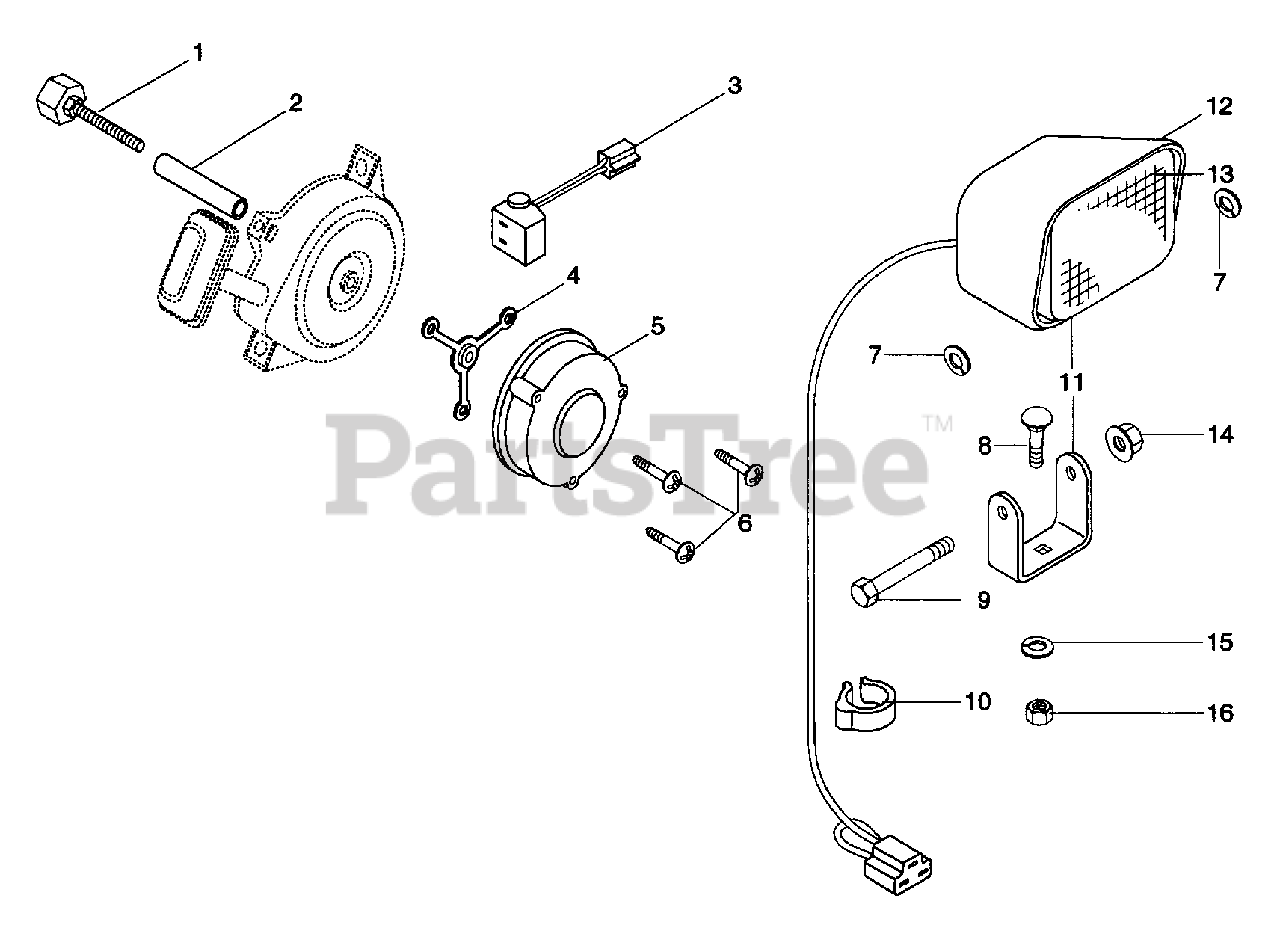

724074 - Ariens Headlight Kit with Alternator > Parts Diagrams (1) > Alternator / Headlight

  • Title
02455400

1

ALTERNATOR SHAFT 3.00

Part# 02455400

Note: (Tec. 590613)

OEM Warranty Repair Part for Ariens

Not available

02455500

2

CENTERING TUBE

Part# 02455500

Note: (Tec. 590610)

OEM Warranty Repair Part for Ariens

Not available

02455700

3

LIGHTING CONNECTOR

Part# 02455700

Note: (Tec. 61178)

OEM Warranty Repair Part for Ariens

Not available

02459800

4

SPACER-ALTERNATOR

Part# 02459800

OEM Warranty Repair Part for Ariens

Not available

02455800

5

ALTERNATOR

Part# 02455800

Note: (Tec. 611077)

OEM Warranty Repair Part for Ariens

Not available

07408400

6

SCR-TAP 8-18X1.25 CRFH PL B

Part# 07408400

OEM Warranty Repair Part for Ariens

Not available

06303200

7

WSHR-LK-EXT .313X.030 PL

Part# 06303200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06201500

8

BLT-RDHDSQNK .31-18X1.00 PL

Part# 06201500 (Superseded to 06216100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05913100

9

BLT-HEX .31-18X2.50 PL GR2

Part# 05913100 (Superseded to 05952600)

OEM Warranty Repair Part for Ariens

Not available

06901200

10

CLAMP

Part# 06901200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02463600

11

HEADLIGHT

Part# 02463600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $94.02

02464900

12

LENSE-FLOOD

Part# 02464900

OEM Warranty Repair Part for Ariens

Not available

02465000

13

BULB

Part# 02465000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

06507800

14

NUT-FLG. .312-18 PL

Part# 06507800 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

06300300

15

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06501500

16

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available
