725 (990270) - Simplicity Landlord Garden Tractor REAR WHEELS AND AXLE Parts Diagram

Landlord Garden Tractor

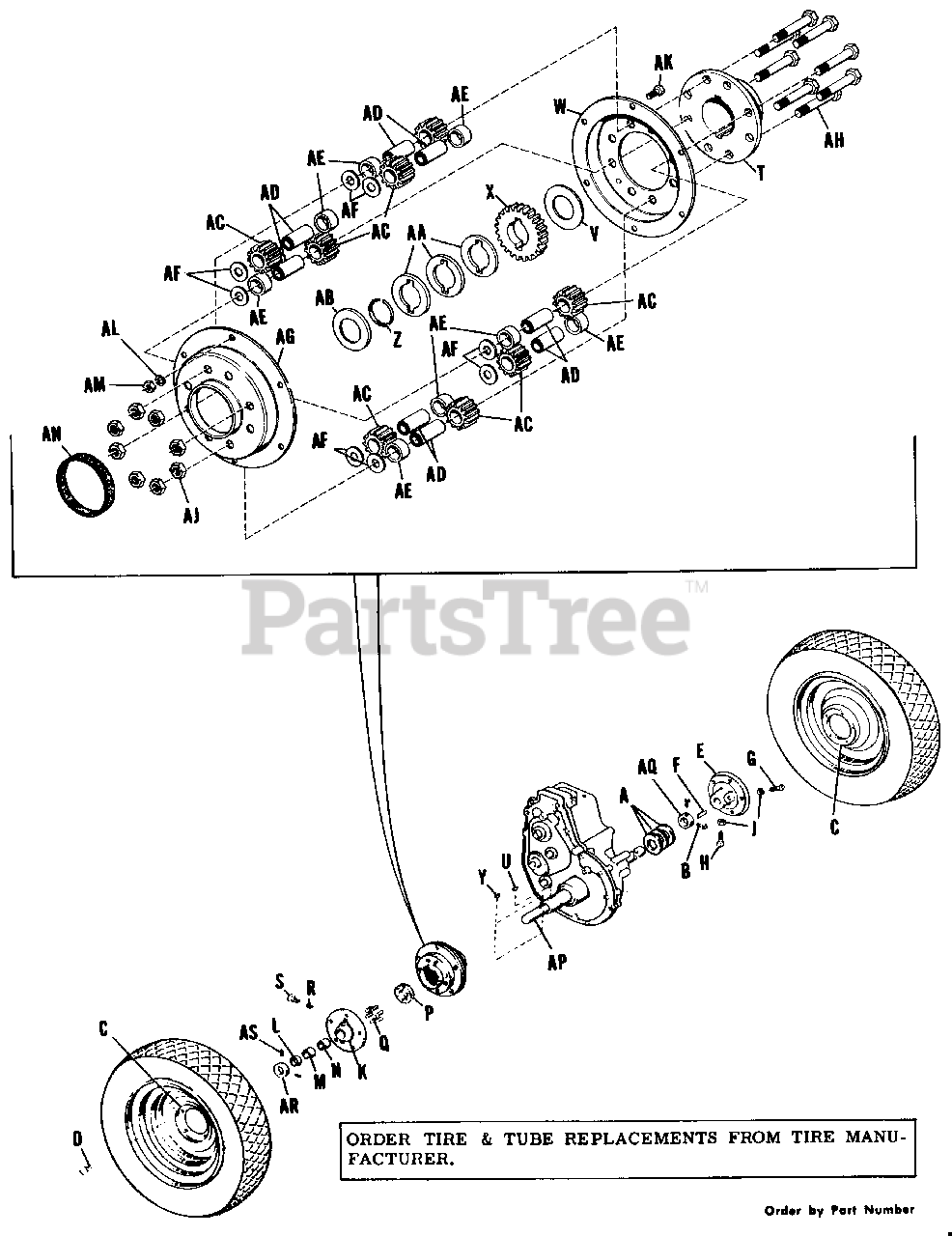

REAR WHEELS AND AXLE Parts Diagram

  • Title

A

Simplicity 2105050

Washer

$

$

Not available

B

Simplicity 2713006

Screw, Set, Cup Pt. Sq. Hd., 5/16"-18 NC x 1/2" lg.

$

$

Not available

C

Simplicity 8262023

Wheel

$

$

Not available

D

Simplicity 1729280SM

Bolt, Hub

$6.99

$

In Stock, Qty 16

0

E

Simplicity 2154208SM

Hub, Wheel, L.H.

$237.99

$

In Stock, only 1 left!

0

F

Simplicity 2805100SM

Key

$5.49

$

In Stock, only 1 left!

0

G

Simplicity 2715022

Screw, Set Sq. Hd., Cone, 3/8"-16 N.C. x 1-1/2" lg.

$

$

Not available

H

Simplicity 2713004

Screw, Set, Sq. Hd., Cup, 3/8"-16 N.C. x 1" lg.

$

$

Not available

J

Simplicity 2717021

Nut, Hex., Jam, 3/8"-16 N.C.

$

$

Not available

K

Simplicity 2152040

Hub, Wheel, R.H.

$

$

Not available

L

Simplicity 2105058SM

Bearing

$

$

Not available

M

Simplicity 152041

Bearing, Nylon

$

$

Not available

N

Simplicity 2153068SM

Bearing

$43.99

$

Usually ships in 2-12 days

0

P

Simplicity 2154400SM

Gear, Differential

$321.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2723003

Pin, Roll

$

$

Not available

R

Simplicity 152042

Plug

$

$

Not available

S

Simplicity 1729280SM

Bolt, Hub

$6.99

$

In Stock, Qty 16

0

T

Simplicity 154063

Carrier, Differential

$

$

Not available

U

Simplicity 2151040SM

Key, Drive

$9.99

$

In Stock, only 2 left!

0

V

Simplicity 2154035

Washer, Axle

$

$

Not available

W

Simplicity 121149

Cover, Differential

$

$

Not available

X

Simplicity 2121312

Gear, Differential

$

$

Not available

Y

Simplicity 2725501

Key, Hi-Pro

$

$

Not available

Z

Simplicity 2154291SM

Ring, Retaining

$

$

Not available

AA

Simplicity 153077

Washer, Axle

$

$

Not available

AB

Simplicity 2154277

Washer, Axle

$

$

Not available

AC

Simplicity 2121311

Pinion, Differential

$

$

Not available

AD

Simplicity 2121083SM

Spindle, Pinion Differential

$13.99

$

In Stock, only 1 left!

0

AE

Simplicity 2121084SM

Spacer, Differential

$13.99

$

Usually ships in 2-12 days

0

AF

Simplicity 2719002

Washer, Plain

$

$

Not available

AG

Simplicity 2151022

Cover, Differential

$

$

Not available

AH

Simplicity 2705003

Screw, Cap, Hex., 3/8"-16 N.C. x 2-1/4" lg.

$

$

Not available

AJ

Simplicity 2717510

Nut, Lock, Full Hex., 3/8"-16 N.C.

$

$

Not available

AK

Simplicity 2705002

Screw, Cap, Hex., 1/4"-20 N.C. x 1/2" lg.

$

$

Not available

AL

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

AM

Simplicity 2717005

Nut, Full, Hex., 1/4"-20 N.C.

$

$

Not available

AN

Simplicity 2121190SM

Seal, Differential Cover

$

$

Not available

AP

Simplicity 2154064

Axle, Rear

$

$

Not available

AQ

Simplicity 2154065SM

Collar, Axle

$113.99

$

Usually ships in 2-12 days

0

AR

Simplicity 2154065SM

Collar, Axle

$113.99

$

Usually ships in 2-12 days

0

AS

Simplicity 2713503

Screw, Set, Cup Point, Hollow Head, 5/16"-18 N.C. x 5/16" lg

$

$

Not available
