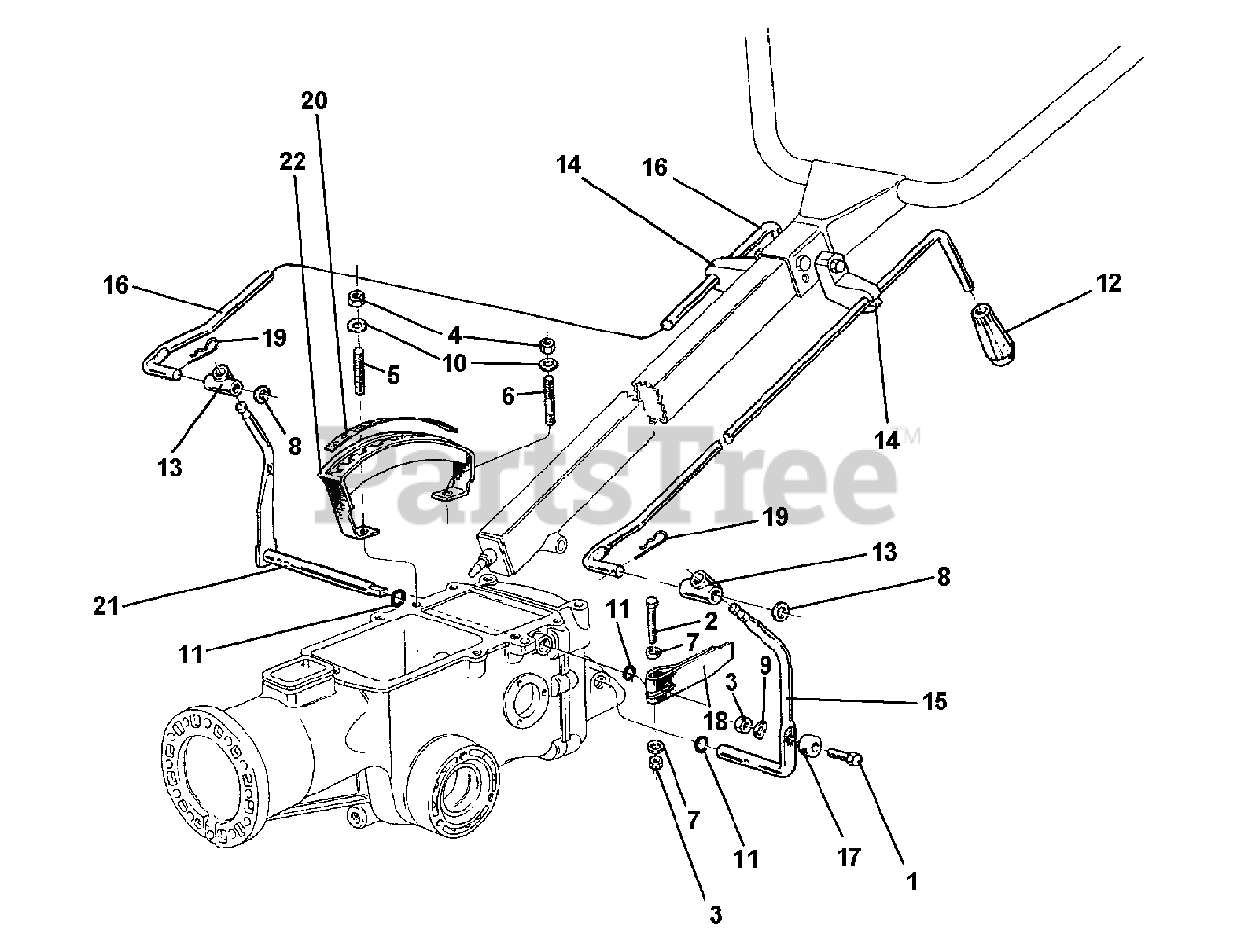

725 - BCS America Two-Wheeled Tractor Controls (SN: 40000 - 64756) Parts Diagram

Two-Wheeled Tractor

Controls (SN: 40000 - 64756) Parts Diagram

  • Title

1

BCS America 311.12089

SCREW M6 X 25

$1.49

$

In Stock, only 2 left!

0

2

BCS America 311.12091

SCREW M6 X 40

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 31211060

NUT M6

$0.99

$

In Stock, Qty 8

0

4

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

5

BCS America 313.12082

STUD M8 X 38 X 14 X 20

$1.99

$

In Stock, only 3 left!

0

6

BCS America 313.12083

STUD M8 X 46 X 16 X 16

$2.99

$

In Stock, Qty 6

0

7

BCS America 314.11064

WASHER, FLAT 6.4

$0.99

$

In Stock, only 2 left!

0

8

BCS America 314.11104

WASHER P10.5 X 18

$0.99

$

In Stock, Qty 9

0

9

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

11

BCS America 381.11191

O-RING 115 11.91 X 2.62

$0.99

$

In Stock, only 3 left!

0

12

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

13

BCS America 552.42528

JOINT, D 10

$11.99

$

In Stock, only 2 left!

0

14

BCS America 55243340

SUPPORT CONTROL ROD CUT

$

$

Not available

15

BCS America 561.43167

P.T.O. LEVER

$

$

Currently unavailable

16

BCS America 56143360

ROD, CONTROL POWER TILLER

$41.99

$

In Stock, only 1 left!

0

17

BCS America 561.48076

CONTRAST

$3.99

$

Usually ships in 5-8 days

0

18

BCS America 561.48082

PTO LOCKOUT

$

$

Currently unavailable

19

BCS America 580.43772

PIN, D2

$1.99

$

Usually ships in 5-8 days

0

20

BCS America 580.47955

PLATE, 5 SPEEDS WALKING TRAC

$2.99

$

In Stock, only 1 left!

0

21

BCS America 590.43188

GEARBOX LEVER

$

$

Currently unavailable

22

BCS America 590.48084

SELECTOR

$53.99

$

Usually ships in 5-8 days

0
