725 - BCS America Two-Wheeled Tractor Gears (SN: 40000 - 55469) Parts Diagram

Two-Wheeled Tractor

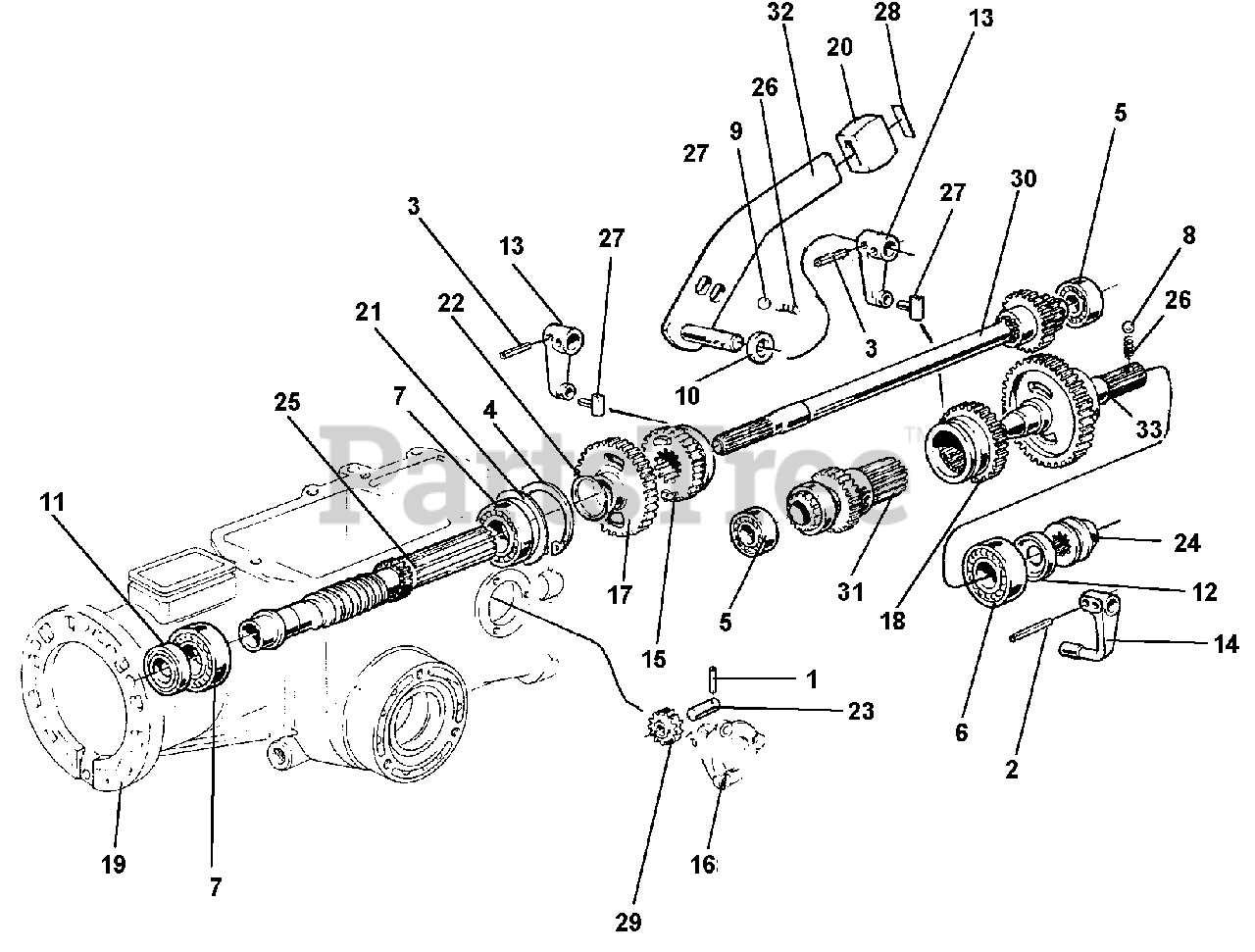

Gears (SN: 40000 - 55469) Parts Diagram

  • Title

1

BCS America 342.11025

PIN, LOCKING 2.5 X 22 DIN 1481

$3.49

$

Usually ships in 5-8 days

0

2

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

In Stock, only 4 left!

0

3

BCS America 342.13024

LOCKING PIN 4 X 24 SPIRAL

$1.49

$

In Stock, Qty 5

0

4

BCS America 351.11052

CIRCLIP, INTERN D 52

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 371.11151

BEARING 15 X 35 X 11 6202

$10.99

$

Usually ships in 5-8 days

0

6

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 2 left!

0

7

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

8

BCS America 379.10832

BALL 1/4 RIV RB-6.35

$0.99

$

In Stock, Qty 9

0

9

BCS America 379.11532

BALL 15/32 RIV RB-11.906

$1.49

$

In Stock, only 3 left!

0

10

BCS America 382.11201

SEAL, OIL 12 X 19 X 5 STANDARD

$6.49

$

Usually ships in 5-8 days

0

11

BCS America 382.11501

SEAL, OIL 15 X 40 X 10 STANDARD

$10.99

$

Usually ships in 5-8 days

0

12

BCS America 382.12001

SEAL, OIL 20 X 35 X 7 STANDARD

$9.99

$

Usually ships in 5-8 days

0

13

BCS America 521.43171

LEVER, SPEED CHG SLDG GR

$49.99

$

Usually ships in 5-8 days

0

14

BCS America 523.43168

SLIDE LEVER

$86.99

$

Usually ships in 5-8 days

0

15

BCS America 524.4806

SLIDER SPEEDS

$

$

Currently unavailable

16

BCS America 524.48068

SLIDER REDUCTION UNIT

$

$

Currently unavailable

17

BCS America 524.48078

WHEELS FIRST SPEED

$117.32

$

Usually ships in 5-8 days

0

18

BCS America 531.43068

FLANGE, REVERSE SPEED

$156.99

$

Usually ships in 5-8 days

0

19

BCS America 531.48055

CASING 5 SPEEDS GEARBOX

$

$

Currently unavailable

20

BCS America 552.48072

KNOB REDUCTION UNIT LEVER

$5.49

$

Usually ships in 5-8 days

0

21

BCS America 563.48056

RING C - 72

$2.99

$

Usually ships in 5-8 days

0

22

BCS America 563.48077

WASHER 25 X 32 X 2 C - 72

$2.99

$

Usually ships in 5-8 days

0

23

BCS America 564.43074

PIN

$45.99

$

Usually ships in 5-8 days

0

24

BCS America 564.43164

SLIDER

$94.99

$

In Stock, only 1 left!

0

25

BCS America 564.48057

WORM GEAR

$270.99

$

Usually ships in 5-8 days

0

26

BCS America 580.42059

SPRING

$12.99

$

Usually ships in 5-8 days

0

27

BCS America 580.43086

SHOE

$10.99

$

In Stock, only 1 left!

0

28

BCS America 580.43321

DECAL SLOW/FAST SPEEDS

$9.99

$

Usually ships in 5-8 days

0

29

BCS America 590.43071

REVERSE SPEED GEAR

$82.99

$

Usually ships in 5-8 days

0

30

BCS America 590.48061

CLUTCH SHAFT

$

$

Not available

31

BCS America 590.48065

GEAR TRIPLE

$297.99

$

Usually ships in 5-8 days

0

32

BCS America 590.48069

LEVER REDUCTION UNIT

$72.99

$

Usually ships in 5-8 days

0

33

BCS America 590.48073

P.T.O. SHAFT

$310.99

$

Usually ships in 5-8 days

0
