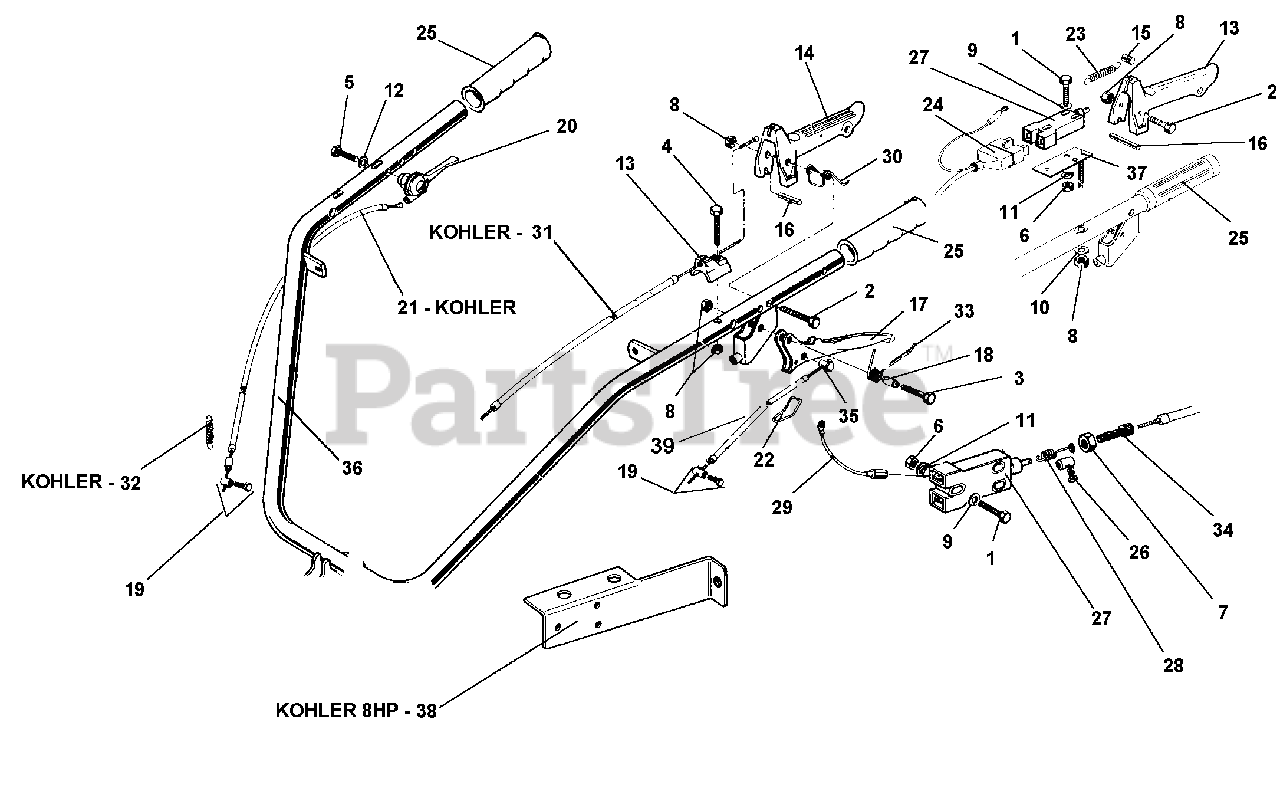

725 - BCS America Two-Wheeled Tractor Handlebar (SN: 180000 & Above) Parts Diagram

Two-Wheeled Tractor

Handlebar (SN: 180000 & Above) Parts Diagram

  • Title

1

BCS America 311.11086

SCREW TE M4 X 25

$1.49

$

In Stock, Qty 8

0

2

BCS America 311.11097

SCREW TE M6 X 45

$1.49

$

In Stock, only 1 left!

0

3

BCS America 311.12089

SCREW M6 X 25

$1.49

$

In Stock, only 2 left!

0

4

BCS America 311.12092

SCREW M6 X 35

$1.49

$

In Stock, only 1 left!

0

5

BCS America 311.12154

SCREW TE M8 X 40

$1.99

$

In Stock, Qty 5

0

6

BCS America 31211040

NUT M4

$0.99

$

In Stock, only 3 left!

0

7

BCS America 31211060

NUT M6

$0.99

$

In Stock, Qty 8

0

8

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, Qty 8

0

9

BCS America 314.11043

FLAT WASHER 4.3

$0.99

$

In Stock, Qty 8

0

10

BCS America 314.11064

FLAT WASHER 6.4 X 12.5

$0.99

$

In Stock, only 2 left!

0

11

BCS America 314.23043

LOCK WASHER 4.3

$0.99

$

In Stock, Qty 6

0

12

BCS America 314.23084

LOCK WASHER 8.4

$0.99

$

In Stock, Qty 10

0

13

BCS America 552.48038

CABLE STOP OF MOTOR STOP

$7.49

$

In Stock, only 2 left!

0

14

BCS America 552.48041

MOTOR STOP LEVER

$24.99

$

In Stock, Qty 17

0

15

BCS America 561.47711

PIN

$3.99

$

In Stock, only 1 left!

0

16

BCS America 561.48037

LEVER STOP FOR MOTOR STOP

$3.49

$

Usually ships in 5-8 days

0

17

BCS America 56148040

CLUTCH LEVER

$32.99

$

Usually ships in 5-8 days

0

18

BCS America 561.50361

LEVER SPACER

$4.99

$

Usually ships in 5-8 days

0

19

BCS America 580.02429

CLAMP, CABLE

$5.99

$

Usually ships in 5-8 days

0

20

BCS America 580.02538

LEVER, ACCELERATOR

$34.99

$

In Stock, Qty 6

0

21

BCS America 580.42486

THROTTLE CABLE, 725

$21.99

$

In Stock, only 1 left!

0

22

BCS America 580.47649

HOOK

$7.99

$

Usually ships in 5-8 days

0

23

BCS America 580.47712

MOTOR STOP SPRING

$14.99

$

In Stock, only 1 left!

0

24

BCS America 580.47718

MOTOR STOP CABLE, B&S

$

$

Currently unavailable

25

BCS America 58048000

KNOB

$7.49

$

In Stock, only 1 left!

0

26

BCS America 580.48002

CABLE CLAMP

$3.99

$

In Stock, only 1 left!

0

27

BCS America 580.48009

STOP SWITCH

$32.99

$

In Stock, only 1 left!

0

28

BCS America 58048010

SWITCH SPRING

$2.99

$

In Stock, only 1 left!

0

29

BCS America 580.48011

SWITCH CABLES

$4.49

$

Usually ships in 5-8 days

0

30

BCS America 580.48039

MOTOR STOP LEVER SPRING

$26.99

$

Usually ships in 5-8 days

0

31

BCS America 580.49505

THROTTLE CABLE, 725 KOHLER

$31.99

$

Usually ships in 5-8 days

0

32

BCS America 580.49786

SPRING, KOHLER THROTTLE

$21.99

$

Usually ships in 5-8 days

0

33

BCS America 580.50345

LEVER SPRING

$3.49

$

In Stock, only 1 left!

0

34

BCS America 581.47704

ADJUSTING SCREW

$9.49

$

In Stock, only 1 left!

0

35

BCS America 581.50313

BARREL

$11.99

$

In Stock, only 1 left!

0

36

BCS America 590.43268

HANDLEBAR

$

$

Currently unavailable

37

BCS America 590.47709

STOP SWITCH SUPPORT

$32.99

$

In Stock, only 1 left!

0

38

BCS America 590.49784

SWITCH SUPPORT, KOHLER

$

$

Currently unavailable

39

BCS America 580.43216

CABLE, CLUTCH

$25.99

$

In Stock, Qty 5

0
