725005 - Ariens Emperor Rear Grass Bagger (SN: 000101 - 005500)

Emperor Rear Grass Bagger

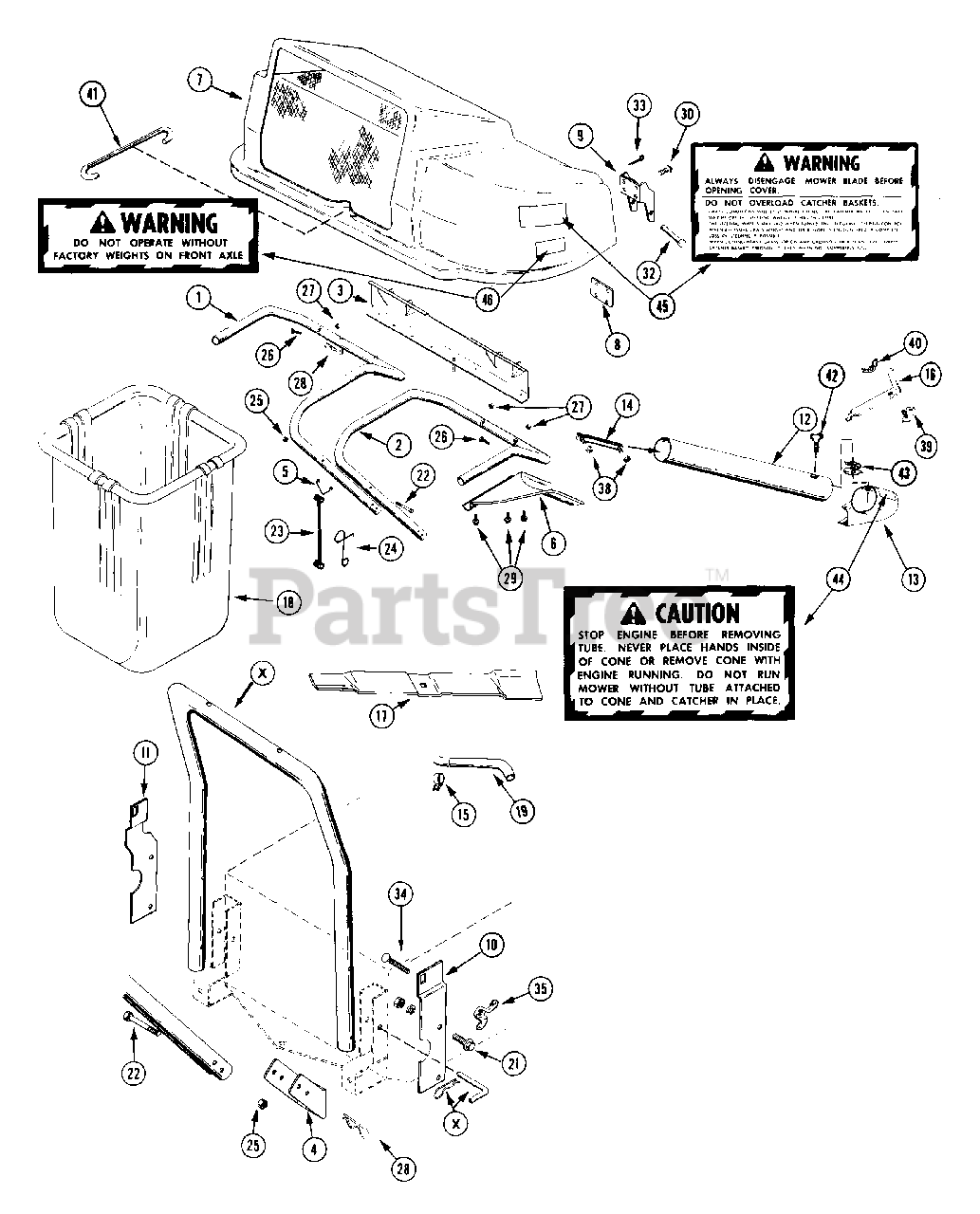

725005 - Ariens Emperor Rear Grass Bagger (SN: 000101 - 005500) > Parts Diagrams (1) > Grass Bagger

  • Title
02530800

1

TUBE L.H. SUPPORT

Part# 02530800

OEM Warranty Repair Part for Ariens

Not available

02530900

2

TUBE R.H. SUPPORT

Part# 02530900

OEM Warranty Repair Part for Ariens

Not available

02531000

3

FRAME-TUBE

Part# 02531000

OEM Warranty Repair Part for Ariens

Not available

02531100

4

BRACKET-MOUNTING

Part# 02531100

OEM Warranty Repair Part for Ariens

Not available

02533000

5

ANCHOR

Part# 02533000

OEM Warranty Repair Part for Ariens

Not available

02531300

6

SUPPORT TUBE

Part# 02531300 (Superseded to 02537100)

OEM Warranty Repair Part for Ariens

Not available

62503100

7

GRASS CATCHER COVER ASSEMBLY

Part# 62503100 (Superseded to 52504000)

OEM Warranty Repair Part for Ariens

Not available

02531500

8

PLATE REINFORCEMENT

Part# 02531500 (Superseded to 02534800)

OEM Warranty Repair Part for Ariens

Not available

02531600

9

HINGE

Part# 02531600

OEM Warranty Repair Part for Ariens

Not available

02531800

10

STABILIZER R.H.

Part# 02531800

OEM Warranty Repair Part for Ariens

Not available

02531900

11

STABILIZER L.H.

Part# 02531900

OEM Warranty Repair Part for Ariens

Not available

02532000

12

TUBE BLANK

Part# 02532000

OEM Warranty Repair Part for Ariens

Not available

62503200

13

GRASS CATCHER CONE ASSEMBLY

Part# 62503200 (Superseded to 52504100)

OEM Warranty Repair Part for Ariens

Not available

02533300

14

CLIP

Part# 02533300

OEM Warranty Repair Part for Ariens

Not available

06910600

15

CLIP

Part# 06910600

OEM Warranty Repair Part for Ariens

Not available

02532400

16

STRAP CONE

Part# 02532400

OEM Warranty Repair Part for Ariens

Not available

02532500

17

MOWER BLADE

Part# 02532500 (Superseded to 02728700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.19

02532600

18

BASKET

Part# 02532600

OEM Warranty Repair Part for Ariens

Not available

02533500

19

EXHAUST PIPE EXTENSION

Part# 02533500 (Superseded to 02537500)

OEM Warranty Repair Part for Ariens

Not available

07000900

21

BLT-SERHFWH .31-18X.50 PL

Part# 07000900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

05906700

22

BLT-HEX .25-20X2.50 PL GR2

Part# 05906700 (Superseded to 05961600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07507500

23

BATTERY STRAP

Part# 07507500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

02533100

24

HOOK

Part# 02533100 (Superseded to 02738100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

06504000

25

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

06105200

26

SCR-MCH .31-18X1.50 CROVCNTRS

Part# 06105200 (Superseded to 06119100)

OEM Warranty Repair Part for Ariens

Not available

06506200

27

NUT-LK-NYL.312-18 PL

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Ariens

Not available

06701000

28

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06701000

OEM Warranty Repair Part for Ariens

Not available

07001500

29

BLT-SERHFWH .25-20X.50 PL

Part# 07001500 (Superseded to 07049300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

07002200

30

BLT-SCRHFWH .25-20X.62 PL

Part# 07002200

OEM Warranty Repair Part for Ariens

Not available

02531700

32

CLEVIS PIN

Part# 02531700

OEM Warranty Repair Part for Ariens

Not available

06700300

33

PIN-COTR .06X.50

Part# 06700300 (Superseded to 06712400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

07003600

34

BLT-CRVD-HD .31-18X1.44 YWZC

Part# 07003600

OEM Warranty Repair Part for Ariens

Not available

01101200

35

WING NUT, .312-18

Part# 01101200 (Superseded to 07534800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.89

06505600

38

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02532300

39

CLIP CONE

Part# 02532300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

06511300

40

NUT-WING W/INSERT .312 - 18

Part# 06511300 (Superseded to 06537100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02533800

41

WIRE HOOK

Part# 02533800

OEM Warranty Repair Part for Ariens

Not available

07004200

42

SCR-THUMB .31-18X.50 PL

Part# 07004200

OEM Warranty Repair Part for Ariens

Not available

06500500

43

NUT .375-24 PL

Part# 06500500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07831300

44

CAUTION DECAL

Part# 07831300 (Superseded to 07873000)

OEM Warranty Repair Part for Ariens

Not available

07831400

45

WARNING DECAL

Part# 07831400 (Superseded to 05359700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.21

07831200

46

WARNING DECAL

Part# 07831200

OEM Warranty Repair Part for Ariens

Not available
